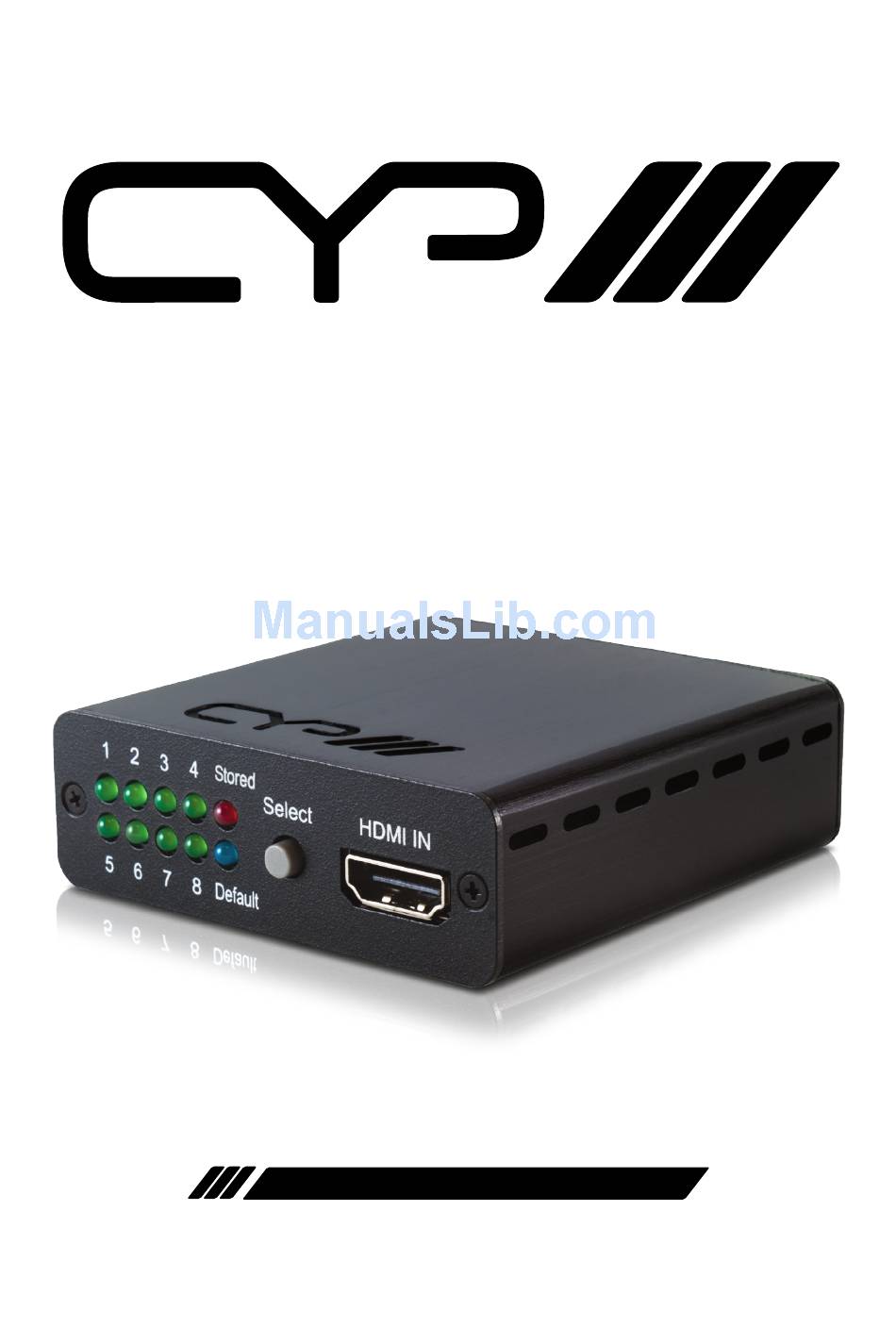

- Page 1 RE-EDID EDID Manager OPERATION MANUAL...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 Factory Default EDID ......10 7. Connection Diagram ......11 8. -
Page 6: Introduction
1. INTRODUCTION The RE-EDID is designed to allow the adjustment and manipulation of HDMI/DVI EDID information that is provided to a source device by a connected display so that it may output the correct video/audio signal. Aiming to simplify the technical complications involved in video/... -
Page 7: Features
5. FEATURES HDMI 1.3 and DVI 1.0 compliant Supports resolutions up to and including 1080p @ 60Hz, 4K x 2K @ 24/30Hz and 1920x1200 60Hz (WUXGA) Supports up to 16-bit Deep Colour HD Audio Support : LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS HD Master Audio (Sampling rates from 32 kHz to 192 kHz) Supports 8 sets of default EDID settings Supports Four different EDID modes: Read / Write / Emulate / Bypass... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel Stored Select HDMI IN 8 Default LED indicators 1~8: When in Stored or Default mode, each of these LEDs indicate a different EDID setting (1 to 8). Press the 'Select' button to switch between settings, the LED will illuminate to indicate the current selected settings. -
Page 9: Rear Panel
6.2 Rear Panel EDID HDMI OUT Bypass STATUS Emulator HDMI OUT: Connect to an HDMI equipped TV/display. USB: Connect the Mini-USB cable to an active USB device to power the system. The device can also be powered by an suitably powered HDMI input source. -
Page 10: Factory Default Edid
NOTE: Once the writing is successfully done the original EDID will be erased. It is recommended that the original EDID settings are backed-up by storing them in the RE-EDID before performing the overwrite. Caution is advised when using this function. -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray Player HDMI Input Stored Select HDMI IN 8 Default EDID HDMI OUT Bypass STATUS Emulator HDMI Output 3D TV/Display... -
Page 12: Specifications
8. SPECIFICATIONS Video Bandwidth 300Mbps/9Gbps Input ports 1×HDMI 1×USB (Power only) HDMI Input Cable 10m 1080p@12-bit), 5m (4K×2K) Distance Output port 1×HDMI HDMI Output Cable 10m 1080p@12-bit), 5m (4K×2K) Distance Resolution Up to 4K×2K@24/25/30Hz USB Power 5V/500 mA Dimensions 71mm(W)×65mm(D)×23mm(H)/Exc. Jacks 71mm(W)×71mm(D)×23mm(H)/Inc. -
Page 13: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 4k×2k Ultra HD (3840×2160/4096×2160) Consumer Electronic Control EDID Extended Display Identification Data HDMI High-Definition Multimedia Interface 1024×768... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.02...
