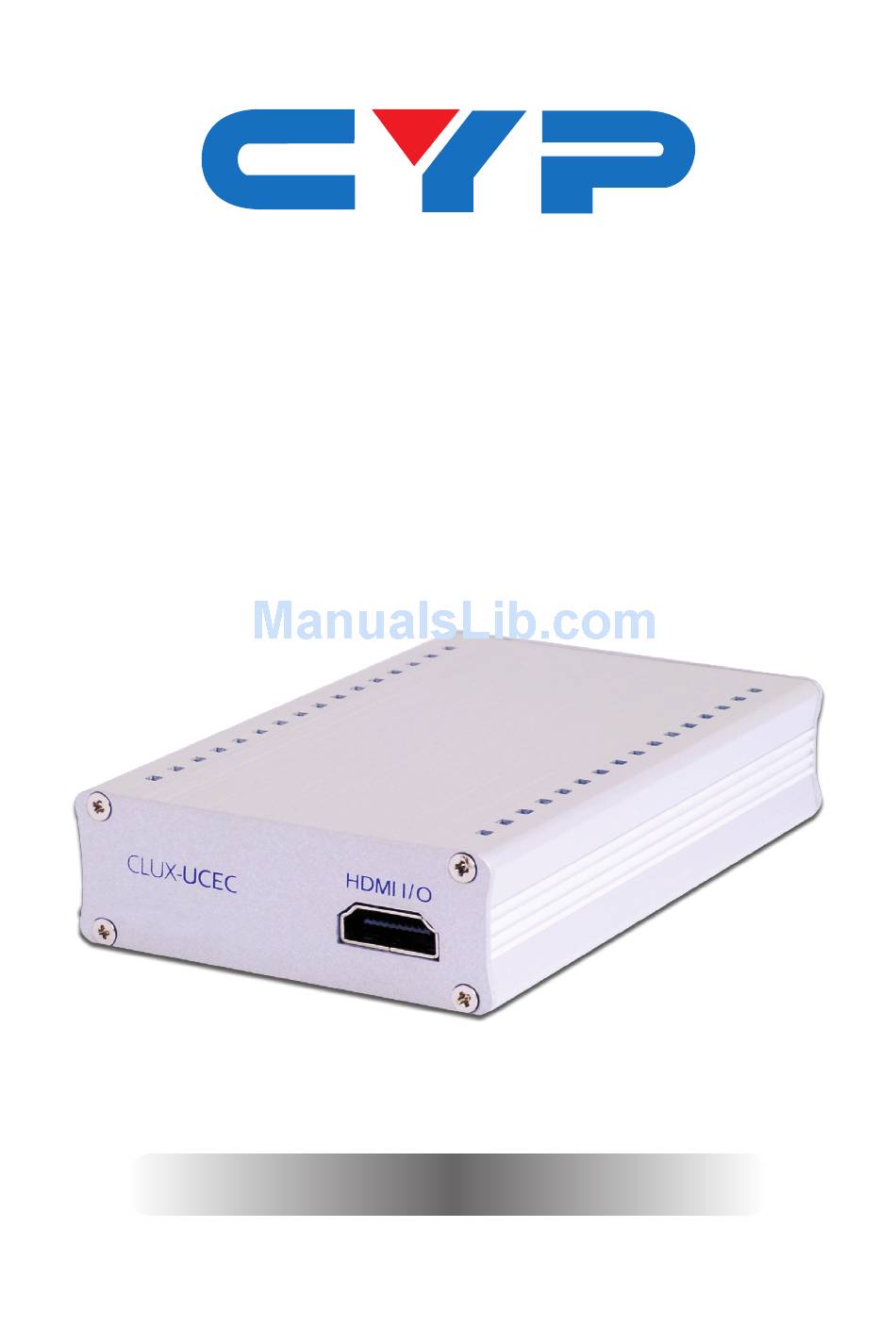

- Page 1 CLUX-UCEC HDMI CEC Controller Operation Manual Operation Manual...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel .........2 6.2 Rear Panel .........2 7. Software Installation ......3 7.1 Installing the RS-232 Driver....3 7.2 Connecting the Hardware ....3 7.3 Using the RS-232 Application ...8... -
Page 6: Introduction
1. INTRODUCTION The HDMI CEC Controller is a convenient USB device allowing users to control various HDMI devices through their PC. Both sources and displays can be controlled, either with a PC or remote control. This device connects to the PC using a mini USB port, allowing plug and play simplicity and providing power for the device itself, so you don’t have to deal with any cumbersome power cables. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel HDMI I /O CLUX-UCEC HDMI I/O: Connect to the HDMI/DVI output of your source (i.e., DVD player or set-top box) or the input ports of an HDMI/DVi equipped display using a HDMI or HDMI to DVI adaptor cable. -
Page 8: Software Installation
7. SOFTWARE INSTALLATION 7.1 Installing the RS-232 Driver Insert the provided driver CD into your CD-ROM drive, then execute the FIDIBUS file. Follow the on screen instructions to complete the installation. Note: It is not necessary to install this application if users already have existing RS-232 software installed on their computer. - Page 9 A found new hardware wizard will appear on your PC screen. Choose “No, not this time” and Click “Next” to continue. Select "Search for the best Driver in these locations" and then Click “Browse” and navigate to the “USB TO RS232 SOFTWAVE” folder on the CD-Rom.
- Page 10 Click the “Continue Anyway” button to continue. Click the “Finish” button to complete this part of the installation. Now the PC will show “Found New Hardware” for the USB Serial Port. This means the device has been detected.
- Page 11 The PC will run the Found New Hardware Wizard again, please repeat the same steps to complete the installation. Choose “No, not this time” and click the “Next” button to continue. Choose “Install from a list or specific location (Advanced)" and click the “Next”...
- Page 12 Select "Search for the best Driver in these locations" and then Click “Browse” and navigate to the “USB TO RS232 SOFTWAVE” folder on the CD-Rom. Click “Next” to continue. Click the “Finish” button and a confirmation message that confirms the completion of the installation will be displayed in the system as shown below.
-
Page 13: Using The Rs-232 Application
Step 2: Click 'START Menu' button and select Settings/Control panel/ Performance and maintenance/System/System Properties/Hardware/ Device Manager/Ports (COM & LPT)/USB Serial Port (COM) Note: The COM Port number as this will be required when using the RS- 232 application. 7.3 Using the RS-232 Application Step 1: Please insert the included CD and double click the 'CLUX_UCEC_ AP.exe.' to install. - Page 14 When the application launches (see the image below) the user can select the following features. RS232 ComPort and Baud Rate Setting: Click 'Connect' to confirm the transmission setting and connect to the CLUX-UCEC CEC Commands and Data Setting CEC Basic Command Buttons...
- Page 15 Step 2-2: To send the desired CEC command the Transmit button must be pressed in order for the command to be to executed. For example, if we are simulating a DVD player sending the “Active Source 1000” command to a TV based on CEC protocol, there are a few bytes in “Active Source 1000”...
- Page 16 Data Type: CEC commands. CEC Header: Bit 7~Bit4 is the Source's Logical address. Bit3~Bit0 is the Sink's Logical address. In this example the DVD player needs to send a command to the TV but it is not known if the TV is powered on or not, so we send the broadcast command to all devices by entering “4F”.
- Page 17 Step 2-4: Click on the EDID Read button to read EDID settings of the curently connected device and press the SAVE button to save it it to the desired location.
- Page 18 If the communications log window shows "EDID Read fail", check the connection to the device and make sure it is well connected and powered up, then press the button again to re-read the EDID again. When the EDID has been read successfully, the communications log window will show "Read complete".
- Page 19 Click on the Load File button to download the desired EDID file and click on the write button to select the EDID. If the communications log window shows "EDID Write Fail", check the connection to the device and make sure it is well connected and powered up and also check the EDID file is correct then click on the "Write"...
-
Page 20: Cec Operation Code
9. CEC OPERATION CODE VALUE OPERATION CODE 0x04 <Image View On> 0x05 <Tuner Step Increment> 0x06 <Tuner Step Decrement> 0x07 <Tuner Device Status> 0x08 <Give Tuner Device Status> 0x09 <Record On> 0x0A <Record Status> 0x0B <Record Off> 0x04 <Image View On> 0x05 <Tuner Step Increment>... - Page 21 VALUE OPERATION CODE 0x64 <Set OSD String> 0x80 <Routing Change> 0x81 <Routing Information> 0x82 <Active Source> 0x83 <Give Physical Address> 0x84 <Report Physical Address> 0x85 <Request Active Source> 0x86 <Set Stream Path> 0x87 <Device Vendor ID> 0x89 <Vendor Command> 0x8A <Vendor Remote Button Down>...
-
Page 22: Cec Logical Address
10. CEC LOGICAL ADDRESS ADDRESS DEVICE 0 (0) 1 (0x01) Recording Device 1 2 (0x02) Recording Device 2 3 (0x03) STB1 4 (0x04) DVD1 5 (0x05) Audio System 6 (0x06) STB2 7 (0x07) STB3 8 (0x08) DVD2 9 (0x09) Recording Device 3 10 (0x0A) Reserved 11 (0x0B) -
Page 23: Connection Diagram
11. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Input USB Connection PC or Laptop HDMI I / O HDMI CEC Controller HDMI I / O CLUX-UCEC HDMI Output Display... -
Page 24: Specifications
12. SPECIFICATIONS Frequency Bandwidth 2.25 Gbps (Single-link) Input Port 1×HDMI Type A (Female) Output Port 1×HDMI Type A (Female) HDMI Audio Support PCM 2/5.1/7.1CH, Dolby 5.1CH, DTS 5.1CH, Dolby Digital Plus, Dolby TrueHD & DTS-HD Master Audio Color Space Support RGB_24, YCbCr 4:4:4_24, YCbCr 4:2:2, xvYCC Deep Color Support... -
Page 25: Acronyms
13. ACRONYMS ACRONYM COMPLETE TERM Consumer Electronics Control Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Video Graphics Array WUXGA Wide Ultra Extended Graphics Array... - Page 28 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
