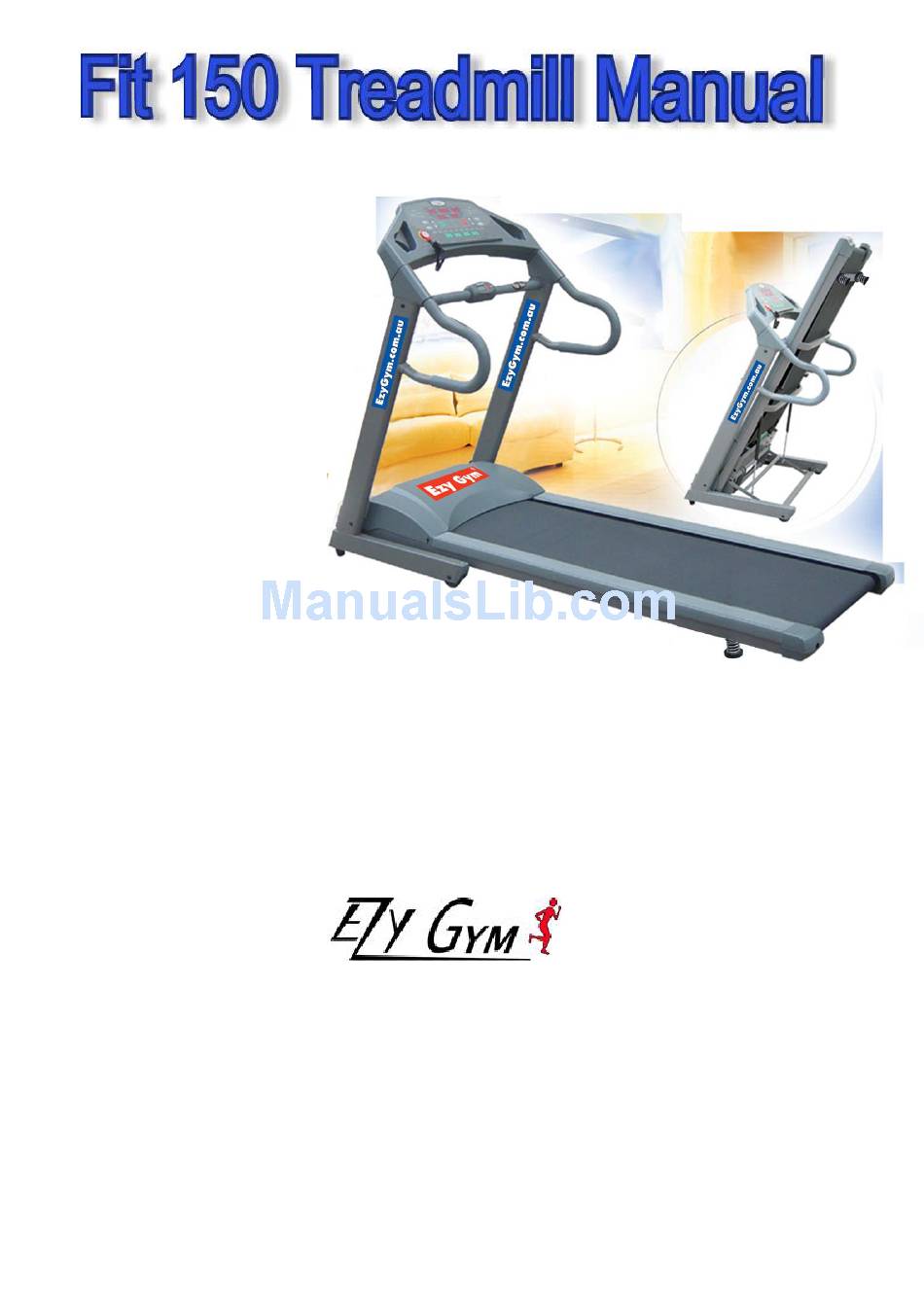

Page 1: Table Of Contents
3. Control Panel 4. Treadmill Components 5. Assembly 6. Adjusting & Testing 7. Operating Instructions 8. Important Notes 9. System connection diagram 10. Maintenance 11. Running Belt Adjustment 12. Troubleshooting EZYGYM.COM.AU Phone: 1300 EZY GYM (1300 399 496) © 2013 Easy Gym... -
Page 2: Safety
1 - Safety Attention: Carefully read this manual before using the machine. ·The treadmill is for indoor use only. Keep it free from moisture and splashes of water. Don’t put anything onto the machine. ·Keep the machine away from combustibles and flammables. ·Make sure that the four feet of the treadmill are firmly on the ground. -
Page 3: Specifications
2 - Specifications Input voltage: 220v + 10% (50Hz or 60Hz) Environment temperature for working: 0-40°C. Maximum input power: 2.5 or 3* HP Electric current is less than 5A. Speed: 1.0 – 12.0 or 16* kilometers/hour (±5%) ... -
Page 4: Treadmill Components
4 – Treadmill Components 1. Control Panel 2. Left and right column 3. Motor Cover 4. Running belt 5. Adjusting screws for running belt 6. Frame 7. Motor 8. Foldaway Airspring 9. Securing Latch... -
Page 5: Assembly
5 - Assembly 1. Installing left and right column. 3. Installing sensor meter tube. Insert left and right columns into bottom connector, Fix the tube onto the two columns with M8 screws. fix with M8 screws. (After installing control panel, then tighten it.) 2. -
Page 6: Operation Instructions
7 - Operation instructions 1. Plug into 240v power outlet. Stand on the plastic side boards beside the running belt with hands holding the handlebars. Insert the Safety Key into the Safety Key socket on the Control Panel then press the Start button. - Page 7 EZY GYM is committed to improving the quality of our product. We have added another 12 pre-set training programs to the latest Fit 150 treadmills (including pre-set inclination changes). Details of 16 pre-set programs Time min 1 P1 - km/h...
-
Page 8: Important Notes
8 – Important Notes 1. When using the treadmill for the first time, please begin with a slow speed, and raise the speed gradually. 2. The strides should suit the speed of belt. Don’t over stride. 3. Don’t use the safety key as a stop button; otherwise the treadmill may be damaged. Only in case of emergency should the safety key be used. -
Page 9: Maintenance
10 - Maintenance Before cleaning or maintenance, please pull the power cable from the wall socket (not from the treadmill) 1. Cleaning: The treadmill should be kept clean, preferably with a cover over the belt & motor cover. Clean it every one to two months. When cleaning, open the cover, clean the dust from motor and sensor and then check if the screws are loose. -
Page 10: Troubleshooting
12 – Troubleshooting Problems Possible Reason Check Panel displays nothing when switched 1.Plug & socket aren’t well connected 1.Reinsert plug 2.Panel is not connected properly 2.Reconnect Panel 3.Fuse is damaged 3.Replace the fuse The running belt stops while Panel The machine’s over-load protection has Restart the machine (press Start/Stop) working normally been triggered or carbon brushes have... -
Page 11: Easy Gym
Reference Details: Internet Banking: Full name & Suburb Branch Deposit: Last 6 digits of your phone number Credit Card: Phone: 1300 EZY GYM (1300 399 496) Cheque or Money order: Pay to: Ezy Gym Post to: Ezy Gym PO Box 306 Helensvale QLD 4212 ©...
