Summary of Contents for Ezy Gym Fit150

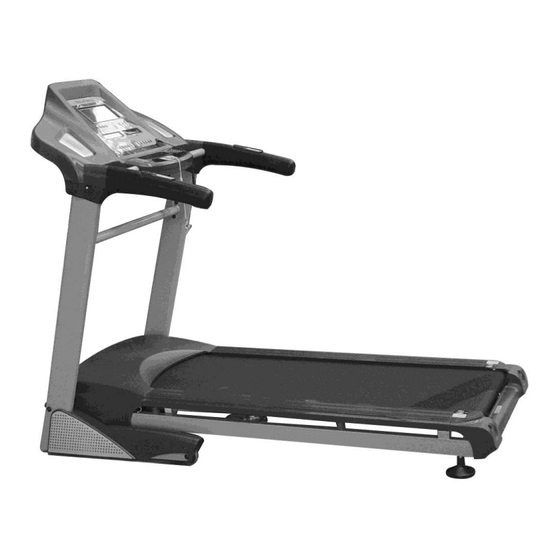

- Page 1 EzyGym Fit150 ELECTRONIC TREADMILL INSTRUCTION MANUAL Phone: 0448 399 496 0448 EZY GYM Email: help@ezygym.com.au...
-
Page 2: Table Of Contents
CONTENT 1. Safety regulations 2. Technical standard 3. Electronic display console 4. Main parts of the treadmill 5. Assembly steps 6. Adjusting & Testing 7. Operation instructions 8. Point of attention 9. Drawing of system connection 10. Maintenance 11. Some problem & Settlement... -
Page 3: Safety Regulations
1. Safety regulations: Attention: Read this manual carefully before using the machine. • The treadmill should be placed indoors, keeping it free from moisture and splashes of water. Don’t put anything onto the treadmill. • Make sure that four feet of the treadmill support the ground steadily. If necessary, pad the machine with pieces of carpet or rubber. -
Page 4: Electronic Display Console
3. Electronic meter 1. LCD Display 2. Slide touch key for incline 3. Slide touch key for speed 4. Up 5. Down 6. Volume + 7. Volume - 8. AMP on/off 9. Stop 10. Safety key 11. Start 12. Ensure 13. -
Page 5: Adjusting & Testing
5. Assembling 1. Assemble left and right pillar: 2. Assemble bottom frame cover: Make the pillar to the right positon, Put the cover to the bottom frame, and fix it with bolt M8 and waving and fix it with M4 bolt. washer. -
Page 6: Operation Instructions
7. Operation instructions: Warning: Read all instructions before using this treadmill. Never stand on the belt when turning on the power. Adjust the speed slowly when exercising to avoid sudden change of speed. When running, make sure the plastic clip is fastened on your clothing. In order to avoid creepage, pls keep the surface of the display without moisture. -
Page 7: Point Of Attention
speed incline 7. Handle pulse testing: Knead your hands before exercising, close upon the sensor of the pulse then the console display will display the pulse statistics. 8. Connecting the MP3 to the MP3 jack on the display panel. Press the AMP button, and start the MP3. You can adjust the volume by the "Volume+/-". -
Page 8: Maintenance
10. Maintenance Warning: Before cleaning, please must be cut off the power and unplug the power cord. 1. Clearance: The treadmill should keep clean; turn off the power first before cleaning. Wipe away the dust on the belt, running board, and side footboard because the frictional force will be strengthened if the dust goes into the belt, and the current will incline. -
Page 9: Some Problem & Settlement
you can adjust the screw with the attached spanner. Adjusting measures: If the running belt has shifted the right, you need to tight the screw on the right of the belt or loose the screw on the left. If the belt is inclined to the right, do the contrary. 5. - Page 10 3.PCB damage. 3. Replace PCB. 1. The display is in good condition, but the machine does The input voltage is too low, or not work. 1. Connect with the right voltage. the carbon brush is seriously 2. The display is in gear, but 2.
