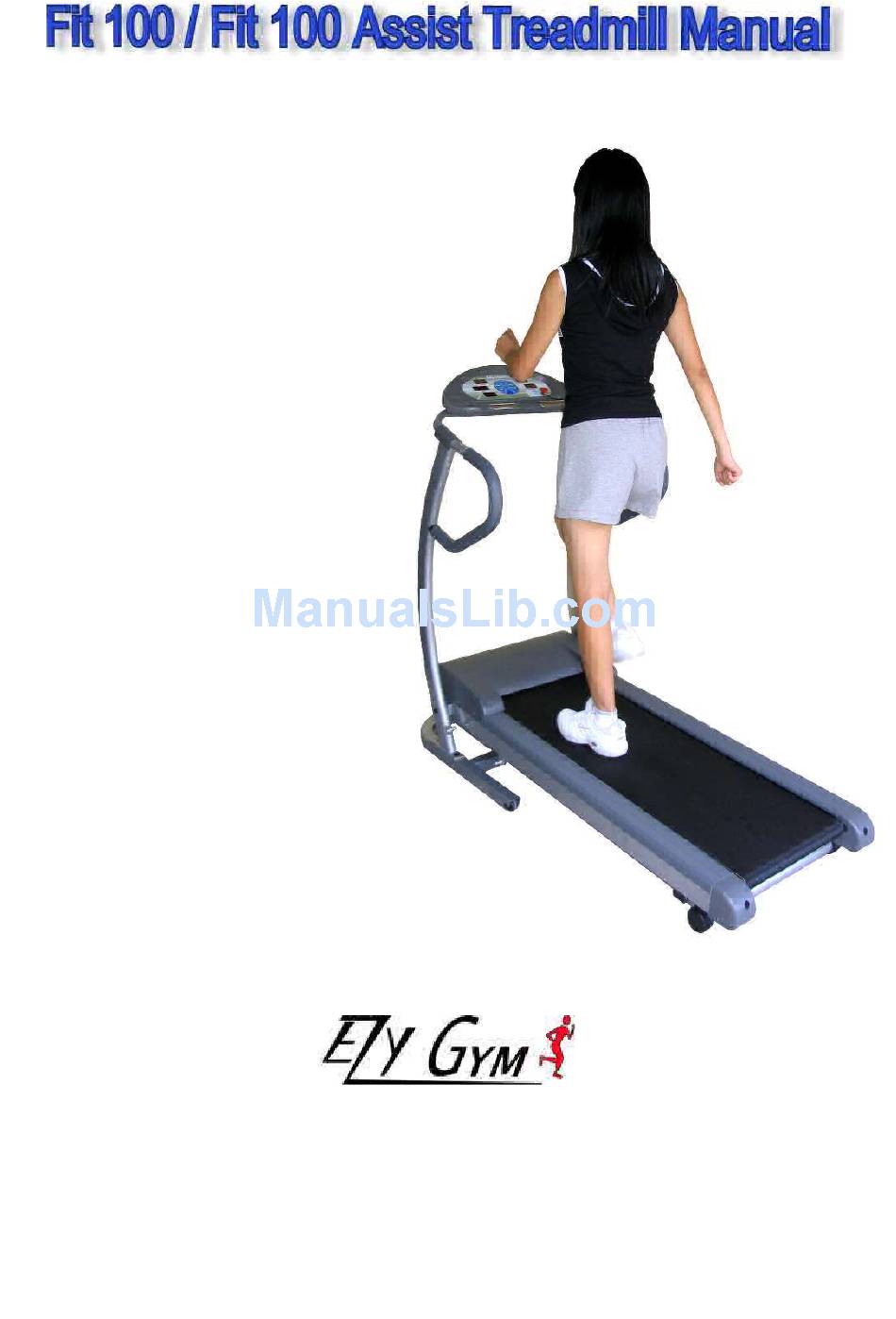

Ezy Gym Fit 100 User Manual

Hide thumbs Also See for Fit 100:
Table of Contents

Advertisement

Quick Links

Download this manual
CONTENTS:
EZYGYM.COM.AU
Phone: 1300 EZY GYM
(1300 399 496)
© 2004 Easy Gym

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fit 100 and is the answer not in the manual?

Questions and answers

Related Manuals for Ezy Gym Fit 100

Summary of Contents for Ezy Gym Fit 100

  • Page 1: Table Of Contents

    3. Control Panel 4. Treadmill Components 5. Assembly 6. Adjusting & Testing 7. Operating Instructions 8. Important Notes 9. System connection diagram 10. Maintenance 11. Running Belt Adjustment 12. Troubleshooting EZYGYM.COM.AU Phone: 1300 EZY GYM (1300 399 496) © 2004 Easy Gym...

  • Page 2: Safety

    1 - Safety Attention: Carefully read this manual before using the machine. ·The treadmill is for indoor use only. Keep it free from moisture and splashes of water. Don’t put anything onto the machine. ·Keep the machine away from combustibles and flammables. ·Make sure that the four feet of the treadmill are firmly on the ground.

  • Page 3: Specifications

    2 - Specifications Input voltage: 220v + 10% (50Hz or 60Hz) • • Environment temperature for working: 0-40°C. • Maximum input power: 1.5 HP Electric current is less than 5A. • Speed: 1.0 – 12.0 kilometers/hour (±5%) • Time limits: 00:00 - 99:99 (minute: second) •...

  • Page 4: Control Panel

    3 - Control Panel - Fit 100 (Type A) Time Display Speed Display Preset Selector Reset Speed up Distance Pulse Sensor Display Calorie Set Manual On/Off Slow Down Hand held Safety key Socket for Display Preset pulse sensor pulse sensor...
  • Page 5 3 - Control Panel - Fit 100 (Type B) Time Display Speed Display Preset Selector Reset Speed up Distance Pulse Sensor Display Calorie Set Manual On/Off Slow Down Hand held Safety key Socket for Display Preset pulse sensor pulse sensor...

  • Page 6: Treadmill Components

    Running belt Rolling Wheels Back frame Cover Manual Incline Adjustor Adjusting screw for running belt FIT 100 ASSIST: Extended Long Handle & Switch Option The Start / Stop switch function is duplicated on the Fit 100 Assist extended right handle.

  • Page 7: Assembly

    5 – Assembly 1. Insert left and right column tubes into bottom 2. Screw Control Panel onto handlebar, connect frame, fix with allan screws. signal cable and fix cable. 4. Fold the treadmill, then press one end of the 3. Fixed handlebars to the columns with allan spring onto ball head.

  • Page 8: Operating Instructions

    Only use this method of stopping in an emergency, use the Start/Stop button at all other times. USING PRESETS: You cannot stop the Fit 100 (Type A) machine during the P2 to P4 programs unless you pull the safety key.

  • Page 9: Important Notes

    8 – Important Notes 1. When using the treadmill for the first time, please begin with a slow speed, and raise the speed gradually. 2. The strides should suit the speed of belt. Don’t over stride. 3. Don’t use the safety key as a stop button; otherwise the treadmill may be damaged. Only in case of emergency should the safety key be used.

  • Page 10: Maintenance

    10 - Maintenance 1. Cleaning: The treadmill should be kept clean, preferably with a cover over the belt & motor cover. Pull the plug out first before cleaning. Clean it every one to two months. When cleaning, open the cover, clean the dust from motor and sensor and then check if the screws are loose.

  • Page 11: Troubleshooting

    12 – Troubleshooting Problems Possible Reason Check Panel displays nothing when switched 1.Plug & socket aren’t well connected 1.Reinsert plug 2.Panel is not connected properly 2.Reconnect Panel 3.Fuse is damaged 3.Replace the fuse The running belt stops while Panel The machine’s over-load protection has Restart the machine (press Start/Stop) working normally been triggered or carbon brushes have...
