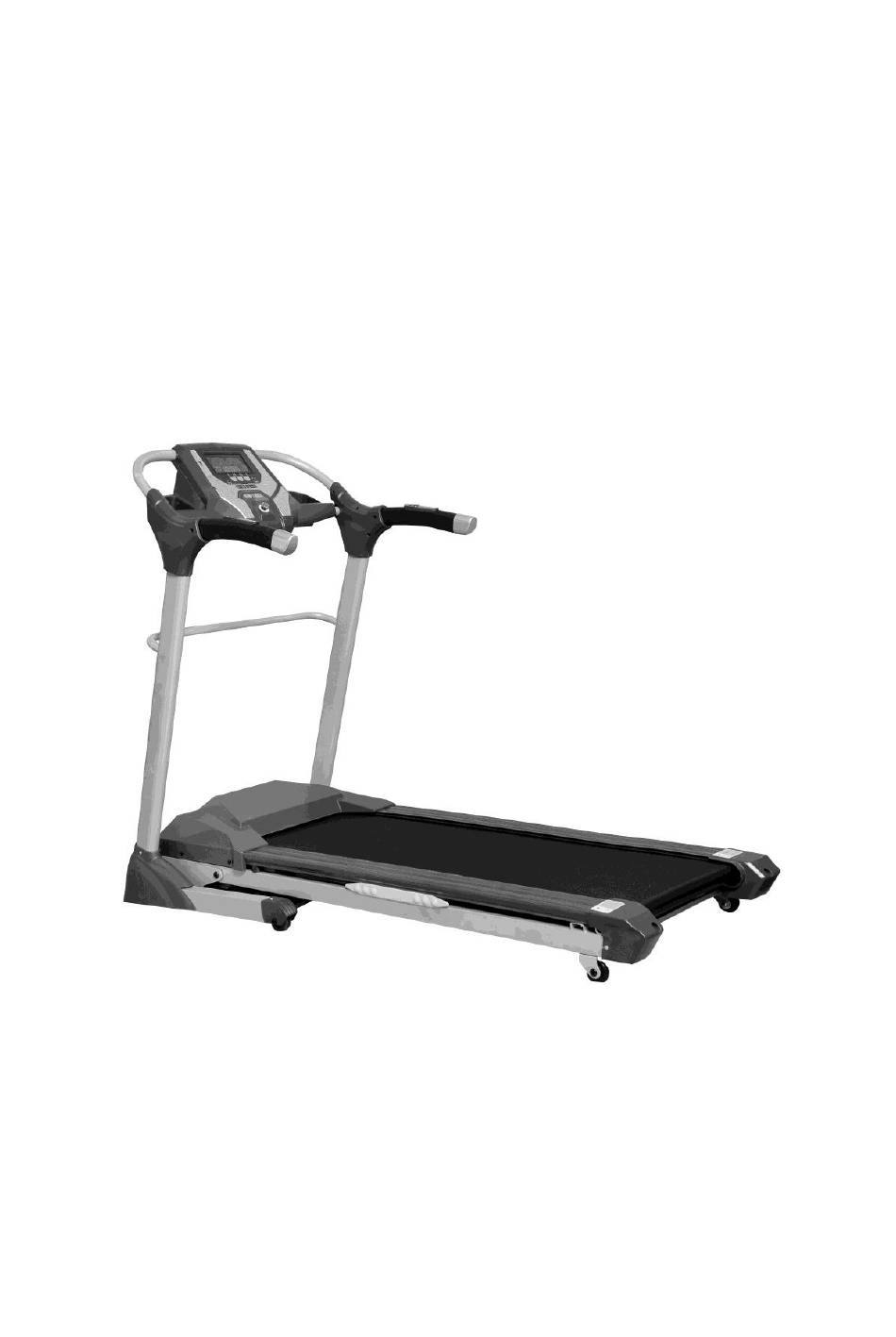

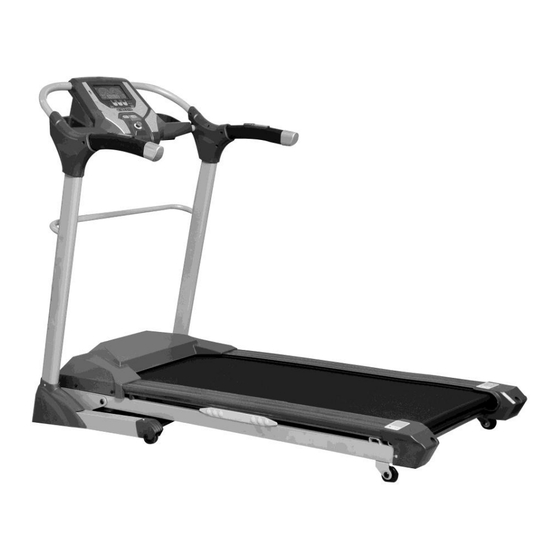

- Page 1 EZYGYM Fit100 ELECTRONIC TREADMILL INSTRUCTION MANUAL Phone: 0448 399 496 0448 EZY GYM Email: help@ezygym.com.au...
-
Page 2: Table Of Contents
CONTENT 1. Safety regulations 2. Technical standard 3. Electronic meter 4. Main parts of the treadmill 5. Assembling 6. Adjusting & testing 7. Operation instructions 8. Point of attention 9. Drawing for system connection 10. Maintenance 11. Some problems & settlement... -
Page 3: Safety Regulations
1. Safety regulations Attention: Read this manual carefully before using the machine. • The treadmill should be placed indoors, keeping it free from moisture and splashes of water. Don’t put anything onto the treadmill. • Make sure that four feet of the treadmill support the ground steadily. •... -
Page 4: Electronic Meter
3. Electronic Meter 1 . Incline choice 2. USB interface 3. LCD 4. Volume - 5. Amp ON/OFF 6. Volume + 7. MP3 interface 8. Speed choice 9. Program 10. Incline ↑ 11. Incline ↓ 12. Start 13. Safety key 14. -
Page 5: Assembling
5. Assembling 1. Column: put the column cover 2. Column cover fastening: fasten onto the columns, connect the the column cover with the M4 bolts. sensor line, then insert the left and right columns into the end connections and fasten with M8 bolts and washer. -
Page 6: Adjusting & Testing
6. Adjusting and testing Warning: Wrong connecting of the machine with the ground is dangerous of tip-and-run, adjusting before connecting to the power, should be check voltage, ground-connect is in good condition. 1. After assembling, before turning on the power, must check: proper voltage; the plug is well ground-connected, the running belt moved smoothly and no noise. -
Page 7: Point Of Attention
8.Points for attention 1. When using the treadmill for the first time, please begin with a slow speed, and raise the speed gradually. 2. The paces should be match the speed of the running belt. Treading the machine deliberately is forbidden. 3. - Page 8 cord. 1. Clearance: The treadmill should keep clean; turn off the power first before cleaning. Wipe away the dust on the belt, running board, and side footboard because the frictional force will be strengthened if the dust goes into the belt, and the current will incline. If continuous running like this, the belt or running board is liable to be damaged.
- Page 9 11.Some problems & settlement Problems Possible Reason Measures 1. Insert plug again. 1. Plug isn’t well connected. 2. Connect the cable of the The meter displays nothing 2. Meter isn’t well connected. meter again. when the switch turned on 3. Fuse is damaged. 3.
