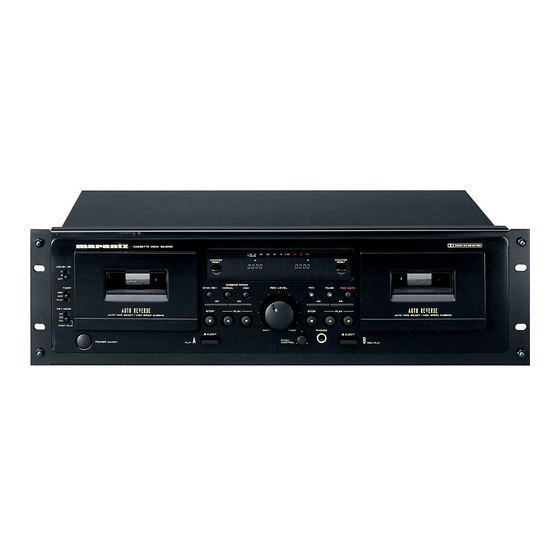

  • Page 1 Model PMD505 User Guide Cassette Deck...
  • Page 2 2. Do not open the top cover In order to prevent electric shock, do not open the top cover. If problems occur, contact your MARANTZ DEALER. 3. Do not place anything inside Do not place metal objects or spill liquid inside the cassette tape deck.
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of. Read Instructions – All the safety and operating instructions should be read before the product is operated. Retain Instructions –...
  • Page 4 Servicing – Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: When the power-supply cord or plug is damaged.
  • Page 5 NOTE ON USE / OBSERVATIONS RELATIVES A L’UTILISATION / NOTAS SOBRE EL USO ¼ Avoid high temperatures Allow for sufficient heat dispersion when installed on a rack. ¼ Eviter des températures élevées Tenir compte d’une dispersion de chaleur suffisante lors de l’installation sur une étagère.
  • Page 6: Table Of Contents

    Reset, Direction, Deck A, Deck B. However, the remote-controllable functions are dependednt on the type of remote control used. If this Marantz product is to be remote-controlled by a Marantz Learning Remote Control, please refer to the Command Code Table of page 8.
  • Page 7: Names And Functions Of Parts

    NAMES AND FUNCTIONS OF PARTS r !5 CASSETTE DECK PMD505 DOLBY NR TIMER PLAY AUTO REVERSE REV. MODE AUTO TAPE SELECT/HIGH SPEED DUBBING CCONT. PLAY POWER ON/OFF Power Switch (POWER) Press once to turn the power to deck on, and once more to turn the power off.
  • Page 8: Cassette Tapes

    Display Indicators with an encircled number light up when the corresponding button is pressed. dB – SYNC REV PLAY PITCH CONTROL Knob Used to vary the pitch (key of music) during playback of a cassette. (Only the pitch of Deck A can be varied.) Turn the PITCH CONTROL clockwise to heighten the pitch by increasing the tape transport speed.
  • Page 9: Playback

    ¼ Set the Function Selector or Tape Monitor switch on your amplifier or receiver to TAPE or Tape monitor position. ¼ The numbers in the illustration below depict the order in which operation steps are carried out. CASSETTE DECK PMD505 DOLBY NR...
  • Page 10: Recording

    ¼ Switch on your amplifier or receiver and the source component. ¼ Set the Function Selector and the REC Selector on your amplifier or receiver to the source to record, with Tape Monitor switch (it available) set to monitor CASSETTE DECK PMD505 DOLBY NR...
  • Page 11: Dubbing

    DUBBING (from deck A to deck B) ¼ Switch on the amplifier or receiver. ¼ Set the Function Selector or Tape Monitor switch on your amplifier or receiver to TAPE or Tape monitor position. CASSETTE DECK PMD505 DOLBY NR TIMER...
  • Page 12: Synchro Recording Procedure

    CD players with edit function. Refer to the instruction manual of your CD player.) ¼ When the MARANTZ PMD371 CD changer is used, it is possible to set the REV. MODE switch to “ both A and B sides continuously.) ¼...
  • Page 13: Maintenance

    MAINTENANCE í Head cleaning After long usage, tape coating or dust may adhere to the heads, causing deterioration of sound. Therefore, the parts depicted in the illustration should be cleaned reguraly. Use a cotton swab moistened with a tape head cleaning solution (such as alcohol). Note: 1.
  • Page 14: Remote Control

    REMOTE CONTROL DECK RESET REC MUTE RC455SD A/B button Mechanism select buttons (DECK A/B): Press to select the deck mechanism, Deck A or Deck B, to be controlled. (REC PAUSE) button: Press this button to enter the recording pause mode from the recording or recording mute mode.
  • Page 15: Troubleshooting

    3. Are the speakers and amplifier/receiver functioning correctly? If the tape deck still does not function properly, check the symptom against the list below. If the symptom does not correspond to the check list, please contact your MARANTZ dealer. Problem Tape does not run.
  • Page 16 Accidents, acts of nature, misuse, abuse, neglect or unauthorized product modification. c) Improper installation, removal or maintenance, or failure to follow supplied instruction. d) Repair or attempted repair by a non Marantz authorized agent. e) Any shipment of the product (claims must be presented to the carrier).
