Marantz PMD511 Service Manual

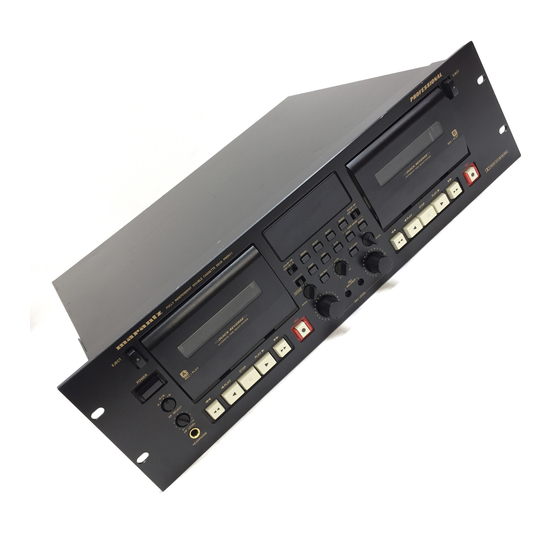

Fully independent double cassette deck
Hide thumbs Also See for PMD511:

Advertisement

Table of Contents

Service
Manual
SECTION
1. TECHNICAL SPECIFICATIONS ................................................................................................................ 1
2. BLOCK DIAGRAM ...................................................................................................................................... 2
3. WIRING DIAGRAM AND ADJUSTMENT POINTS .................................................................................... 3
4. SCHEMATIC DIAGRAM AND PARTS LOCATION (Pattern Side) ............................................................. 5
5. EXPLODED VIEW AND PARTS LIST ...................................................................................................... 15
6. DISASSEMBLY ........................................................................................................................................ 20
7. TEST EQUIPMENT REQUIRED FOR SERVICING ................................................................................. 21
8. ELECTRICAL ADJUSTMENTS ................................................................................................................ 22
9. MICROPROCESSOR AND IC DATA ....................................................................................................... 27
10. ELECTRICAL PARTS LIST ...................................................................................................................... 28
11. XLR511PMD Kit ........................................................................................................................................ 37
Please use this service manual with referring to the user guide (D.F.U) without fail.
Printed in Japan
Fully Independent Double Cassette Deck
FULLY INDEPENDENT DOUBLE CASETTE DECK PMD511
EJECT
POWER
OFF B C
A+B
A
B
CASCADE
/CD SYNC
HP SELECT
PITCH
PLAY
STOP
PLAY
REC
HP LEVEL
2
HEADPHONE

TABLE OF CONTENTS

model PMD511
L
L
-
20
15
10
6
3
0 3 +6dB
-
20
15
10
6
3
0 3 +6dB
R
R
DOLBY NR
DOLBY NR
MEMO
RESET
RESET
MEMO
OFF B C
TAPE SPEED
CONT.
QMS
A+B
HIGH
NORM
MIC MIX
LEVEL
ALC (LINE)
PITCH
5
0
10
5
PLAY
STOP
PLAY
4
6
4
6
3
7
3
7
REC
BALANCE
8
2
8
1
9
1
9
0
10
0
10
PMD511 /
PMD511 U,F
EJECT
REC
DOLBY B C NR HX PRO
PAGE
479T855010 AO
3120 785 22230
First lssue 1999.11
N1B
