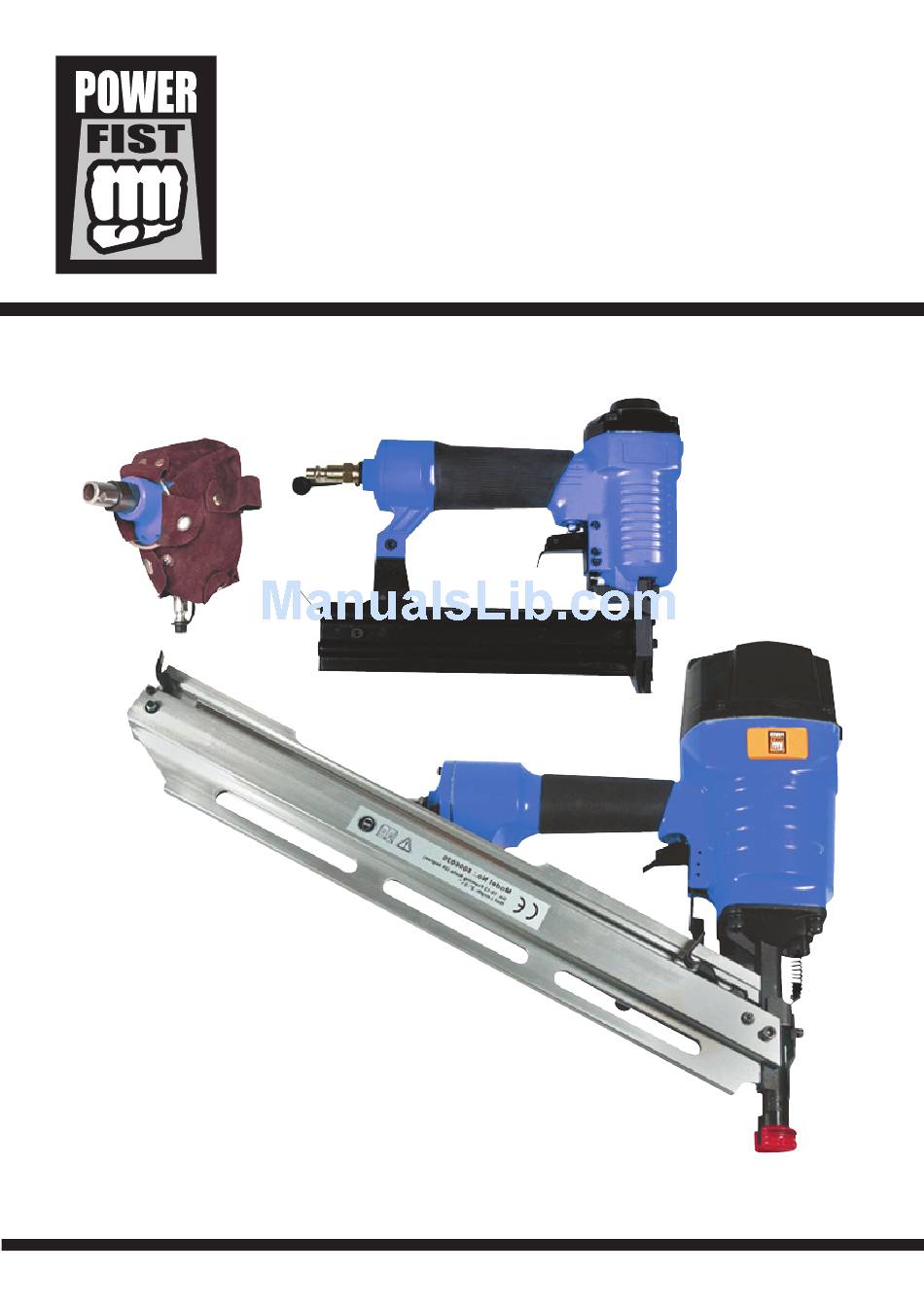

  • Page 1 8089245 V 1.2 Clipped Head Framing Nailer OWNER'S MANUAL Please read and understand all instructions before use. Retain this manual for future reference.
  • Page 2: Specifications

    8089245 V 1.2 Clipped Head Framing Nailer SPECIFICATIONS Air Inlet 1.4" NPT Max. Pressure 120 PSI Operating Pressure 80 to 110 PSI Nail Sizes 2" to 3-1/2" Magazine Capacity 80 pcs. Recommended Lubricant Air Tool Oil Fastener size 2.87-3.33 mm Air Consumption 0.5 L per fire...
  • Page 3 OPERATING INSTRUCTION DESCRIPTION Model 8089245 drives clipped head framing nails from 50mm to 90mm length. Die cast aluminum body provide more power to easily drive nails into hard wood. Comfortable grip rubber handle for improving control. FEATURES 360° exhaust port can be adjusted to any direction . Economical air consumption with low noise. It is ideal for construction framing, pallet and crate assembly, deck construction, roof decks, fencing, sidewall sheathing and etc.
  • Page 4: Troubleshooting

    8089245 V 1.2 WARNING: Never operate tool unless safety nose is contact with work piece. Do not operate tool without fasteners or damage to tool may result. Never fire fasteners into air because fasteners may injury operator or others and damage to tool may result.
  • Page 5 8089245 V 1.2 SYMPTOM PROBLEM SOLUTION 1. O-ring in trigger valve are damage. 1. Check and replace O-ring. Air leak near 2. Trigger valve head are damage. 2. Check and replace. top of tool or in 3. Trigger valve stem, seal or O-ring are 3.
  • Page 6: Parts Breakdown

    8089245 V 1.2 DIAGRAM PARTS BREAKDOWN Part Part Part Part Description Description Description Description Bolt M8 x 30 Cylinder Washer Bolt M5 x 8 Spring Pin Air Deflector Gun Body Flat Washer Pusher Deflector Rubber Rubber Washer Adj. Nut Pin 3 x 20...
