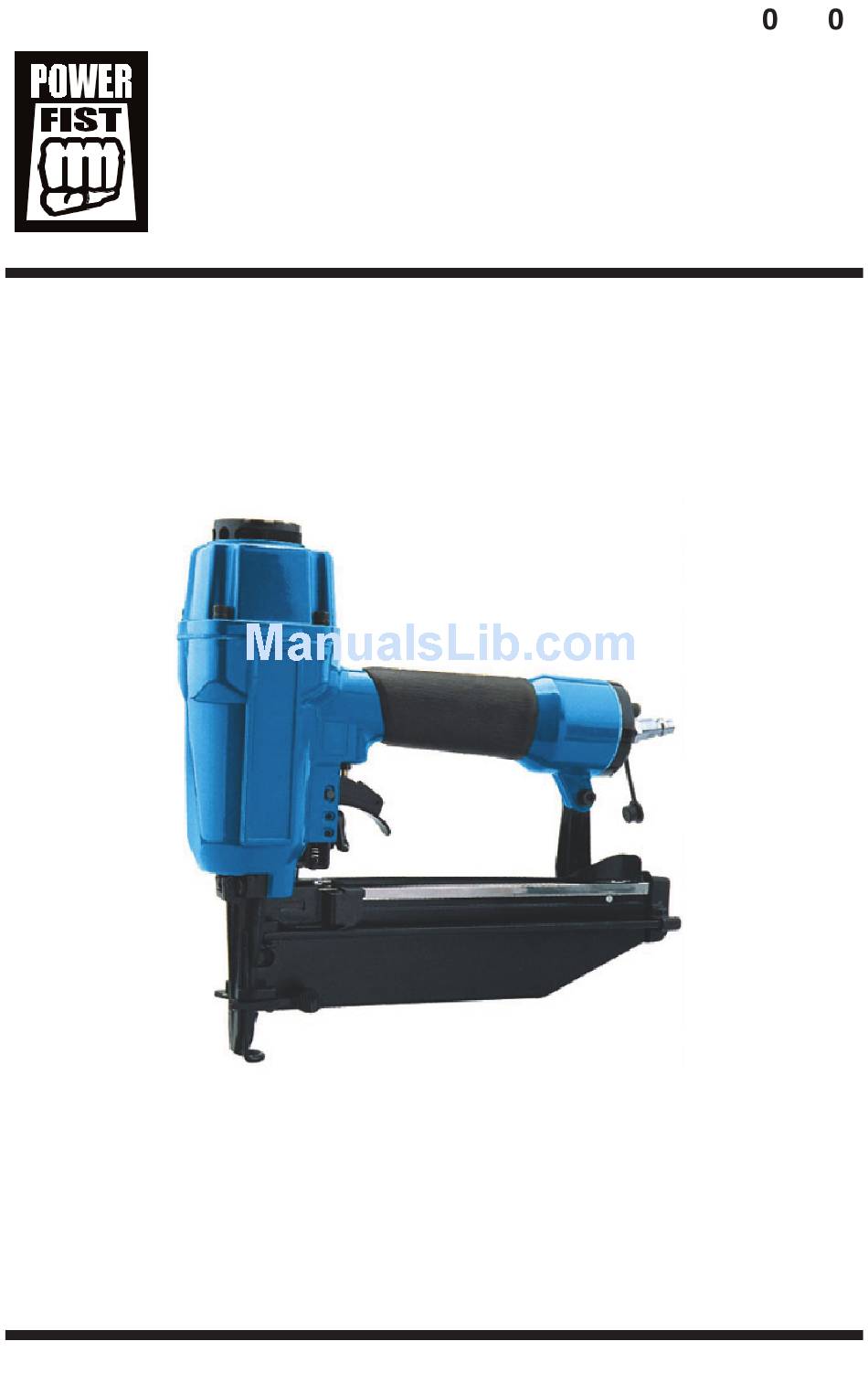

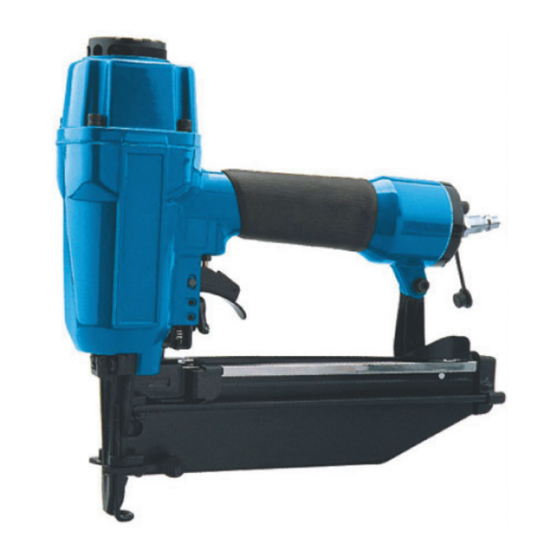

- Page 1 8 524 9 2-1/2" Air Finishing Nailer Owner’s Manual Please read all safety and operating instructions before using this product. Retain this manual for future reference.
-
Page 2: Technical Data
Technical Data • Capacity: 100 nails • Nail length: 1-1/4" to 2-1/2" • Fastener size: 16 Gauge • Operating pressure: 60 to 100 PSI • Air inlet: 1/4" NPT • Max pressure: 120 PSI Important Safety Rules 1. KEEP CHILDREN AWAY. All children and visitors should be kept away from the work area. -
Page 3: Operating Instructions
WORK PIECE. It may split allowing fastener to fly free or ricochet, causing personal injury. 12. DO NOT DRIVE FASTENER ON TOP OF NAILED FASTENER, as the fastener can ricochet causing personal injury. 13. NEVER USE A TOOL that is leaking air, has missing or damaged parts or requires repair. -
Page 4: Maintenance
Loading Fasteners WARNING: Always disconnect the tool from the compressed air before loading. When loading the tool always point the tool away from yourself and others. Make sure that you are not holding the tool with trigger depressed while loading the tool. 1. -
Page 5: Troubleshooting
Troubleshooting The following form lists the common operating system with problem and solutions. Please read the form carefully and follow it. WARNING: If any of the following symptoms appears during your operating, stop using the tool immediately, or serious personal injury could result. - Page 6 Symptom Problem Solution 6. Tool skips a. Worn bumper or a. Repalce bumper or fasteners damaged spring pusher spring b. Dirt in front plate b. Clean drive channel on front plate c. Dirt or damage prevents c. Magazine needs to be fasteners from moving cleaned freely in magazine...
-
Page 7: Parts List
Parts List... - Page 8 Description Description Description Bolt 31 Switch spring 63 Bolt Air deflector 32 O-ring 64 Release latch Bumper washer 33 Switch valve stem 65 Bolt Bolt 34 O-ring 66 Snap retainer Spring washer 35 Switch valve seat 67 Pin Cylinder cover 36 Pin 68 Bolt O-ring...
Need help?
Do you have a question about the 8052409 and is the answer not in the manual?
Questions and answers
Nail driver will not retract after shooting a nail
The Power Fist nail driver model 8052409 may not retract after shooting a nail due to a worn bumper or air pressure being too high. Replace the bumper or adjust the air pressure as needed.
