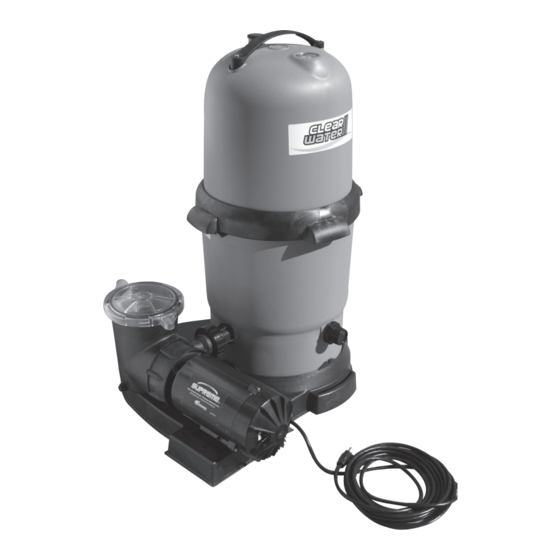

Waterway Clear Water II Owner's Manual

CLEANING INSTRUCTIONS
If the pressure gauge on your filter reads 5 PSI or higher than the
original starting pressure, the filter needs to be cleaned. The ClearWater
II Cartridge Filter System features the exclusive 1-2-3 Safety Locking
System to ensure safe and simple filter maintenance.
1. Turn off pump. WARNING: Never attempt to clean filter while
pump is running. This is a pressurized vessel. It could cause
severe injury or harm to your person. Plug skimmer and pool
return lines or drain pool water level to below pool return line.
2. Slowly open the air release knob on top of filter until the pressure
gauge reads "0". Open drain cap at bottom of filter and allow water
to flow.
LIMITED WARRANTY
Waterway Plastics manufactures its products and equipment in accordance
with very high standards of workmanship. We use the best materials available
and maintain the highest quality procedures practical in the industry. In
accordance, Waterway warrantys its products as follows:
All plastics parts such as jets, valves, skimmers,manifolds, suctions, lights,
and other plastic components manufactured by Waterway will be replaced or
repaired, if the defects are determined by Waterway to be the responsibility of
Waterway Plastics, for a period of three years from the date of installation. The
warranty does not cover filter cartridges, D.E. grids, O-rings, pressure gauges,
pump seals, light bulbs or any parts not manufactured by Waterway. Warranty
applies to OEM's and Distributors of Waterway Products.
The Supreme and Hi-Flo Pumps will receive limited warranty from any defect
in material or workmanship for one year from the date of manufacture. This
includes the motor but not the motor seal.
All thermoplastic molded filter bodies and rotational molded sand filter bodies
have a warranty of ten years, warranted on a pro-rata life basis.If a defect
becomes apparent during the first year, the body will be exchanged for a
new body if the defects are determined by Waterway to be the responsibility
of Waterway Plastics. If a defect becomes apparent after the first year from
the date of manufacture which, in the opinion of Waterway, will require
2200 East Sturgis Road, Oxnard, CA 93030 • Ph. (805) 981-0262 • Fax (805) 981-9403
www.waterwayplastics.com • waterway@waterwayplastics.com
© Copyright 2008 Waterway Plastics
3. Press the yellow safety latch on the underside of the locking nut and
turn the nut counterclockwise to remove the lid. Rinse the cartridge
element with a garden hose. There is no need to remove the element
from the filter.
4. Reassemble lid and follow start-up procedures from original
instructions.
My Original Starting Pressure is ________ PSI (Pounds per
Square Inch). I should clean the filter at ________ PSI.
replacement, the body will be exchanged for a new tank on an adjusted
service pro-rata life basis. Charges to the owner, on the pro-rata life basis, will
be determined by the actual number of months installed beginning with the
date of installation.
Products that fail or become defective during the warranty period, except as a
result of improper installation, bad water chemistry, accidents or negligence
on behalf of the owner, freezing, earthquakes, fire floods, or other acts of
nature, shall be repaired or replaced at Waterway's option without charge
to the owner. This process will be completed within 90 days of receipt of the
defective product barring delays caused by the acquisition of component parts
not manufactured at our facility.
To obtain warranty replacements or repair, defective products should be
returned (transportation paid) to the place of purchase, or to Waterway. It
should include a description of the defect and the circumstances surrounding
the incident or problem.
Waterway shall not be responsible for cartage, removal and/or reinstallation
labor, or any other such costs incurred in obtaining warranty replacements.
Warranty applies to OEM's and Distributors of Waterway Products.
This warranty gives you specific legal rights. You may also have other rights
which very from state to state.
810-0074.0908
Cartridge Filter
DELUXE SYSTEM
OWNER'S MANUAL
