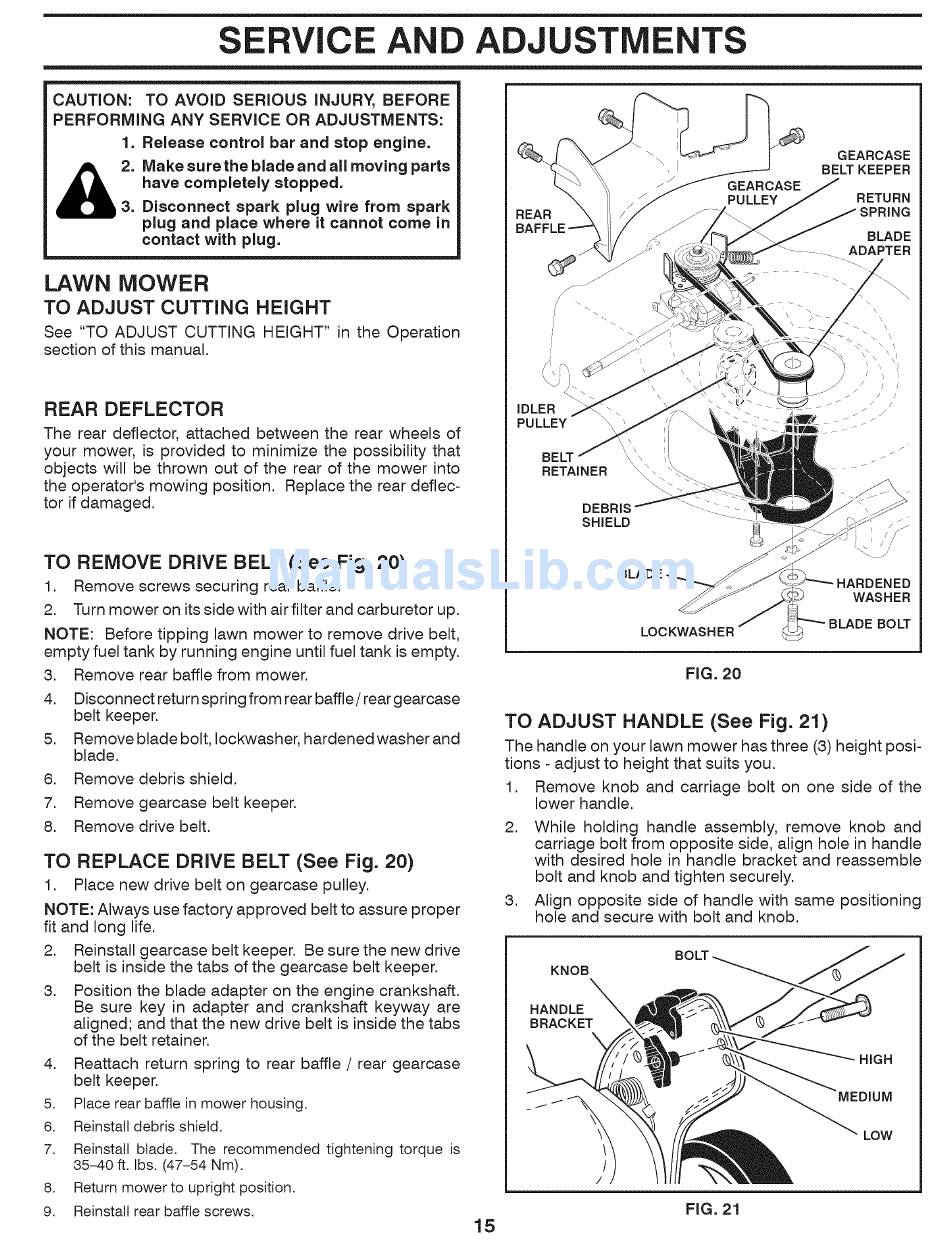

SERVICE AND ADJUSTMENTS
CAUTION: TO AVOID SERIOUS iNJURY, BEFORE
PERFORMING ANY SERVICE OR ADJUSTMENTS:
1. Release control bar and stop engine.
2. Make sure the blade and all moving parts
have completely stopped.
3. Disconnect spark plug wire from spark
plug and place where it cannot come in
contact with plug.
LAWN MOWER
TO ADJUST CUTTING HEIGHT
See "TO ADJUST CUTTING HEIGHT" in the Operation
section of this manual.
REAR DEFLECTOR
The rear deflector, attached between the rear wheels of
your mower, is provided to minimize the possibility that
objects will be thrown out of the rear of the mower into
the operator's mowing position. Replace the rear deflec-
tor if damaged.
TO REMOVE DRIVE BELT (See Fig. 20)
1. Remove screws securing rear baffle.
2. Turn mower on its side with air filter and carburetor up.
NOTE: Before tipping lawn mower to remove drive belt,
empty fuel tank by running engine until fuel tank is empty.
3. Remove rear baffle from mower.
4. Disconnect return spring from rear baffle/rear gearcase
belt keeper.
5. Remove blade bolt, Iockwasher, hardened washer and
blade.
6. Remove debris shield.
7. Remove gearcase belt keeper.
8. Remove drive belt.
TO REPLACE DRIVE BELT (See Fig. 20)
1. Place new drive belt on gearcase pulley.
NOTE: Always use factory approved belt to assure proper
fit and long life.
2. Reinstall gearcase belt keeper. Be sure the new drive
belt is inside the tabs of the gearcase belt keeper.
3. Position the blade adapter on the engine crankshaft.
Be sure key in adapter and crankshaft keyway are
aligned; and that the new drive belt is inside the tabs
of the belt retainer.
4.
5.
6.
7.
8.
9.
Reattach return spring to rear baffle / rear gearcase
belt keeper.
Place rear baffle in mower housing.
Reinstall debris shield.
Reinstall blade. The recommended tightening torque is
35-40 ft. Ibs. (47-54 Nm).
Return mower to upright position.
Reinstall rear baffle screws.
15
REAR
GEARCASE
BELT KEEPER
RETURN
BLADE
ADAPTER
\
\
IDLER
PULLEY
RETAINER
DEBRIS
SHIELD
LOCKWASHER
FiG. 20
WASHER
BOLT
TO ADJUST HANDLE (See Fig. 21)
The handle on your lawn mower has three (3) height posi-
tions - adjust to height that suits you.
1. Remove knob and carriage bolt on one side of the
lower handle.
2. While holding handle assembly, remove knob and
carriage bolt from opposite side, align hole in handle
with desired hole in handle bracket and reassemble
bolt and knob and tighten securely.
3. Align opposite side of handle with same positioning
hole and secure with bolt and knob.
KNOB
BOLT
HANDLE
BRACKET
HIGH
/
/
LOW
FIG. 21
