Quick Start Guide
Advanced H.2 64, Fu ll D1 480fps Re corde r
VMAX D1
Model : VMAX D1 8/16
VMAX D1
1080P 1,5 Real Time Hexaplex USB
VMAX
VMAX D1 Quick G uide
Major Features
Advanced H.264 Linux Embedded DVR
Hexaplex - Live, Playback, Recording, Backup, Network, Configuration
Full HD Output for Playback & Live Display
240fps at D1 for 8Ch, 480fps at D1 for 16Ch
POS Support
HDMI, Composite, & VGA Support
Looping Output
NAS (Network Attached Storage) Backup
Smart Web Viewer for Live, Playback, Backup, Configuraton
Mobile Application for Blackberry, iPhone, Android
RAID 1,5: Rack Mount Available
D1
VMAX D1 Quick Guide

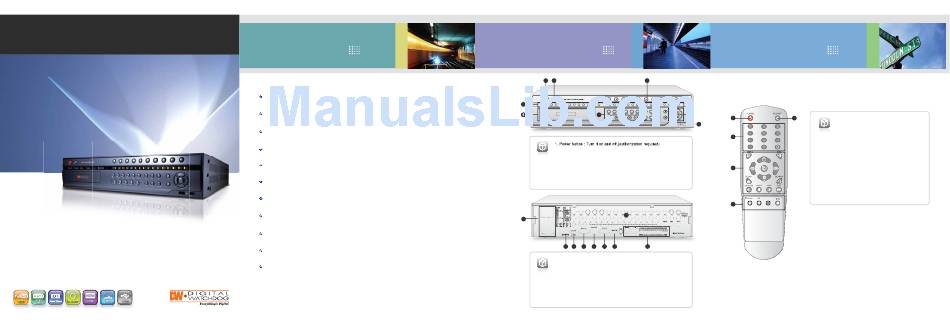

Front & Rear View
1 2
Front
4
5 6
1. Power button : Turn it on and off.(authorization required)
2. Lock button : Lock your system(authorization required)
3. Channel Butt on: Select Channels
4. Status indication : indicate each functional status
5. CD Drive : Door for cd-rom
6. Functional buttons : Setup, Search, Backup, Record, etc.
7. Direction button & select key : Use instead of mouse control
8. USB connection : use for mouse or Backup
Rear 2
1
3 4 5 6 7 8
1. Power supply
2. Camera input, loop output, Audio input , Spot output
3. USB connection (USB 2.0 / e-SATA)
4. Configuration Dip switch (NTSC/PAL, monitor out)
5. RS232C for console output
6. Ethernet port
7. VGA output
8. HDMI output for Full HD display
9. Audio out / TV out / Sensor & Relay output
VMAX D1
VMAX D1 Quick Guide
Remote Control
3
7
1 5
8
1 2 3
4 5 6
2
7 8 9
0
3
4
9
VMAX D1
1. Power Button
2. Number Buttons
3. System Operation and Setup
-Menu : Enter Menu
-ESC : Exit to Previous Mode
-Search : Search Recorded Image
-Select : Select Category or Execute Sequence Mode
-Copy : Copy Recorded Videos
-Direction : Move within the Setup Menu
4. Up & Down : Scroll Up & Down through Log Page
PTZ : Shift to PTZ Camera Control Mode
5. Record Button
