DW VMAX A1 -VAONE 41T Quick Start Manual

All-in-One HD DVR records 1080p HD Analog, TVI, CVI and all analog to 960H
4 Channel Models 8 Channel Models 16 Channel Models
DW-VAONE 41T DW-VAONE 81T DW-VAONE 161T
DW-VAONE 42T DW-VAONE 82T DW-VAONE 162T
DW-VAONE 43T DW-VAONE 83T DW-VAONE 163T
DW-VAONE 44T DW-VAONE 84T DW-VAONE 164T
DW-VAONE 46T DW-VAONE 86T DW-VAONE 166T
DW-VAONE 48T DW-VAONE 88T DW-VAONE 168T
WHAT'S IN THE BOX
12V DC Adaptor
Quick Start Guide 1 Set
(4- Channel Models)
12V DC Adaptor and
IR Remote Control
1 Set Power Cable (8- and
(Optional)
16- Channel Models)
Screws (Top Cover)
USB Mouse 1 Set
– 4pcs
NOTE: Download All Your Support Materials and Tools in One Place
1. Go to: http://www.digital-watchdog.com/support-download/
2. Search your product by entering the part number in the 'Search by Product' search bar. Results for
applicable part numbers will populate automatically based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick Start Guides (QSG), software and
firmware will appear in the results.
Attention: This document is intended to serve as a quick reference page for initial set-up.
It is recommended that the user read the entire instruction manual for complete and proper DVR usage.
Tel: 866-446-3595 / 813-888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday
Quick Start Guide
NOTE: VMAX A1 is a Universal HD DVR that Records all HD Analog Formats and All Analog to 960H
(1080p, 3MP and 5MP via Coax) resolutions.

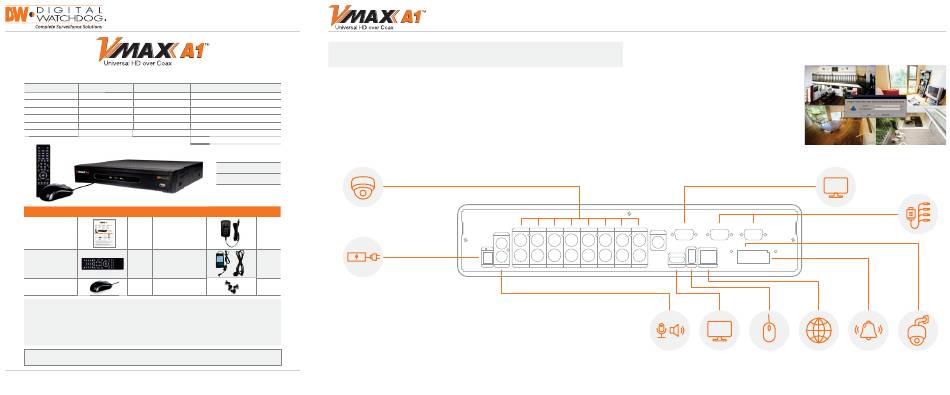

Step 1 – CONNECTING THE DVR
16-Channel with DW-VLOOP Support
DW-VAONE 162TL 1. Mount and install all necessary cameras and external devices. Refer to their individual manuals for
DW-VAONE 163TL additional information.
DW-VAONE 164TL
2. Place the DVR in its final position. See installation tips below.
DW-VAONE 166TL
DW-VAONE 168TL
3. Connect all necessary cables to the DVR
DW-VAONE 1612TL
4. Once all additional devices have been properly connected to the DVR, connect the DVR to
DW-VAONE 1616TL DW-VAON
an appropriate power supply. The DVR will boot up automatically.
Username: admin
Password: no password
1 Set
1 Set
1 Set

SAFETY TIPS

1. Make sure the cameras and the monitors are properly connected to the DVR.
2. The DVR should be placed in a dust and moisture free environment. It must never be directly exposed
to sunlight. Server room temperature is highly recommended to reduce the chance of overheating,
which may cause the DVR to become unstable.
3. During the boot up process, the DVR should not be interrupted by pressing any buttons on the mouse.
Do not unplug the power adapter or turn the DVR off during the boot up process.
digital-watchdog.com
4. A UPS (Uninterrupted Power Supply) is highly recommended to prevent damage to the DVR during a
power outage.
All-in-One DVR
ANALOG CAMERA
UNIVERSAL HD CAMERA
CH1 CH2 CH3
AUDIO IN
12V 5Amax
POWER SUPPLY
(MAX 12V)
POWER AUDIO OUT CH9 CH10 CH11 CH12
Back Panel Ports may differ according to model
Step 2 – POWERING UP THE DVR
1. When the DVR boots up, it will be in protective
mode. This means you will not be able to access
the DVR's setup menu until you enter the proper
username and password.
2. To unlock the DVR, right-click anywhere on the
screen. The login screen will appear. (Default
Username / Password: admin / no password)
3. When the DVR boots up for the first time, you
will be guided through the Startup Wizard.
VGA LOOPOUT 1-8 LOOPOUT 9-16
CH4 CH5 CH6 CH7 CH8
SPOT OUT
KBD PTZ RELAY
CH13 CH14 CH15 CH16 HD OUTPUT USB 3.0 ETHERNET + – + –
HD
AUDIO IN/OUT TRUE
HD OUTPUT
Quick Start Guide
VGA MONITOR
VGA
LOOPOUT
*
*DW-VAONE16-L Models only,
DW-VLOOP Included
ALARM IN
C NC NO G 4 3 2 1
USB MOUSE NETWORK ALARM PTZ CAMERA
PORT INPUT/OUTPUT CONTROL
