Summary of Contents for AE RC10TC6

  • Page 2: Introduction

    Thank you for purchasing this Team Associated product. This assembly manual contains instructions and tips for building and maintaining your new RC10TC6. Please take a moment to read through this manual to help familiarize yourself with these steps. We are continually changing and improving our designs; therefore, actual parts may appear slightly different than in the illustra- tions.

  • Page 3: Table Of Contents

    :: Table of Contents 1....Cover 14....Top Plate / Bearing Caps Install (Bag G-GG) 2....Introduction 15-16..Steering Block Build / Install 3....Table of Contents (Bag H) 4-5....Shock Build (Bag A-AA) 17 ....Rear Hubs Build / Install (Bag H) 5-6....Front Slipper Spool Build 18....Shocks Install (Bag I) (Bag B-BB) 18....Bumper Build / Install (Bag I)
  • Page 4 :: Shock Build - Bag A-AA - Step 1 31510 M2x4mm bhcs 6465 31325 Shock VCS3 shock VCS3 shock 31324 piston body VCS3 (#3) piston bushing 31330 31327 VCS3 shock VCS3 shock VCS3 shock shaft bottom cap o-ring :: Shock Build - Bag A-AA - Step 2 Shock oil 31324 (40wt)
  • Page 5 :: Shock Build - Bag A-AA - Step 4 3942 Silver spring 6475 (front) Shock spring cup spring cup 3941 Green Build four spring shocks (rear) :: Front Slipper Spool Build - Bag B-BB - Step 1 31173 31173 Slipper Slipper spool spool...
  • Page 6 :: Front Slipper Spool Build - Bag B-BB - Step 3 Press nut all Pre-compress spring Recheck screw the way in! periodically! 31166 Washer 3904 31166 2-56 mini Diff T-nut 6582 locknut Fully tighten thrust screw Diff thrust for slipper spool! Recheck screw tightness spring after initial run!!!
  • Page 7 :: Rear Differential Build - Bag B-BB - Step 2 6573 3906 Diff thrust 3906 D-drive washer D-drive ring ring 6574 5/64” diff thrust balls 31338 31338 TC6 diff 6573 TC6 diff outdrives Diff thrust Diff thrust outdrives (long) bolt (short) :: Rear Differential Build - Bag B-BB - Step 3 31400...

  • Page 8: Cva Axle Build (Bag C)

    :: Rear Differential Build - Bag B-BB - Step 5 Setting 31162 -1/8 Shim 5/64” hex wrench 31401 installed in diff bolt 10x15mm bearing -1/4 -3/4 Diff Setting: Diff Setting: Tighten thrust screw until Tighten thrust screw until -5/8 -3/8 spring is fully compressed.

  • Page 9: Turnbuckle Build (Bag D)

    :: Turnbuckle Build - Bag D - Step 1 Servo Turnbuckle 1418 31305 0.825” Turnbuckle turnbuckle 29.55mm eyelet Camber Turnbuckle Front Rear 1403 1.65” turnbuckle 51.10m 51.50m Steering Turnbuckle 1405 1.875” turnbuckle 56.50mm :: Front Bulkhead Build - Bag E-EE - Step 1 31200 31280 25227...

  • Page 10: Rear Bulkhead Build (Bag E-Ee)

    :: Rear Bulkhead Build - Bag E-EE - Step 1 31280 31221 Inner 31321 31200 hinge pin ballstud TC6 arm Wheelbase mount shim (1mm) (2 dot) 31322 25227 TC6 arm M4x8mm mount setscrew bushing Arm Mounts 31204 Rear 31200 Wheel Base Shims suspension Wheelbase Roll Center...

  • Page 11: Shock Tower Build (Bag E-Ee)

    :: Shock Tower Build - Bag E-EE - Step 1 2230 31541 31302 31250 31250 Body M3x6mm TC6 shock Shock Shock mounts fhcs 31310 tower (front) bushing bushing Do not tighten #31541 screws bearing all the way! Leave screws loose until bearing caps are attached to bulkheads! 31531 M3x6mm...

  • Page 12: Spur Gear Shaft Build

    :: Steering Bellcrank Build / Install - Bag F - Step 3 Use rear hole for standard position! Refer to page 23 for Ackermann chart Servo Saver Adjustment 31308 31308 TC6 steering TC6 steering bellcrank bellcrank 0.5mm post insert post insert :: Spur Gear Shaft Build - Bag G-GG - Step 1 31314 31331...

  • Page 13: Spur Gear Hub / Belt Install

    :: Spur Gear Hub / Belts Install - Bag G-GG - Step 1 31187 Front belt Front Belt 31188 Rear belt Rear Belt :: Spur Gear Hub / Belts Install - Bag G-GG - Step 2 31521 M2.5x8mm bhcs :: Front Slipper Spool Install - Bag G-GG - Step 1 Right Side Belt Tension Cam Position...

  • Page 14: Rear Differential Install (Bag G-Gg) :: Notes

    :: Front Slipper Spool Install - Step 2 / Rear Differential Install - Bag G-GG - Step 1 Right Side Belt Tension Slide belt over Number diff pulley! 31185 31184 Diff bearing cam holder (mid-low) Use belt tension position 6 for Left Side standard setup.
  • Page 15 :: Steering Block Build / Install - Bag H - Step 1 31561 31233 Steering Axle crush blocks tube (HARD) 31404 31280 6x10mm Note side view bearing ballstud 31286 Aluminum ballstud washer (1mm) :: Steering Block Build / Install - Bag H - Step 2 31214 Caster block...
  • Page 16 :: Steering Block Build / Install - Bag H - Step 4 31112 31162 1/16” x 5/16” Axle shim dowel pins :: Steering Block Build / Install - Bag H - Step 5 31234 Clamping wheel hex 31222 Outer hinge pin 31511 M2x5mm 31510...

  • Page 17: Rear Hubs Build / Install (Bag H)

    :: Rear Hubs Build / Install - Bag H - Step 1 31281 ballstud 31286 Aluminum ballstud washer 31162 (2mm) Axle shim 31233 Axle crush 31562 tube Rear hub 31404 (0 deg) (HARD) 6x10mm bearing :: Rear Hubs Build / Install - Bag H - Step 2 31511 M2x5mm shcs...

  • Page 18: Shocks Install (Bag I)

    :: Shocks Install - Bag H - Step 1 31530 M3x5mm 31530 bhcs M3x5mm bhcs :: Bumper Build / Install - Bag I - Step 1 2230 4673 Body M2.5x4mm mounts 31316 bhcs TC6 bumper brace Transponder 31317 and screws TC6 foam not included! bumper...

  • Page 19: Pivoting Body Mounts Install (Bag I)

    :: Pivoting Body Mounts Install - Bag I - Step 1 3897 3897 Pivoting body mounts Pivoting 1736 body mounts FT body clips (blue) 1736 FT body clips (blue) :: Battery Braces / Antenna Mount Install - Bag I - Step 1 31530 M3x5mm 31304...

  • Page 20: Anti-Roll Bars Build / Install (Bag J)

    :: Anti-Roll Bars Build / Install - Bag J - Step 1 31500 8828 M3x2.5mm Anti roll 31269 set screw bar cups Anti roll bar pivot 31261 Build four 1.25mm 31269 anti-roll roll bar Anti roll bar mounts (black) bar pivot mount Front Anti Roll Bar...

  • Page 21: Servo Build / Install (Bag K)

    :: Servo Build / Install - Bag K - Step 1 31286 7336 7337 Aluminum Servo .250x.125x.015 ballstud washer spacer washer (1mm) (1mm) 31280 31280 ballstud ballstud 89007 89007 Servo Servo 31532 31532 horn ring horn ring M3x8mm M3x8mm 31246 9180 Use screw that was included bhcs...

  • Page 22: Wheels / Tires Build / Install

    :: Electronics Install - Bag L - Step 2 31286 Aluminum ballstud washer (1mm) 31531 M3x6mm Gearing will depend on the bhcs motor and track size. Motor, pinion gear, and set screw are not included! :: Electronics Install - Bag L - Step 3 Use battery tape to secure battery into chassis.

  • Page 23: Ride Height

    :: Tuning Tips Tips for Beginners: Before making any changes to the standard setup, make sure you can get around the track without crashing. Changes to your car will not be beneficial if you can’t stay on the track. Your goal is consistent laps. Once you can get around the track consistently, start tuning your car.
  • Page 24 :: Tuning Tips Caster: Caster describes the angle of the kingpin from vertical while looking from the side of the car. Positive caster means the top of the kingpin leans rearward. Negative caster means the kingpin is leaning towards the front of the car. Since caster is measured at the wheel, it is affected by running any inclination in your inboard arm mount.
  • Page 25 :: Tuning Tips Kick-Up (front): Kick-up describes the angle of the front suspension arm, where the front mount is higher than the rear mount. Increasing kick-up will give more entry steering, as well as increasing caster at the wheel. Anti-Dive (front): Anti-dive is a front arm angle where the rear mount is higher than the front mount.
  • Page 26 :: Shocks :: CVA’s 5407 Red O-Rings 31226 CVA Kit 6465 Shock Piston, PTFE 31227 CVA Rebuild Kit 31328 6475 Preload Spacers, Collars, Cups 31231 Stub Axle 31249 Shock Shaft Ball Cup 31232 CVA Bone 31323 VCS3 Shock Kit 31237 CVA Pin Retaining Clip 31329 31324...
  • Page 27 :: Front Slipper Spool 3904 2-56 Mini Lock Nut 6573 Diff Thrust Washers & Bolt 6573 6574 6574 5/64” Diff Thrust Balls 6582 Diff Thrust Spring 31184 31162 Axle Shim Kit 31162 6573 31166 Diff Rebuild Kit 31169 Diff Pulley - 40T 31185 31173 Slipper Spool Pads...
  • Page 28 :: Steering Bellcrank and Servo Mounts 7336 Steering Servo Mount Kit 31530 7337 .250” x.125” x.015” Washer 9180 Servo Horns, Molded 31307 7336 31246 Servo Mounts 31246 31280 5mm Ballstud, short 7337 31403 31286 Aluminum Ballstud Washers, Set 31306 TC6 Servo Saver Tube Assembly 31532 31307 TC6 Steering Post...
  • Page 29 :: Front Bulkhead 25187 M3x14mm BHCS 25227 M4x8mm Setscrew 31264 31112 1/16” x 5/16” Dowel Pins 31309 31162 Axle Shim Kit 31511 31198 Arm Mount Shim Set 31321 31200 Wheelbase Shim Set 31540 31322 31203 Front Suspension Arm (HARD) 31198 31205 Front Suspension Arm 25187...
  • Page 30 87T 48P Spur Gear 3820 AE Logo Decal Sheet 8264 27T 48P Pinion Gear 31334 106T 64P Spur Gear 3834 AE Blue Embossed Logo Sticker 8265 28T 48P Pinion Gear 31335 115T 64P Spur Gear 31299 TC6 Decal Sheet 8266...
  • Page 31 :: Factory Team and Option Parts :: Reedy Batteries 1401 1.300” Ti Turnbuckles AA Alkaline 1.5V (4) 1402 1.375” Ti Turnbuckles AA 2700mAh NiMH 1.2V Rechargeable (4) 1734 FT Blue Body Clip, 4 long, 6 short LiPo 60C 5500mAh 14.8V 1735 FT Blue Body Clip, long LiPo 60C 5200mAh 7.4V SP...

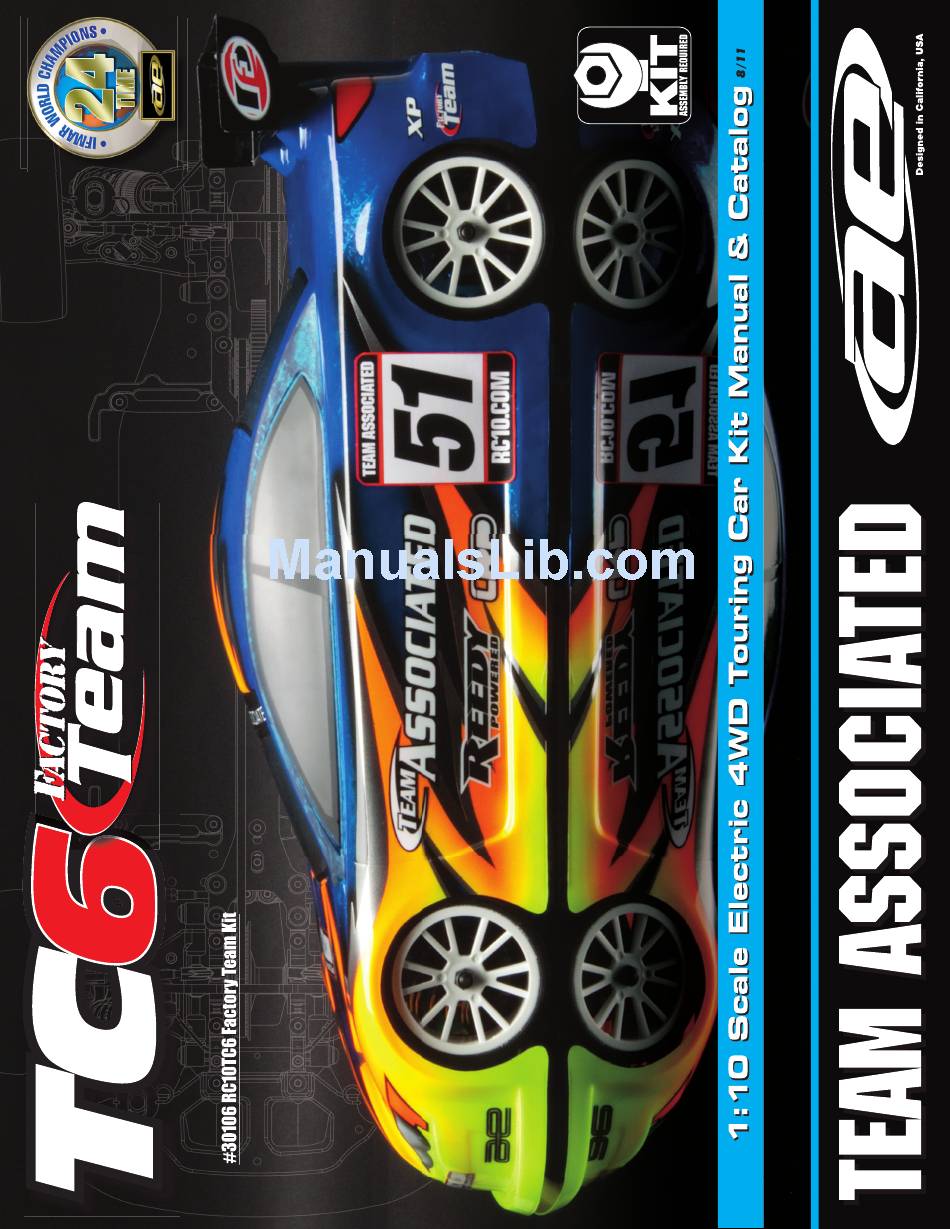

  • Page 32: Cover

    SP61** AE Vertigo Hooded Sweatshirt (S, M, L, XL, XXL) LRP80905 SXX Competition V.2 SP62** AE Vertigo Long Sleeve T-Shirt (S, M, L, XL, XXL) SP63** AE Vertigo White T-Shirt (S, M, L, XL, XXL) LRP80955 SXX TC-Spec V.2 SP64**...
  • Page 33 (ready-to-run) http://www.TeamAssociated.com 80923 SC8 Short Course Race Truck, Bully Dog Nitro RTR http://www.RC10.com (ready-to-run) 80924 SC8 Short Course Race Truck, AE Team Nitro RTR http://twitter/Team Associated (ready-to-run) http://bit.ly/AEonFacebook 80925 SC8 Short Course Race Truck, Pro Comp Nitro RTR (ready-to-run) 80932...

  • Page 34: Notes

    :: Notes...
  • Page 35 Front...

  • Page 36: Notes

    :: Hardware - 1:1 Scale View Cap Head (shcs) Flat Head (fhcs) Button Head (bhcs) 2x5mm (31511) 3x5mm (31540) 2x4mm (31510) Thrust screw (9274) 3x6mm (31541) 2x5mm (31511) 3x8mm (25201) 3x5mm (31530) Setscrew 3x10mm (25202) 3x6mm (31531) 3x2.5mm (31500) 3x12mm (25203) 3x8mm (31532) 4x8mm (25227) 3x16mm (25204)
  • Page 37 Front...
