PATCHBAY INPUTS AND OUTPUTS
CLOCK/TEMPO
(continued)
NOTE II: It is safe to use larger logic levels up to +15V. The minimum level for triggering these inputs is
approximately +3.2V.

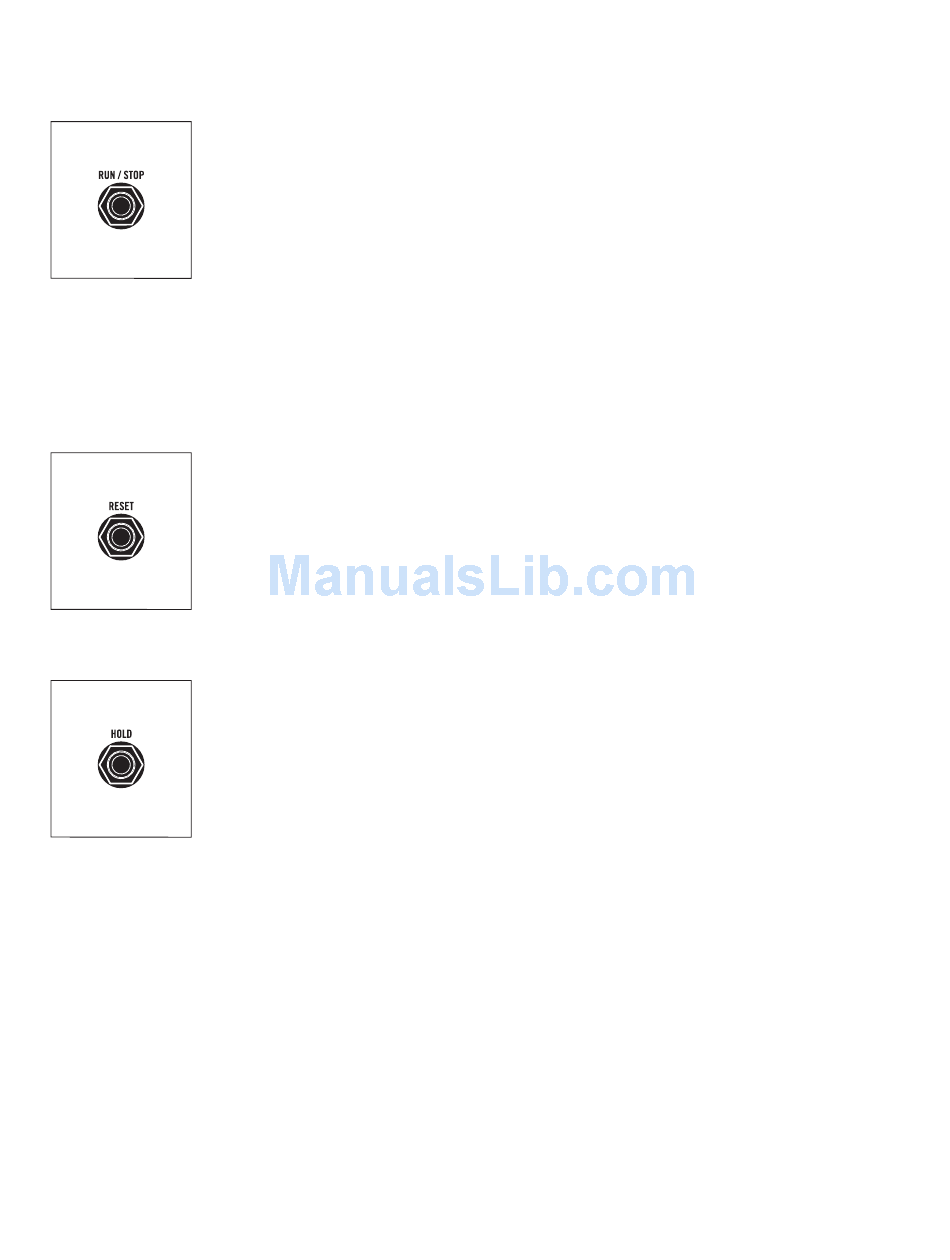

RUN/STOP
When a +5V signal is applied to this input, the sequencer will play from its
current pattern location for the duration that the voltage is applied. When a
0V signal is applied to this input, the sequencer will stop at its current pattern
location. The sequencer responds to the last action of either the RUN/STOP
button or this input.
NOTE: An external clock signal applied here will advance the steps of the
pattern in the same way repeatedly pressing the RUN/STOP button does,
but the internal clock is NOT synchronized.
RESET
When a +5V signal is applied to this input, the pattern will be reset from its
current location and begin playing from step 1. Step 1 will be repeated as long
as +5V is applied to this input. When the voltage drops to 0V, the sequencer
will begin to advance from step 1.
NOTE: It is safe to use larger logic levels up to +15V. The minimum level for
triggering these inputs is approximately +3.2V.
HOLD
If a +5V signal is applied to this input while the sequencer is running, the
current step in the pattern will be repeated at the current tempo. When
the voltage drops to 0V, the pattern will begin to advance again.
NOTE: It is safe to use larger logic levels up to +15V. The minimum level for
triggering these inputs is approximately +3.2V.
