DTX Vortex Owner's Manual page 15

Cart Assembly - Cont.

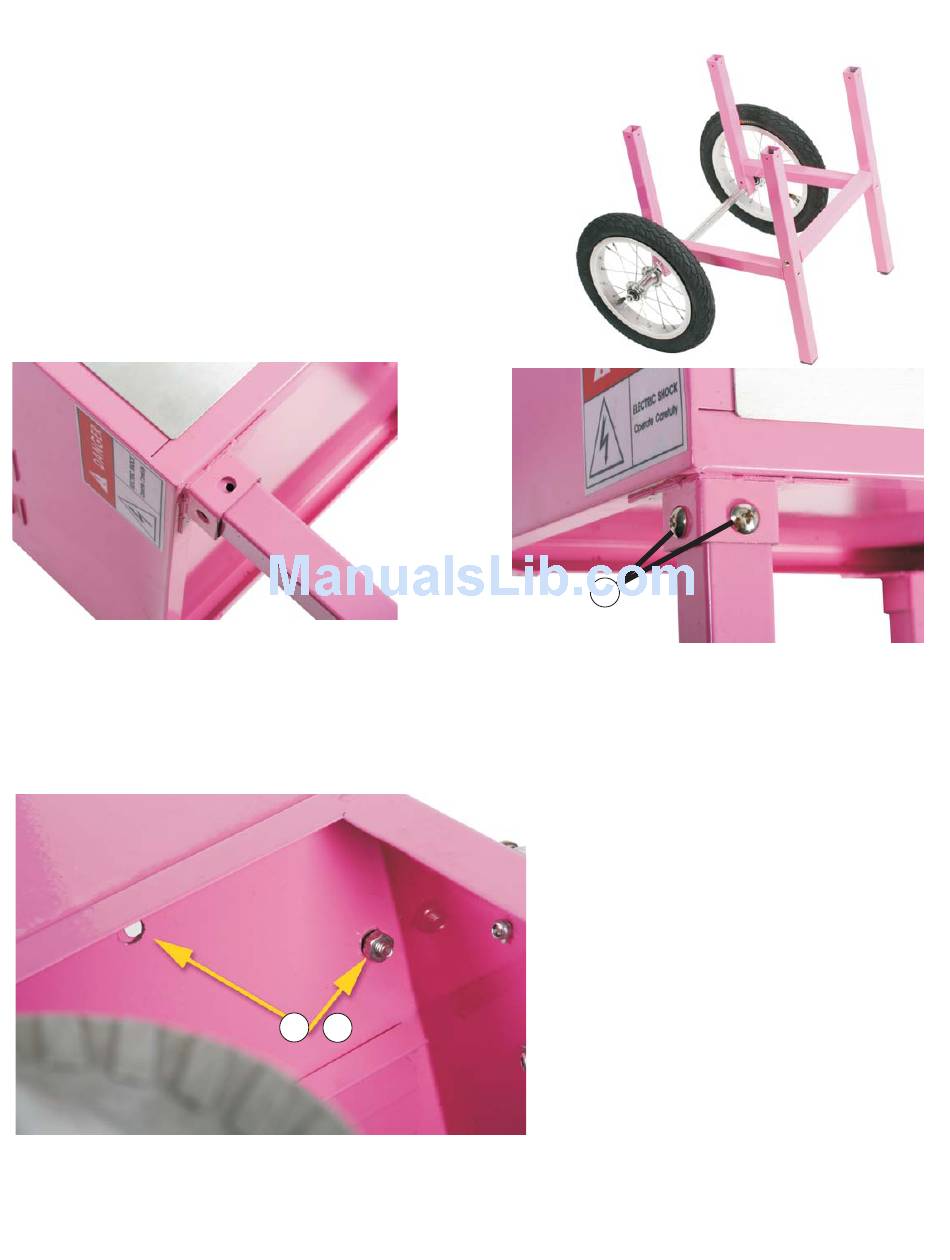

10) Slide the frame into the base of the cotton candy
machine top, ensuring that there are no bits of metal still
inside the machine base from the drilling process. Use a
small screwdriver or pick to remove any stubborn burs or
metal flakes. The frame should slide fairly easily into the
base of the machine (
with two short screws (
NOTE: The cart can be attached to the machine one
of two ways. The decision as to which side to put the
wheels will depend upon your application or location
for your cart display.
Cart Assembly - Shelves
11) Ensure that the pan and gray cover are removed prior to continuing.
Figure BB
Figure Z ). Secure each corner
ee ) as shown in Figure AA.
Figure Z
+
cc
f f
Copyright 2012 DTX International All Rights Reserved
ee
12) Which side you have chosen to install
your cart to will determine the side yoru
shelves must be attached to. The shelf ( )
with the three large holes
SAME SIDE
shelf ( ) in place and insert small bolts ( A
through the holes from under the shelf and
secure with 7mm nuts ( ). Repeat until all
four small bolts and nuts are fastened
securely (see
13) Repeat
opposite side of the machine (the side
opposite the wheels).
15
Figure Y
Figure AA
will go on the
of the cart as the wheels. Hold
ff
Figure BB ).
step 12 with Shelf ( ) on the
A
cc )
B
