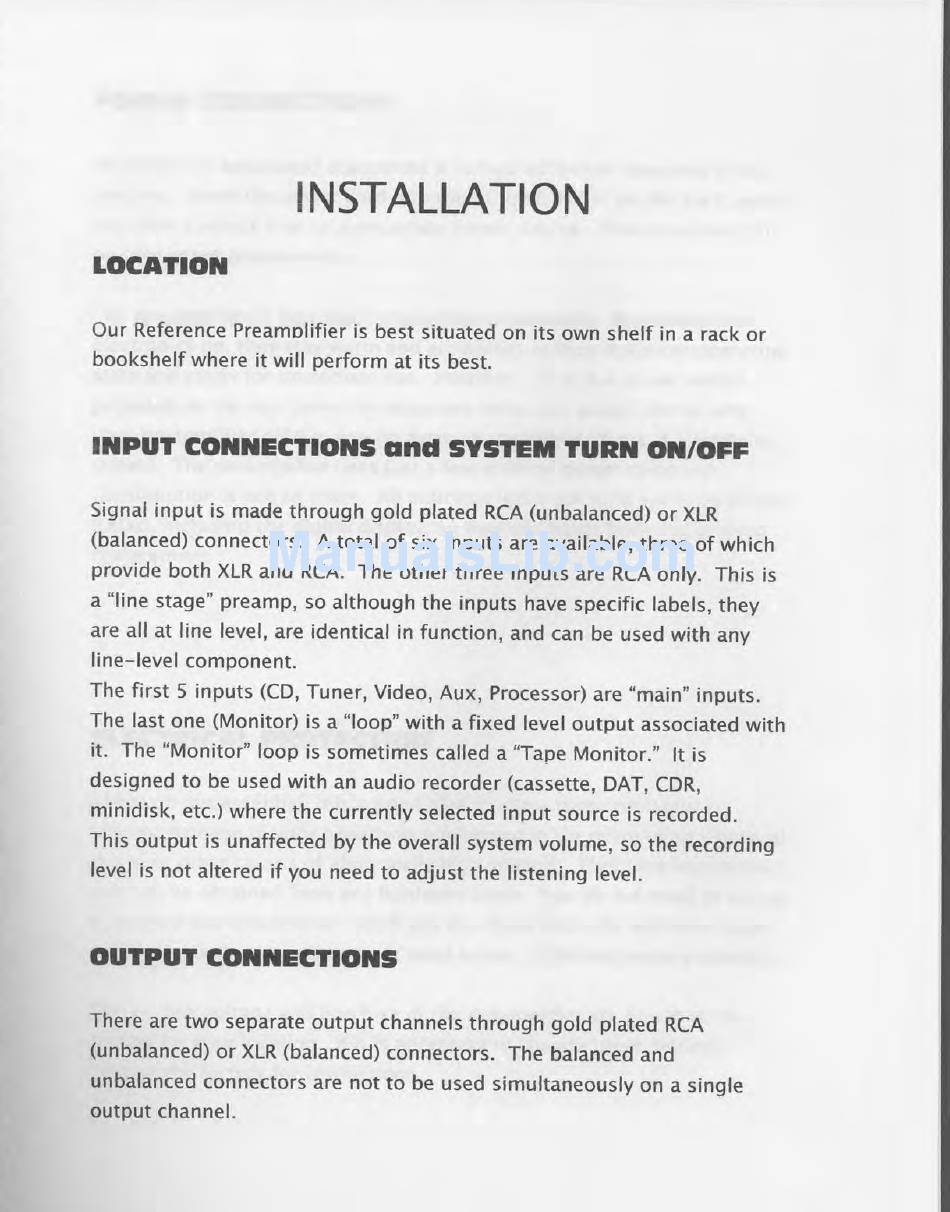

INSTALLATION
rocArlorr
Our Reference Preamplifier is best situated on its own shelf in a rack or
bookshelf where it will perform at its best.
lrrPUT corilEcTtoilS
3|nd sysTE}| ruRr oll/oFF
signal input is made through gold ptated RCA (unbalanced) or XLR
(balanced) connectors. A total of six inputs are available, three of which
provide both XLR and RCA. The other three inputs are RCA only- This is
a "line stage" preamp, so although the inputs have specific labels, they
are all at line level, are identical in function, and can be used with any
line-level component.
The first 5 inputs (cD, Tuner, Video, Aux, processor) are "main" inputs.
The last one (Monitor) is a "loop" with a fixed level output associated with
it. The "Monitor" loop is sometimes called a "Tape Monitor." lt is
designed to be used with an audio recorder (cassette, DAT, CDR,
minidisk, etc.) where the currentlv selected input source is recorded.
This output is unaffected by the overall system volume, so the recording
level is not altered if you need to adjust the listening lever.
OUTPUT COIIilEGTIOIIS
There are two separate output channels through gord prated RCA
(unbalanced) or XLR (balanced) connectors. The balanced and
unbalanced connectors are not to be used simultaneously on a single
output channel.
