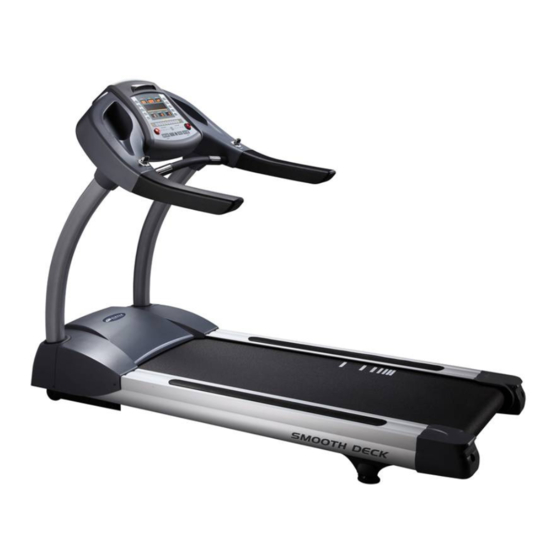

- Page 1 Document NO. M-7001A-EM-English Engineer Manual-Trouble Shooting PAGE Page 1 of 18 VERSION ENGINEER MANUAL FOR AFTER SALE SERVICE PRODUCT：TREADMILL MODEL： M-7001 SERIES A TYPE...
- Page 2 Document NO. M-7001A-EM-English Engineer Manual-Trouble Shooting PAGE Page 2 of 18 VERSION INFORMATION GUIDE： 1. Information For Components & System 1.1. System wiring diagram ----- Page 3 1.2. Console PCB ----- Page 4~5 1.3. Inverter ----- Page 5 2. Error Signal Check And Solutions 2.1.
-
Page 3: Information For Components & System 1.1. System Wiring Diagram
Document NO. M-7001A-EM-English Engineer Manual-Trouble Shooting PAGE Page 3 of 18 VERSION 1.Information For Components & System 1.1.System wiring diagram：... -
Page 4: Console Pcb
Document NO. M-7001A-EM-English Engineer Manual-Trouble Shooting PAGE Page 4 of 18 VERSION 1.2.Console PCB Console communication wire Console communication wire ( ( ( (J7) Console communication wire Console communication wire (RS485)DX+ / TXD(RS232) G12(GND) (RS485)DX- / RXD(RS232) SAFETY KEY WK_UP Wireless receiver (Jk8) sensor input SAFE KEY (Jk4) -
Page 5: Inverter
Document NO. M-7001A-EM-English Engineer Manual-Trouble Shooting PAGE Page 5 of 18 VERSION MEMBRANE (KEYBOARD L) Left (10P) 1(S1) 2(S2) 3(S3) 4(S4) 5(S5) 6(D1) Target Strength Reset/Clear 7(D2) Rolling Interval 8(D3) Valley Random 9(D4) Fat Burn Fitness Test 10(D5) Ramp H.R.C Enter MEMBRANE (KEYBOARD R) Right (8P) -
Page 6: Error Signal Check And Solutions 2.1. Error Message『Le1
Document NO. M-7001A-EM-English Engineer Manual-Trouble Shooting PAGE Page 6 of 18 VERSION 2.Error Signal Check And Solutions 2.1.Error message『LE1』 ：The voltage is too low during exercising, please check the input AC power source, AC power source voltage shall between 110 / 220 V ± 10%. 2.2.Error message『OC』... -
Page 7: Error Message『Oh
Document NO. M-7001A-EM-English Engineer Manual-Trouble Shooting PAGE Page 7 of 18 VERSION 2.8.Error message『OH』 ：The inverter over heat, wait for cooling down can re-start, but it means the loading already too high, have to lubricate or replace running belt or deck. -
Page 8: Error Message『Err6
Document NO. M-7001A-EM-English Engineer Manual-Trouble Shooting PAGE Page 8 of 18 VERSION 2.15. Error message『Err6』 ：Incline motor can not reach set position over 42 seconds Show Err6 Reset power Press Start then set incline Incline motor jammed, to eliminate jam problem then check to 15. -
Page 9: Error Message『Esp
Document NO. M-7001A-EM-English Engineer Manual-Trouble Shooting PAGE Page 9 of 18 VERSION 2.16. Error message『ESP』 ：Inverter emergency protection. Show ESP Open motor cover. Dis-connect ESP wire from inverter. Short circuit the ESP terminal with a screw(Metal). Reset AC power and wait 5 seconds Is it still show ESP ？... -
Page 10: Error Message『Uart
Document NO. M-7001A-EM-English Engineer Manual-Trouble Shooting PAGE Page 10 of 18 VERSION 2.17. Error message『UArt』：Communication time out, console can not communication with inverter over 10 seconds. Open motor cover. Switch ON the power Does communication lamp where on the inverter flash before console show UArt？... -
Page 11: Error Message『Err1
Document NO. M-7001A-EM-English Engineer Manual-Trouble Shooting PAGE Page 11 of 18 VERSION 2.18. Error message『Err1』：Inverter no output after start. Show Err1 Reset power 『UArt』 Does the console show Refer to 2.13. error after 10 seconds? 『UArt』 message Press START to quick start. Replace inverter to newest version (refer to 1.3.) and update the console Motor did not move then show... -
Page 12: Other Information 3.1. Console No Power(No Any Display)
Document NO. M-7001A-EM-English Engineer Manual-Trouble Shooting PAGE Page 12 of 18 VERSION 3.Other Information 3.1.Console no power(No any display) Console no power Open motor cover. Does lamp lights up on inverter? Replace inverter Replace console 3.2.Distance window shown『Err』only, no any error message show on time window：To check the motor wires connection or replace inverter. -
Page 13: Incline Window Show『Err
Document NO. M-7001A-EM-English Engineer Manual-Trouble Shooting PAGE Page 13 of 18 VERSION 3.4.Incline window show『Err』, incline lose function but other functions normal： Reset power Press and hold 『 S TOP 』 t hen press 『 S TART 』 seconds to enter engineer mode Press 『... -
Page 14: Engineering Mode 4.1. Engineering Mode 1: Test Mode
Document NO. M-7001A-EM-English Engineer Manual-Trouble Shooting PAGE Page 14 of 18 VERSION 4.Engineering Mode 4.1.Engineering mode 1: Test mode 4.1.1.Press and hold『Stop』key then press『Start』3 seconds to enter the engineering mode while in idle mode. The display will show software version, press『Enter』 to begin the test mode. -
Page 15: Engineering Mode 2: Factory Settings
Document NO. M-7001A-EM-English Engineer Manual-Trouble Shooting PAGE Page 15 of 18 VERSION 4.2.Engineering mode 2: Factory settings 4.2.1.Press and hold『Stop』key then press『Fast』3 seconds to enter the engineering mode while in idle mode. 4.2.1.1. Software version ： Dot-matrix show 【 VER】 , time window show software version, press『Enter』to next setting. -
Page 16: External Control Key Pad Usage
Document NO. M-7001A-EM-English Engineer Manual-Trouble Shooting PAGE Page 16 of 18 VERSION 5.Inverter Information and External Control 5.1.External control Key Pad usage： 5.1.1.External control Key Pad appearance(KP-208)and connection. 5.1.2.Monitor mode and operation： O u t p u t f r e q u e n c y F r e q u e n c y s e t t i n g O u t p u t v o l t a g e P N V o l t a g e... - Page 17 Document NO. M-7001A-EM-English Engineer Manual-Trouble Shooting PAGE Page 17 of 18 VERSION 5.1.3.To control inverter by External control Key Pad： 5.1.3.1. Start / Stop / Fast / Slow P r e s s P R O G c h a n g e t o f u n c t i o n s e t t i n g a t a n y d i s p l a y m o d e , p r e s s ▲...
- Page 18 Document NO. M-7001A-EM-English Engineer Manual-Trouble Shooting PAGE Page 18 of 18 VERSION 5.1.3.2. Incline control： Monitor mode Parameter setting Incline parameter Monitor mode 9 Incline UP Incline Down...
