RAILKING
6-8-6 BANTAM TURBINE
STEAM ENGINE

OPERATING INSTRUCTIONS

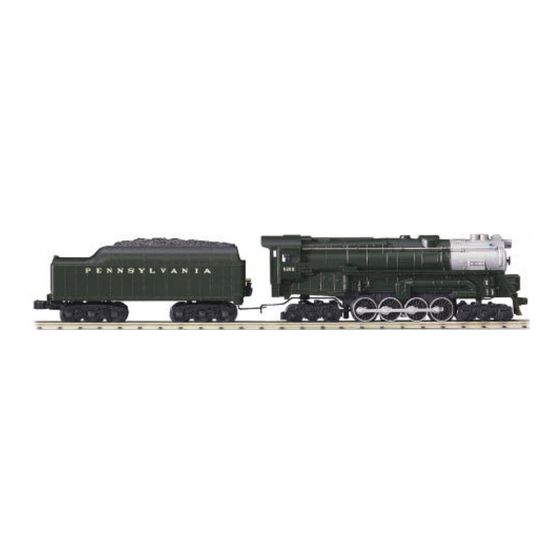

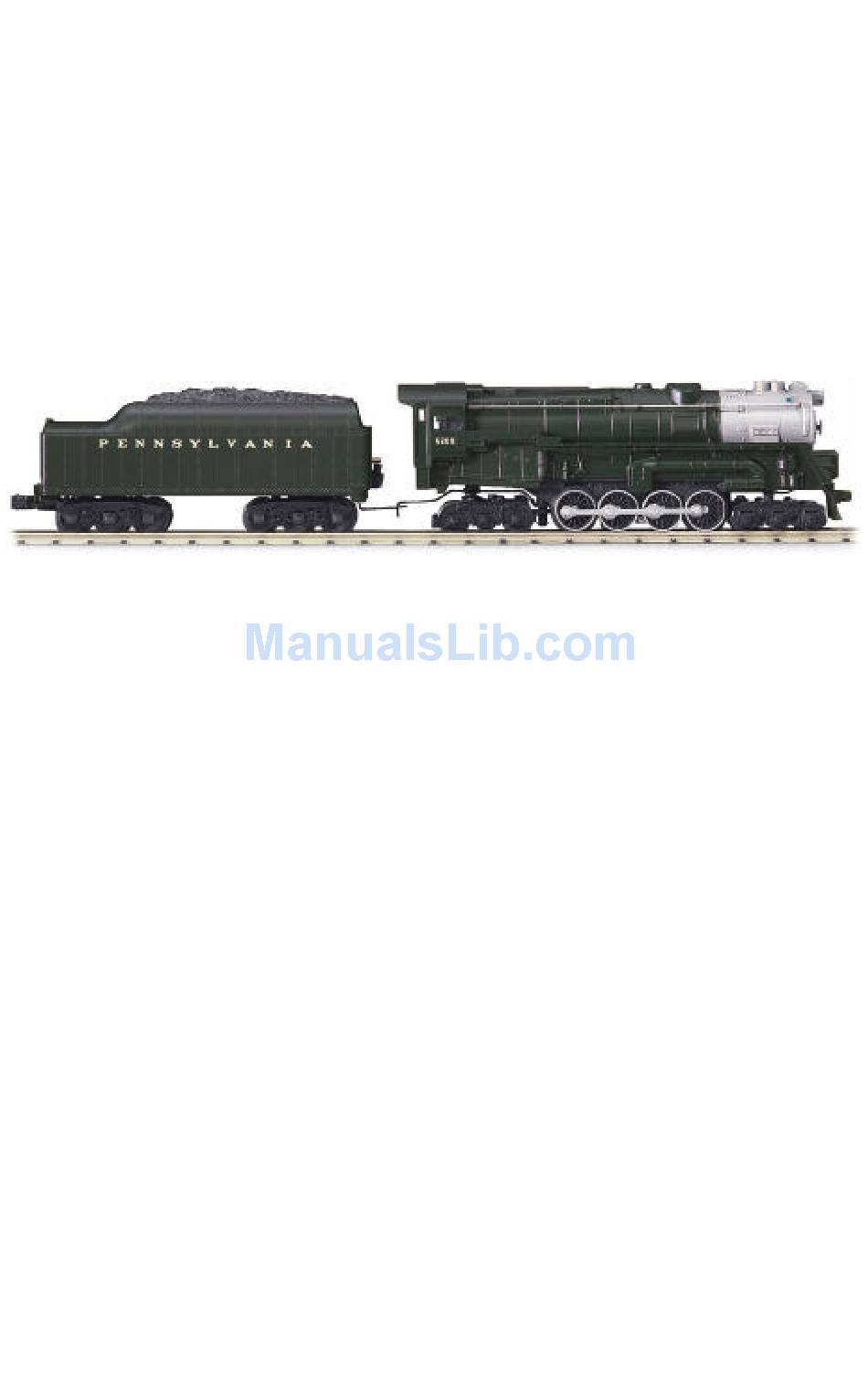

This RailKing 6-8-6 Bantam Turbine Steam Engine is produced in detailed Die-Cast
Metal and operates on O-31 track. This RailKing Steam Engine contains M.T.H.'s
Loco-Sound™ sound and train control system. The locomotive is easy to operate with
any compatible standard AC transformers (see the compatibility chart on page 14), and is
completely compatible with most other 3-rail locomotives, rolling stock, and accessories.
Please read all the accompanying instructions carefully before setting up and operating
your locomotive.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6-8-6 BANTAM TURBINESTEAM ENGINE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rail King 6-8-6 BANTAM TURBINESTEAM ENGINE

Summary of Contents for Rail King 6-8-6 BANTAM TURBINESTEAM ENGINE

  • Page 1: Operating Instructions

    RAILKING 6-8-6 BANTAM TURBINE STEAM ENGINE OPERATING INSTRUCTIONS This RailKing 6-8-6 Bantam Turbine Steam Engine is produced in detailed Die-Cast Metal and operates on O-31 track. This RailKing Steam Engine contains M.T.H.’s Loco-Sound™ sound and train control system. The locomotive is easy to operate with any compatible standard AC transformers (see the compatibility chart on page 14), and is completely compatible with most other 3-rail locomotives, rolling stock, and accessories.

  • Page 2: Table Of Contents

    Table of Contents Set Up Basic Operation Transformer Controls Speed Control Direction Lock Proto-Cast and Proto-Dispatch Volume Control Maintenance Lubrication and Greasing Instructions Cleaning the Wheels, Tires and Track Locomotive Traction Tire Replacement Smoke Unit Maintenance Locomotive Light Bulb Replacement Troubleshooting Compatibility Transformer Compatibility Chart...

  • Page 3: Set Up

    Set Up There are a few simple steps you must take before operating this RailKing steamer. 1. You should prime the operating smoke unit with smoke fluid before operating. Add 15-20 drops of smoke fluid through the smokestack, then gently blow into the stack to eliminate any air bubbles in the fluid. See Fig. 4 on pg.

  • Page 4: Basic Operation

    Basic Operation Throttle – Throttle up the power to your track. Give enough power so that the engine’s headlight shines brightly. Then put the engine into motion by either firmly pressing the Direction button on your transformer or remote once or dropping and advancing the throttle to put the engine in forward.

  • Page 5: Speed Control

    Speed Control: M.T.H. engines equipped with Loco-Sound have speed control capabilities that allow the engine to maintain a constant speed up and down grades and around curves, much like an automobile cruise control. You can add or drop cars on the run, and the engine will maintain the speed you set. While the engine is programmed to start with the speed control feature activated, you can opt to turn it off.

  • Page 6: Proto-Cast And Proto-Dispatch

    Proto-Cast and Proto-Dispatch: When used with the RailKing Remote Lock-on (sold separately), ™ ™ Loco-Sound-equipped engines gain Proto-Cast and Proto-Dispatch features. Proto-Cast: This feature allows you to play audio recordings through your engine’s speakers. You must supply the audio source (a small portable CD/Tape player is sufficient) and a male-to-male mini cable (1/8”...

  • Page 7: Volume Control

    Manual Volume Control – To adjust the volume of all sounds made by this engine, turn the master volume control knob located under the tender clockwise to increase the volume and counter-clockwise to decrease the volume (see Fig. 1 ). Figure 1.

  • Page 8: Maintenance

    Maintenance: Lubrication and Greasing Instructions The engine should be oiled and greased in order to run properly. You should regularly lubricate all side rods and linkage components and pickup rollers to prevent them from squeaking. Use light household oil and follow the lubrication points marked “L”...

  • Page 9: Cleaning The Wheels, Tires And Track

    3. Carefully lift out the PCB board to access the gear box and preserve the small plastic (mica) insulator that fits between the board and the bracket. 4. Open the gear box by unscrewing the screws on the plate located in front of the motor.

  • Page 10: Smoke Unit Maintenance

    3. Slip the new tire onto the wheel. You may find it useful to use two small flathead screwdrivers to stretch the tire over the wheel. 4. If you twist the tire while stretching it over the wheel, you will need to remove and reinstall the tire.

  • Page 11: Locomotive Light Bulb Replacement

    off may damage the smoke unit heating element and/or wicking material. • When the smoke output while running the engine begins to diminish, add another 10-15 drops of smoke fluid or turn the smoke unit off. • When storing the unit for long periods of time, you may want to add about 15 drops of fluid to prevent the wick from drying out.

  • Page 12: Troubleshooting

    ™ Troubleshooting Loco-Sound Problems Although Loco-Sound has been designed and engineered for ease of use, you may have some questions during initial operation. The following table should answer most questions. If your problem cannot be resolved with this table, contact M.T.H. for assistance (telephone: 410-381-2580; fax: 410-423-0009; service@mth-railking.com, 7020 Columbia Gateway Drive, Columbia MD 21046-1532).

  • Page 13: Compatibility

    Compatibility This engine will operate on any traditional O-31 or larger O Gauge track ® ™ system, including M.T.H.’s RealTrax or ScaleTrax or traditional tubular track. It is also compatible with most standard AC transformers. (See page 14 for a complete list of compatible transformers and wiring instructions.) RailKing 6-8-6 Bantam Turbine Steam Engine...

  • Page 14: Transformer Compatibility Chart

    Transformer Compatibility and Wiring Chart Note that many of the operational commands described in these instructions require a bell button, so if your transformer does not have its own bell button, you should consider adding one to get the full benefit of the system. RailKing 6-8-6 Bantam Turbine Steam Engine...

  • Page 15: Safety Precautions

    CAUTION: Electrically Operated Product: Not recommended for children under 10 years of age. M.T.H. recommends adult supervision with children ages 10 - 16. As with all electric products, precautions should be observed during handling and use to reduce the risk of electric shock. WARNING: When using electrical products, basic safety precautions should be followed including the following: Read this manual thoroughly before using this device.

  • Page 16: Service And Warranty Information

    Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty For warranty repair, do not return your product to the place of purchase. Instead, follow the instructions below to obtain warranty service as our dealer network is not prepared to service the product under the terms of this warranty.
