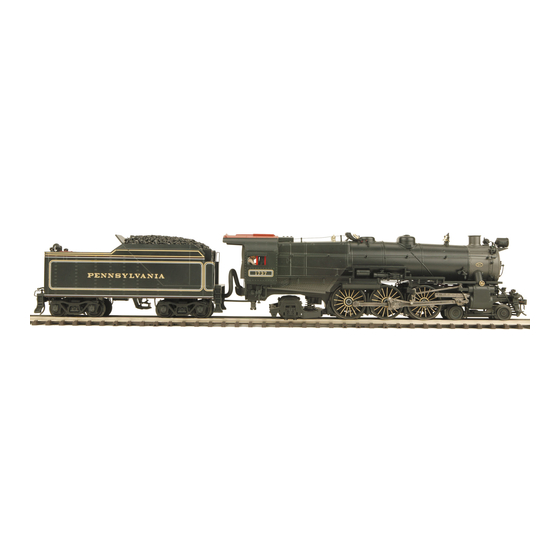

RAILKING 4-6-2 K-4
STEAM ENGINE
OPERATING
INSTRUCTIONS
This RailKing Steam Engine contains M.T.H.'s Loco-Sound™ sound and train control
system. The locomotive is easy to operate with any compatible standard AC transformer
(see the compatibility chart on page 14 ), and is completely compatible with most other
3-rail locomotives, rolling stock, and accessories.
M.T.H. takes pride in manufacturing high quality products like your RailKing steam
engine, and we hope that you will enjoy it for a long time. Please read all the
accompanying instructions carefully before setting up and operating your locomotive.
With proper care, this engine should yield years of trouble-free performance.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rail King RAILKING 4-6-2 K-4 STEAM ENGINE
Summary of Contents for Rail King RAILKING 4-6-2 K-4 STEAM ENGINE

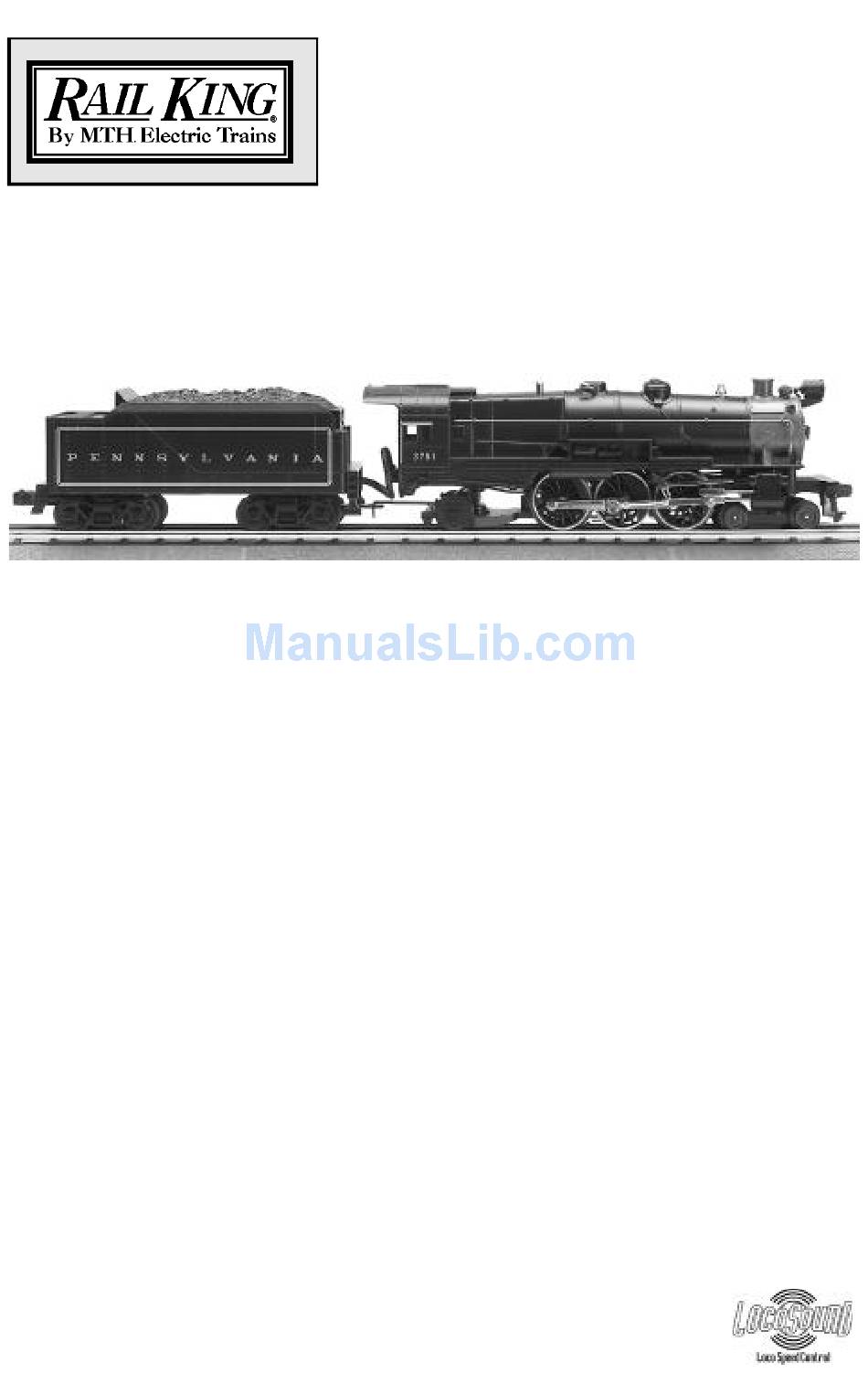

- Page 1 RAILKING 4-6-2 K-4 STEAM ENGINE OPERATING INSTRUCTIONS This RailKing Steam Engine contains M.T.H.’s Loco-Sound™ sound and train control system. The locomotive is easy to operate with any compatible standard AC transformer (see the compatibility chart on page 14 ), and is completely compatible with most other 3-rail locomotives, rolling stock, and accessories.
-
