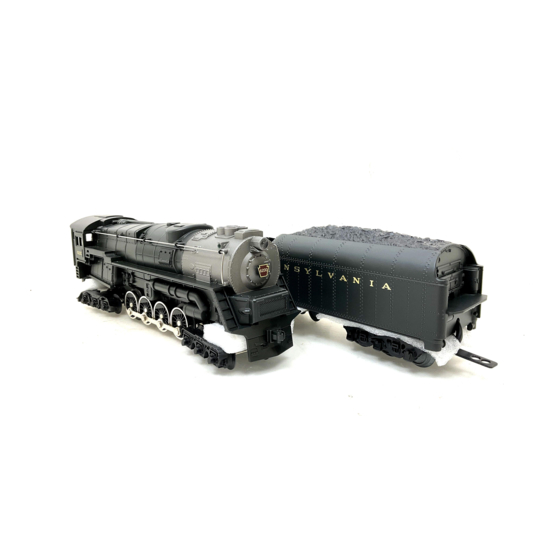

RAILKING 6-8-6
STEAM TURBINE WITH
PROTO-SOUND 2.0
READY-TO-RUN TRAIN SET
OPERATING INSTRUCTIONS
®
Your RailKing
Ready-To-Run train set is complete with everything you need to get
your model railroad up and running. This set includes a 6-8-6 steam turbine locomotive,
three freight cars , a transformer, a loop of RealTrax, the RailKing wireless infrared
remote control, and the infrared activated remote lock-on. M.T.H.'s exclusive RailWare
CD-ROM, which is included with this set, provides track layout software and other
information helpful to model railroaders.
This locomotive is equipped with Proto-Sound 2.0 with Digital Command System
(DCS). This new system will allow you to operate your locomotive in Command mode
(when used with the DCS Remote Control System, sold separately) or Conventional
mode. Conventional mode operating features are described in the following pages, while
the DCS operating features are covered in the set of operating instructions that
accompanies the DCS equipment. Conventional Mode operation of this locomotive is
much simpler than operation of original Proto-Sound engines. Please read all the
accompanying instructions carefully before setting up and operating your train set.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rail King 6-8-6 Steam Turbine Engine
Summary of Contents for Rail King 6-8-6 Steam Turbine Engine
-
Page 1: Operating Instructions

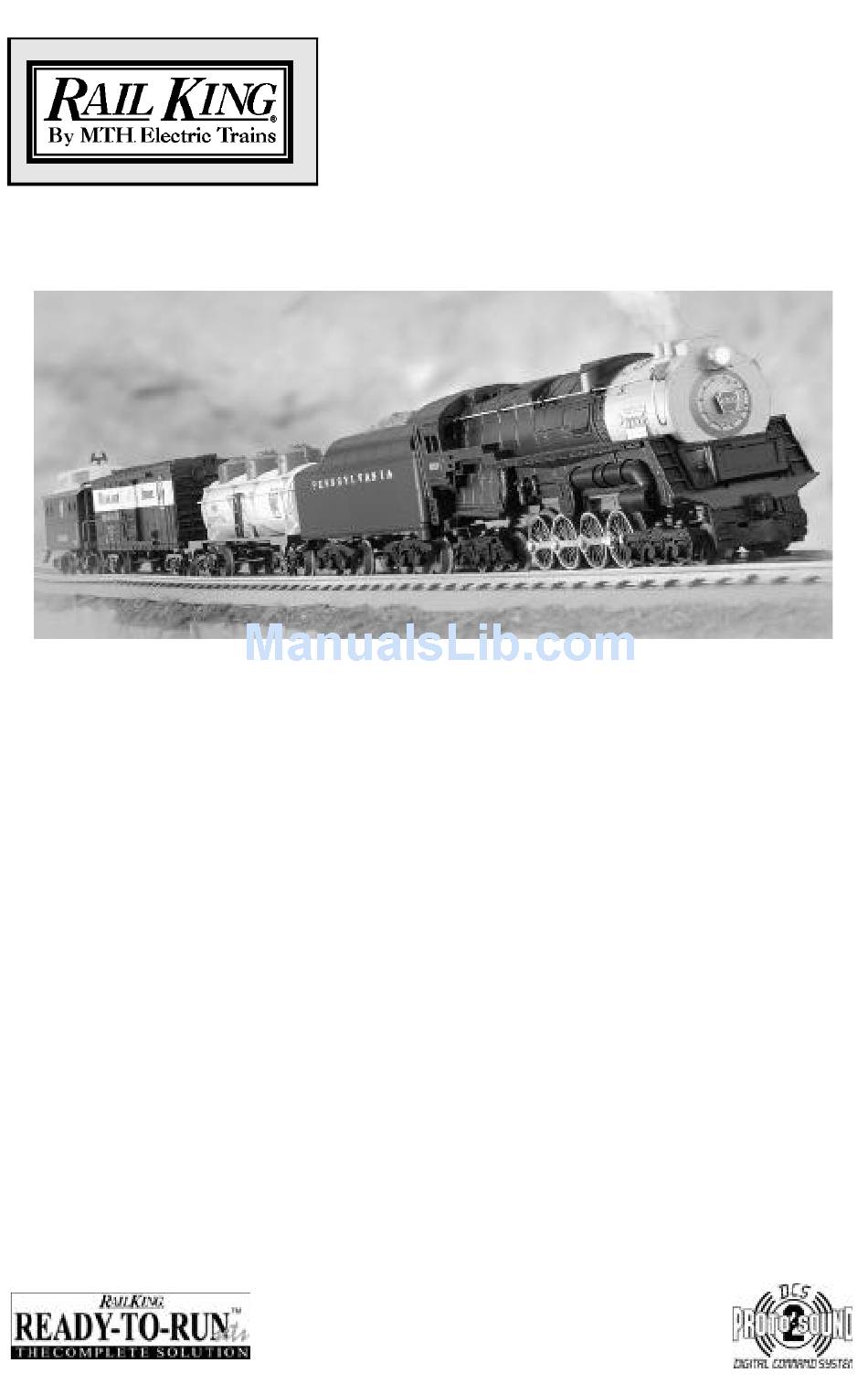

RAILKING 6-8-6 STEAM TURBINE WITH PROTO-SOUND 2.0 READY-TO-RUN TRAIN SET OPERATING INSTRUCTIONS ® Your RailKing Ready-To-Run train set is complete with everything you need to get your model railroad up and running. This set includes a 6-8-6 steam turbine locomotive, three freight cars , a transformer, a loop of RealTrax, the RailKing wireless infrared remote control, and the infrared activated remote lock-on. -
