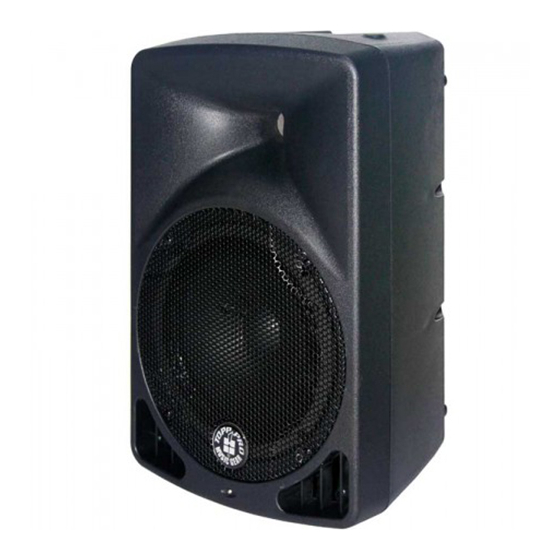

Summary of Contents for Topp Music Gear ARGO 8A
- Page 1 ARGO ARGO 8A/10A/12A/15A ARGO 8A-MP/10A-MP/12A-MP/15A-MP ARGO...
- Page 2 ARGO...
-
Page 3: Table Of Contents
ARGO INDEX INTRODUCTION HOOKUP DIAGRAMS QUICK START RIGGING PANEL DESCRIPTION FREQUENCY RESPONSE DIAGRAM WIRE CONNECTIONS TECHNICAL SPECIFICATIONS WARRANTY... -
Page 4: Introduction
ARGO ARGO ARGO 625x386x366mm 14.86kg/32.80 Ibs... -
Page 5: Hookup Diagrams
ARGO Hookup Diagrams Two speaker in stereo operation... -
Page 6: Quick Start
ARGO Quick Start Make all initial connections with all the equipments powered off, and ensure that all the main volume controls are turned completely down. 1). Connect one side of the signal cable at your audio mixer into output left / right (with Stereo- Jack or XLR) and the other side of the cable into the line input Stereo-Jack) of your active speaker cabinet. -
Page 7: Rigging
ARGO Rigging The ARGO series speaker cabinet also provides the suspension points for installation. (M10 1.5PH LENGTH: 30mm). For further details, please refer to the right illustration(OPTIONAL FUNCTIONAL) Eye bolt Suspension Point The floor use is as a function of a monitor when the angle is 45... -
Page 8: Panel Description
(1) BI-POLAR MAIN POWER SWITCH (2) AC POWER SOCKET WITH MAIN FUSE (3) LINE/MIC INPUT ON COMBO CONNECTOR (ARGO 8A /10A ONLY LNE IN ) (4) MIX OUT ON XLR CONNECTOR (ARGO 8A /10A ONLY LINK) (5) "INPUT SENSITIVITY" SWITCH FOR LINE & MIC... - Page 9 ARGO Panel Description USB PLAYER (a) Insert USB player (b) Display the status of USB playing (c) Press this key to start playing or Press this key to pause (d) Play the last song or decrease the volume after pressing 2 seconds (e) Play the next song or increase the volume after pressing 2 seconds REPEAT MODE In the opening or playing state, press this key to select the four circling modes in order:...
-
Page 10: Frequency Response Diagram
ARGO ARGO8A/8A-MP +110 +105 +100 ARGO10A/10-MP +110 +105 +100... - Page 11 ARGO ARGO12A / 12A-MP +110 +105 +100 ARGO15A / 15A-MP +110 +105 +100...
-
Page 12: Wire Connections
ARGO... -
Page 13: Technical Specifications
ARGO Technical Specifications Model Active ARGO 8A / 8A-MP 2-Way Active Vented Speaker System Type Transducer Low 8" Woofer, 1.5"voice coil 1" Ferrite Twitter, 1" Voice Coil Transducer Driver Horn Coverage H XV 90 H x 45 V Frequency Response... - Page 14 ARGO Technical Specifications Model Active ARGO12A / 12A-MP 2-Way Active Vented Speaker System Type Transducer Low 12" Woofer, 2" Voice Coil 1" Neodymium Driver, 1" Voice Coil Transducer High Horn Coverage H XV 90 H x 45 V Frequency Response 55Hz-20KHz (-6dB) Crossover Frequency 3500Hz...
-
Page 15: Warranty
ARGO... - Page 18 ARGO 8A/10A/12A/15A ARGO 8A-MP/10A-MP/12A-MP/15A-MP ARGO...
