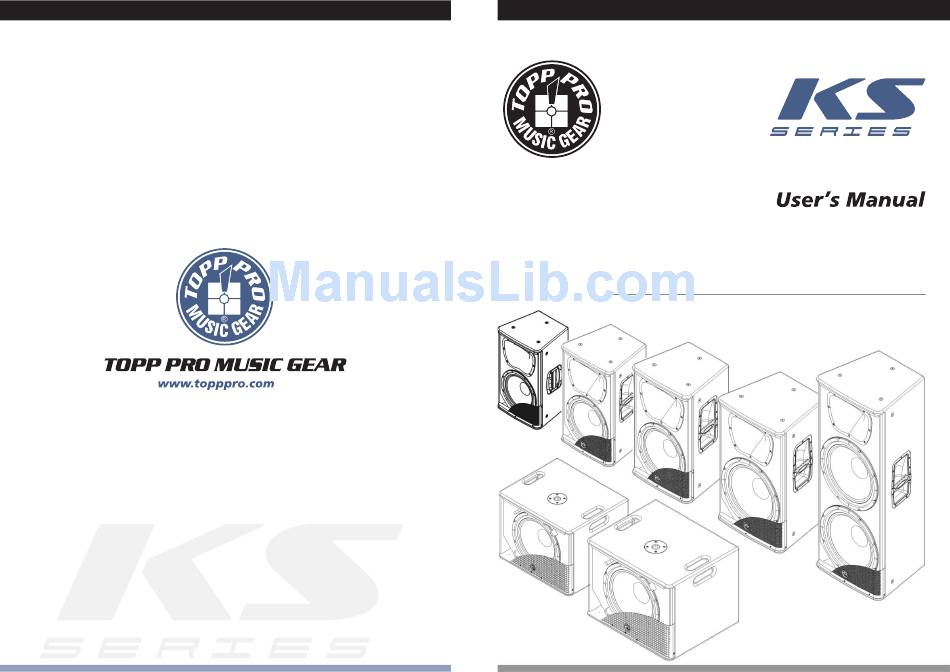

- Page 1 ACTIVE SPEAKER CABINET KS8A/10A/12A/15A/215A KS15A/18A SUB NF03787-1.0...
- Page 3 9. GUARANTEE....................................10. NOTES * KS8A, KS10A are Active Speakers for professional use, they can be used in following electromagnetic environment: residential, commercial and light industrial, urban outdoors. They are the apparatus Not intended for rack mounting. * For KS8A, KS10A, the audio input line length is less than 10m.
- Page 4 Thank you for choosing TOPP PRO. The new TOPP PRO MUSIC GEAR KS series cabinets have been designed to provide a cost effective high grade solution while maintaining high quality construction and optimum components. The KS8A/10A/12A/15A/215A are designed lightweight powered loudspeaker systems, adopting an all new, 1000Watt continuous Class D power module. KS 8A/10A/ 12A/15A/215A also break from the traditional loudspeaker paradigm, every model is fit with the identical 1.75"...
- Page 5 KS8A/10A/12A/15A/215A (1) Gnd switch LINE IN LINK VOLUME (2) Mic/line in with combo (3) Link on XLR SIGNAL KS SERIES LINE LIMIT SHIELD (4) Volume control POWER ACTIVE SPEAKER CABINET CLASS D BI-AMP. PROCESSOR (5) Main power switch (6) Input AC power socket with AC fuse...
- Page 6 KS8A/10A /12A/15A KS8A/10A/12A/15A 110-120V~50/60Hz O 220-240V~50/60Hz Tripod Tripod Tripod Tripod mount mount mount mount KS215A KS215A 110-120V~50/60Hz O 220-240V~50/60Hz...
- Page 7 7) Use PFL function to get the proper input level for the mixer, and adjust the Main Mix Level. 8) After using ,turn off your active speaker cabinets first, then the mixer. 110-120V~50/60Hz or 220-240V~50/60Hz KS8 /10 /12 /15A KS8A/10A/12A/15A LINE IN LINE IN Pole...
- Page 9 KS12A +110 +100 KS15A +110 +100 KS215A +110 +100...
- Page 12 Model Active KS8A System Type 2-Way Active Vented Speaker with DSP Transducer Low 8" Woofer, 2"voice coil Transducer Driver 1" Compression Driver, 1.75" Voice Coil Frequency Response (-6dB) 60Hz-20KHz At 2K Hz with 24db filter slope, Linkwitz-Riley Type Crossover Frequency Max SPL 124dB Max.
- Page 13 KS12A Model Active System Type 2-Way Active Vented Speaker with DSP Transducer Low 12" Woofer, 3"voice coil Transducer Driver 1" Compression Driver , 1.75" Voice Coil 50Hz-20KHz Frequency Response (-6dB) At 1.5KHz with 24db filter slope, Linkwitz-Riley Type Crossover Frequency Max SPL 128dB AMP Power Output...
- Page 14 Model Active KS215A System Type 2-Way Active Vented Speaker with DSP Transducer Low 2*15" Woofer, 3"voice coil Transducer Driver 1" Compression Driver , 1.75" Voice Coil Frequency Response (-6dB) 45Hz-20KHz Crossover Frequency At 1.8KHz with 24db filter slope, Linkwitz-Riley Type Max SPL 133dB AMP Power Output...
- Page 15 KS15A SUB Model Active System Type Active subwoofer AMP Power Output Class D 1000W Transducer Low 15" Woofer, 3"Sandwich V.C With Long excursion Max SPL 128dB Max. Active Crossover BandPass type 12dB/oct. under analog processor Frequency Response (-6dB) 45Hz-120Hz under analog processor Input Connector In-Left/Mono(COMBO)Right(XLR-F)/Out-Left/Mono Right(XLR-M)/ Link-Left/Mono-Right(XLR-M)Bananced(15K Ohms)
