19" Rackmount (2U)
•
High power output
•
Combo XLR/6.3mm jack and RCA inputs
•
Speaker, 6.3mm jack and binding-post outputs
•
Fan cooled
•
Output circuit overload protection
•
Mains powered via IEC connector
•
SPECIFICATIONS
Output Max per channel @ 4Ω
Output RMS per channel @ 4Ω
Output Max per channel @ 8Ω
Output RMS per channel @ 8Ω
Dimensions
Weight (unpacked)

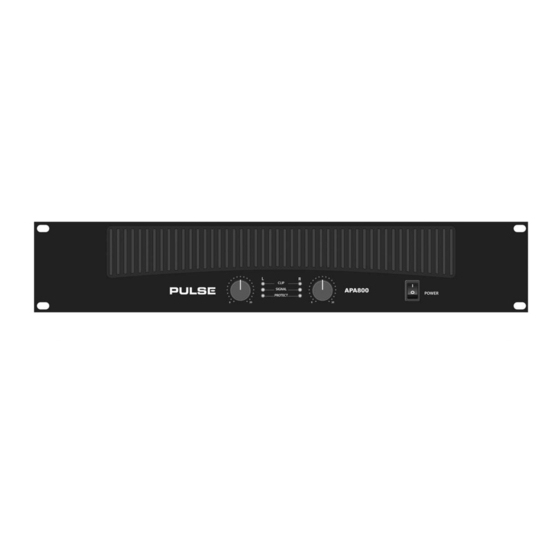

APA Series Power Amplifiers
APA200, APA500, APA800
APA200
200W
100W
140W
70W
88 x 482 x 270mm
6.8kg
APA500
APA800
500W
800W
250W
400W
340W
540W
170W
270W
88 x 482 x 340mm
88 x 482 x 340mm
9.1kg
12.3kg
www.pulse-audio.co.uk
| APA Series User Manual
Advertisement
Table of Contents
Related Manuals for Pulse APA200
Summary of Contents for Pulse APA200
- Page 1 APA Series Power Amplifiers APA200, APA500, APA800 19” Rackmount (2U) • High power output • Combo XLR/6.3mm jack and RCA inputs • Speaker, 6.3mm jack and binding-post outputs • Fan cooled • Output circuit overload protection • Mains powered via IEC connector •...
- Page 2 INTRODUCTION Thank you for purchasing this Pulse APA-series power amplifier. This product is intended to give long term, reliable service in normal usage. Please read these instructions before use to avoid incorrect operation and outline the functions and controls. FRONT PANEL...
- Page 3 CONNECTION EXAMPLE www.pulse-audio.co.uk | APA Series User Manual...
- Page 4 Turn down the input level from audio source Check audio source file being played is not distorted Turn down channel gain controls If protect mode is active, refer to qualified service personnel Errors and omissions excepted. Copyright© 2014. Pulse www.pulse-audio.co.uk | APA Series User Manual...
