- Page 1 120W MIXER AMPLIFIER MODEL: PLS00581...
- Page 2 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION • When using electrical appliances basic safety precautions should always be followed. • Check that the voltage indicated on the rating plate corresponds with that of the local network before connecting the appliance to the mains power supply.

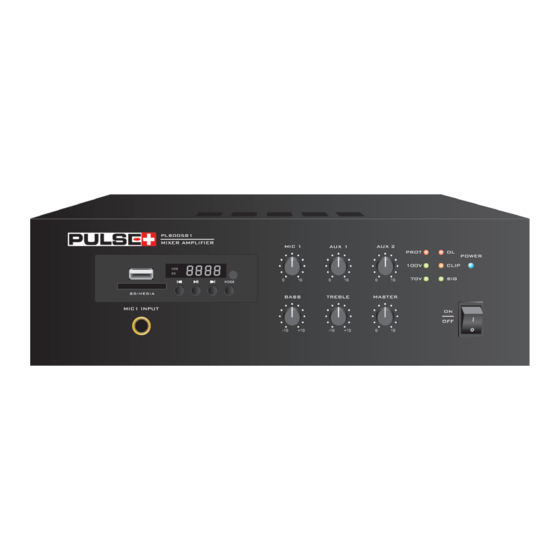

- Page 3 PRODUCT OVERVIEW Front Panel 1. MIC1 input 10. ON/OFF 2. SD/MMC card port 11. POWER indicator 3. Previous track/volume down 12. 70v/100V overload/clip warning 4. Play/pause 13. AUX2 line input volume control 5. Next track/volume up 14. AUX1 line input volume control 6.
- Page 4 REMOTE CONTROL 1. Power switch 2. Mode 3. Previous/next 4. Volume increase/decrease 5. 0 to 9 numbered buttons 6. Play/pause 7. Sound effect control 8. Mute 9. Cycle play button 10. Pause Normal usage distance of remote control: 8 metres Angle: Horizontal ±...
- Page 5 70V/100V Speaker Output • Polarity is important and must be correct on the speaker connections. • Make sure the equipment is powered off before connecting any speakers. • Set the voltage output switch to either 70V or 100V as required and connect the speakers as shown.
- Page 6 BLOCK DIAGRAM SPECIFICATION Model PLS00581 120W Power output 70V/100V Loudspeaker output MIC IN: +5mV, unbalanced 6.35mm (¼”) jack plug. Input sensitivity & source impedance AUX IN: 350mV, RCA. Bass: 100Hz ± 10dB Tone Treble: 10kHz ± 10dB 80Hz~16kHz (-3dB) Frequency response ≥...
