- Page 1 StorCase Technology ® Rhino ® RJR110 IDE Removable Drive Enclosure User's Guide Part No. D89-0000-0258 A02 July 2005 StorCase Technology, Inc. 17600 Newhope Street Fountain Valley, CA 92708-9885 Phone (714) 438-1850 (714) 438-1847...
- Page 2 LIMITED WARRANTY...
- Page 4 Declaration of Conformity...
- Page 5 INTRODUCTION Receiving Frame Carrier Figure 1: RhinoJR RJR110 Removable Drive Enclosure...
-
Page 6: Front Panel

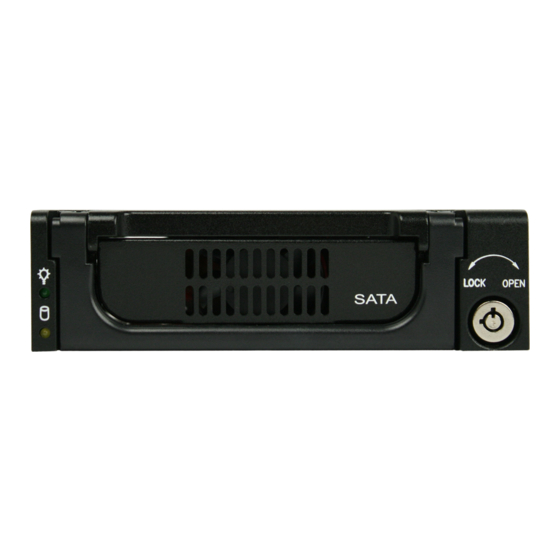

Front Panel Power Drive Activity Carrier Handle Lock Figure 2: Front Panel... -
Page 7: Rear Panel
Rear Panel Connector DC Power Connector Figure 3: Rear Panel... - Page 8 INSTALLATION Close-Up View of Screw Turn Screw Clockwise Slide Cover Figure 4: Cover Removal...
- Page 9 Loosen Screw to Adjust Adjust if Necessary Figure 5: Adjusting the DC Power Connector Bottom-Mount Drive IDE Drive (Not Included) Figure 6: Installing a Drive into the Carrier...
- Page 10 Installing the Receiving Frame...
-
Page 11: Specifications
SPECIFICATIONS Environmental Specifications Operating Storage Ambient Temperature 0° C to 40° C -40° C to 70° C Relative Humidity 20% to 80% 15% to 90% -1000 to 10,000 ft -1000 to 40,000 ft Altitude -305m to 3048m -305m to 12195m Non-condensing with maximum gradient of 10% per hour 11 msec pulse width 1/2 sine wave Physical...
