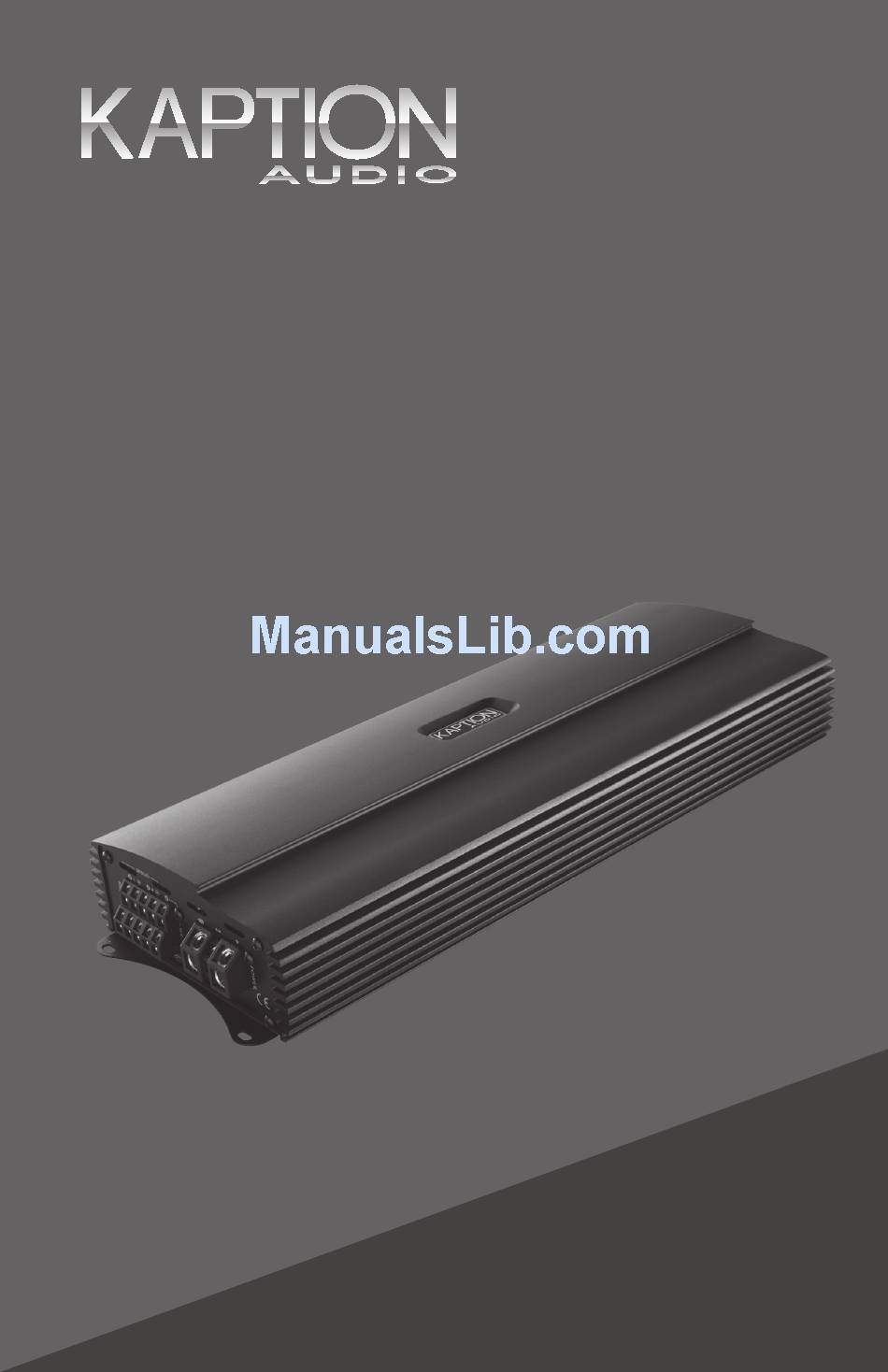

- Page 1 Multi Channel Amplifier Owner’s Manual 570-AZR400X4 570-AZR700X5...
-
Page 2: Warranty
We always recommend you have these amplifiers installed by an authorized Kaption Audio dealer. Kaption audio amplifiers come with a ONE-YEAR PARTS AND LABOUR LIMITED WARRANTY. Features: •... -
Page 3: Pre-Installation
Multi Channel Amplifiers ArNINg NvEsTIgATE ThE lAyOUT Of yOUr AUTOmOBIlE ThOrOUghly BEfOrE drIllINg Or CUTTINg ANy hOlEs sE ExTrEmE CArE WhEN yOU WOrK NEAr ThE gAs TANKs gAs Or hydrAUlIC lINEs ANd ElECTrICAl WIrINg lWAys mAKE sUrE ThE mplIfIEr Is sECUrEly mOUNTEd OUNTINg ThE mplIfIEr sECUrEly TO ThE AUTOmOBIlE WIll prEvENT dAmAgE TO ThE CAr Or INjUry TO A pErsON... - Page 4 Multi Channel Amplifiers 570-AZR400X4 Parts List • 4-Channel, 400w Amplifier • High level-In wire adapter • Hardware pack 10.57 2.40 11.73 6.06 570-AZR700X5 Parts List • 5-Channel, 700w Amplifier • High level-In wire adapter • Wired Bass remote control •...
- Page 5 Multi Channel Amplifiers Controls and wiring locations 570-AZR400X4 570-AZR700X5 1. Speaker Terminals 4-Channel Terminals outputs to co-axial speakers. See wiring diagrams. 2. Sub-Woofer Terminal (570-AZR700X5 only) Terminal output for sub-woofer channel. See wiring diagrams. 3. +12 Volt Power connection. Th amplifier must be connect to the positive terminal on the vehicle’s battery.
- Page 6 NOT CONNECT ThE AmplIfIEr TO ’ ThE vEhIClE s BATTEry grOUNd TErmINAl 570-AZR400X4 570-AZR700X5 16 17 6. 4-Channel RCA Input Jacks RCA Input jacks are for use with source units having RCA or low level output. Source units with an output signal level of minimum 200mV may be used.
- Page 7 The operating range is from MIN to MAX. This is NOT a volume control! 10. Crossover Filter (570-AZR400X4 only) These controls allow control over the frequencies played for the rear channels. There is an option for Low Pass Filter, Full Range or High Pass Filter.
-
Page 8: Wire Connections
Multi Channel Amplifiers 16. LPF (Low Pass Filter) Sub-woofer Control (570-AZR700X5 only) The LPF controls the low pass crossover to select the desired frequency. The frequency can be adjusted from 40Hz to 220Hz. 17. Wired Bass Remote Jack (570-AZR700X5 only) Provides a wired remote control to the drivers seated location. - Page 9 It is important that a main fuse is installed a maximum of 8” from the battery. Model 570-AZR400X4 570-AZR700X5 Cable Size 4ga AWG 4 - 2ga AWG...
- Page 10 Securely mount the amplifier. If everything is in order, reconnect the vehicle’s negative battery connection and begin following the Feature Setup and Adjustments steps. Speaker wiring connections X-OVER X-OVER 570-AZR400X4 4 Speaker setup X-OVER X-OVER - 9 -...
- Page 11 Multi Channel Amplifiers X-OV 570-AZR400X4 / 570-AZR700X5 Power and ground setup FUSE X-OV SOURCE UNIT X-OVER X-OVER 570-AZR700X5 4 Speaker + Sub-Woofer setup X-OVER X-OVER SUB-WOOFER - 10 -...
-
Page 12: Troubleshooting Guide
Multi Channel Amplifiers Troubleshooting Guide Problem Causes and solutions Power indicator is not lit A. Check +12 volt wire fuse blown and replace if needed B. Check remote turn on +12V and GND connections ensure the ground is secured to clean metal on the vehicle chassis. C. -
Page 13: Specifications
Multi Channel Amplifiers Specifications Model 570-AZR400X4 570-AZR700X5 Description 400W Multi Channel 700W Multi Channel Continuous 4Ω Stereo 70W X4 RMS 85W X4 RMS + Power @ 275W Sub-Woofer 14.4V 2Ω Stereo 95W X4 RMS 125W X4 RMS + 400W Sub-Woofer... -
Page 14: Limited Warranty Information
In order to receive service, proof of purchase is required stating the customers name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced with a product deemed to be equivalent at Kaption Audio’s discretion. What is not covered 1. -
Page 15: Warranty Registration Card
KAPTION AUDIO PRODUCTS COME WITH A ONE-YEAR PARTS AND LABOUR LIMITED WARRANTY. This warranty covers the original purchaser of a Kaption Audio product, purchased from an authorized Kaption Audio dealer. In order to receive service, proof of purchase is required stating the customers name, dealer name, product purchased and date of purchase. - Page 16 Kaption Audio 95 Cousins Drive Aurora, Ontario Canada, L4G 1B5 www.KaptionAudio.com 866-Kaption (527-8466) Designed in Canada; Made in China R0 (04/15)
