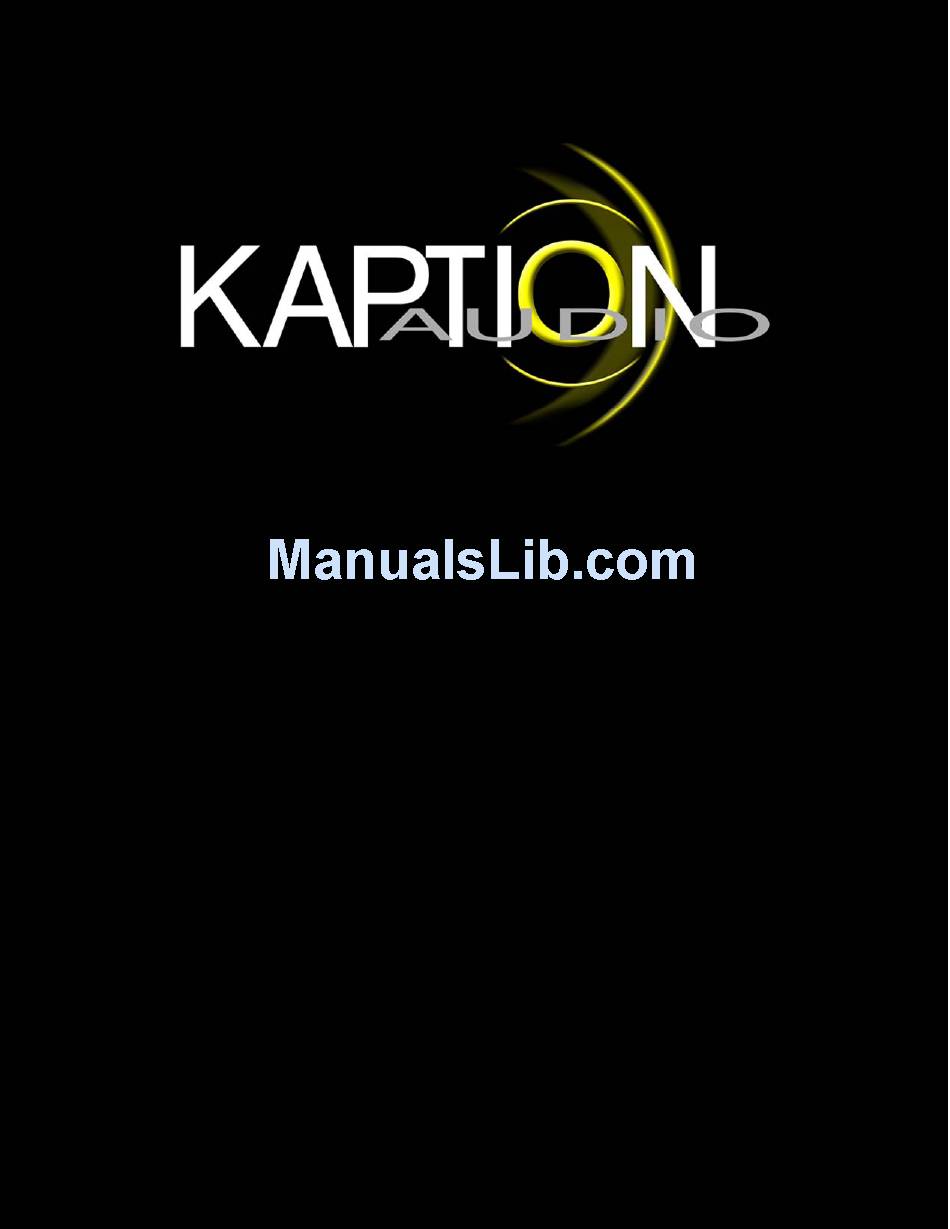

- Page 1 Digital Monoblock Amplifiers D-500.1 D-1000.1D OWNERS MANUAL & INSTALLATION GUIDE...
- Page 2 Car Audio. It is highly recommended that a Kaption Audio authorized dealer installs your amplifier in order to ensure the best quality sound. Kaption Audio amplifiers can reproduce high sound pressure levels that can cause permanent damage to the human ears.
- Page 3 Features • Digital class “D” mono block amplifier • 2 channels input / MONO output • Nickel plated high current drain power terminals & speaker terminals • Nickel plated RCA inputs & outputs • Soft remote ON / OFF circuitry •...
- Page 4 Functions 1. Power Connection Terminal • Battery + +12V power cable must be connected directly to the positive terminal of the battery with an in-line protection fuse, not to the electrical system of the car (i.e., fuse block). • REM: Remote Turn on Connect this terminal to the source unit’s power antenna or remote turn on output.
- Page 5 4. Bridge Module • Allows for the two amplifiers to be run in series and achieve double the output into one load. 5. Power Indicate LED • Lights blue when the power turns on. 6. Protection Indicate LED • Lights red when the short protection operates. 7.
- Page 6 13. Subsonic filter selection switch • Subsonic filter ON/OFF control switch 14. Phase Switch • Adjust the speaker phase to either 0 or 180 degrees. 15. Variable Subsonic filter frequency Adjustment • Adjust from 15Hz to 50Hz with a slope of 24dB per octave. This allows for the attenuation of frequencies that are mostly inaudible and cause unnecessary strain on the amplifier.
- Page 7 Power Supply Connections All power connections are made via a nickel-plated terminal strip at one end of the amplifier chassis. It is highly recommended that you read the following precautions and contact you’re nearest authorized dealer if you are unsure of any details. Before installations make sure the source unit (i.e., your radio in the vehicle) power switch is in the OFF position.
- Page 8 Make sure that your vehicle’s electrical system (i.e., alternator, battery, etc.) Is capable of handling the additional load. If you are planning a multi-amplifier system, you may need to add a second battery and possibly upgrade the alternator with a higher output rated model. Consult your authorized dealer for recommendations.
- Page 9 Wiring Diagram (single amplifer setup) Input wiring diagram Speaker wiring diagram...
- Page 10 Bridging mode using two amplifiers...
-
Page 11: Specifications
This will achieve double the output into one load. Any other form of connection may cause serious damage to the products or vehicle and may not be covered under warranty. Please follow all wiring as illustrated or contact an authorized Kaption Audio dealer. Specifications D-500.1 D-1000.1... - Page 12 Kaption Audio 399 Four Valley Dr, Unit 27 Concord, Ontario, Canada L4K 5Y7 1-866-KAPTION (527-8466) 3333 391 1 www.kaptionaudio.com...
