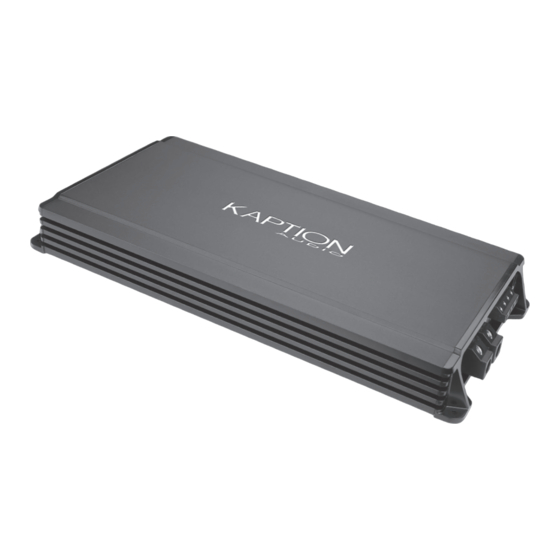

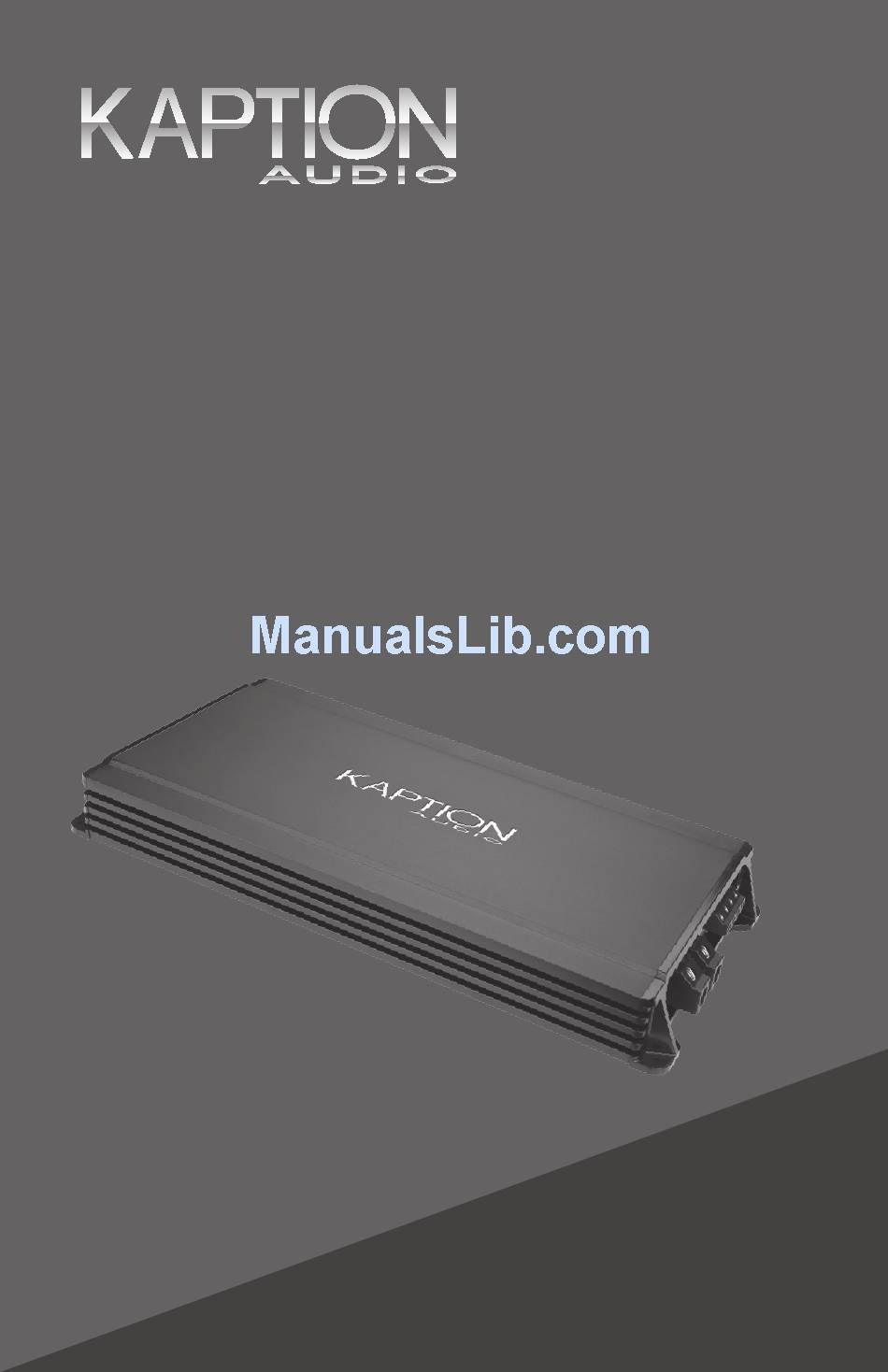

- Page 1 2000W Mono Block Amplifier Owner’s Manual 570-MKZ2000X1...
-
Page 2: Limited Warranty
2000w Mono Block Amplifier Introduction: Congratulations on your new purchase of Kaption Audio amplifier. These amplifiers are engineered to reproduce music that is so detailed, you will hear music in a whole new truly superior product. We always recommend you have these amplifiers installed by an authorized Kaption Audio dealer. -
Page 3: Pre-Installation
2000w Mono Block Amplifier ArNINg NvEsTIgATE ThE lAyOUT Of yOUr AUTOmOBIlE ThOrOUghly BEfOrE drIllINg Or CUTTINg ANy hOlEs sE ExTrEmE CArE WhEN yOU WOrK NEAr ThE gAs TANKs gAs Or hydrAUlIC lINEs ANd ElECTrICAl WIrINg lWAys mAKE sUrE ThE mplIfIEr Is sECUrEly mOUNTEd OUNTINg ThE mplIfIEr sECUrEly TO ThE AUTOmOBIlE WIll prEvENT dAmAgE TO ThE CAr Or INjUry TO A pErsON... - Page 4 2000w Mono Block Amplifier 570-MKZ2000X1 Parts List • 2000w Mono Block Amplifier • Wired Bass remote control • Hardware pack [510] 20.08 [55] 2.16 [236] 9.29 - 3 -...
-
Page 5: Speaker Terminals
2000w Mono Block Amplifier Controls and wiring locations 1. Speaker Terminals Terminals outputs to sub-woofer(s). See wire diagrams for the type of sub-woofer the amplifier will be connected to. 2. +12 Volt Power connection. Th amplifier must be connect to the positive terminal on the vehicle’s battery. - Page 6 2000w Mono Block Amplifier 5. RCA Input Jacks RCA Input jacks are for use with source units output signal. Source units with an output signal level of minimum 200mV to 9V may be used. (See wiring diagrams) 6. RCA Output Jacks RCA Output jacks are for use to connect a second amplifier.
- Page 7 2000w Mono Block Amplifier 13. Input Slave/Output Master Mode This mode switch is used to combine two amplifiers together to power large sub-woofer(s) For a single amplifier configuration, use the mode switch in the “Output Master” position. For a dual amplifier configuration, Master amplifier is the first unit connected to the source unit.
- Page 8 It is important that a main fuse is installed a maximum of 8” from the battery. Model 570-MKZ2000X1 Cable Size 0ga AWG Fuse 250 amps •...
-
Page 9: Speaker Wiring Diagram
2000w Mono Block Amplifier Speaker wiring diagram Single Woofer setup RIGHT (R) LEFT (L) SLAVE MASTER SOURCE UNIT RIGHT (R) LEFT (L) SLAVE MASTER SOURCE UNIT FUSE SOURCE UNIT Single Amplifier and Dual Woofer setup FUSE SOURCE UNIT RIGHT (R) LEFT (L) SLAVE MASTER... - Page 10 SLAVE MASTER LEFT (L) SOURCE UNIT SLAVE AMPLIFIER SLAVE MASTER 570-mKz2000x1 Nly UsE TWO AmplIfIErs TOgEThEr TO BUIld A AsTEr lAvE CONfIgUrATION O NOT UsE AmplIfIErs Of dIffErENT TypEs Or mOdEls TOgEThEr Choose one Amplifier and set the “INPUT SLAVE/OUTPUT MASTER”...
- Page 11 2000w Mono Block Amplifier FUSE SOURCE UNIT SUB-WOOFER FUSE SOURCE UNIT Connect the sub-woofer with appropriate wires to the terminal block (SPEAKER OUTPUT - and +) of both amplifiers. Connect the (-) terminal on the master amp to the (+) terminal on the speaker, Bridge the master ‘s (+) terminal to the slave amp’s (+) Terminal.
-
Page 12: Troubleshooting Guide
2000w Mono Block Amplifier Troubleshooting Guide Problem Causes and solutions Power indicator is not lit A. Check +12 volt wire fuse blown and replace if needed B. Check remote turn on +12V and GND connections ensure the ground is secured to clean metal on the vehicle chassis. -
Page 13: Specifications
2000w Mono Block Amplifier Specifications Model 570-MKZ2000X1 Description 2000W Mono Block Continuous 1Ω load 2000w Power @ 14.4V 2Ω Load 1500w 4Ω Load 850w Features Input Sensitivity 0.2V-9V Frequency Response 15Hz to 250Hz Low Pass Filter 35Hz to 250Hz Subsonic Filter... -
Page 14: Limited Warranty Information
In order to receive service, proof of purchase is required stating the customers name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced with a product deemed to be equivalent at Kaption Audio’s discretion. What is not covered 1. -
Page 15: Warranty Registration Card
KAPTION AUDIO PRODUCTS COME WITH A ONE-YEAR PARTS AND LABOUR LIMITED WARRANTY. This warranty covers the original purchaser of a Kaption Audio product, purchased from an authorized Kaption Audio dealer. In order to receive service, proof of purchase is required stating the customers name, dealer name, product purchased and date of purchase. - Page 16 Kaption Audio 95 Cousins Drive Aurora, Ontario Canada, L4G 1B5 www.KaptionAudio.com 866-Kaption (527-8466) Designed in Canada; Made in China R0 (06/15)
