R-3S56
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. CLOCK APPERARS ON DISPLAY
NOTE: "
" indicates components with potential above 250V.

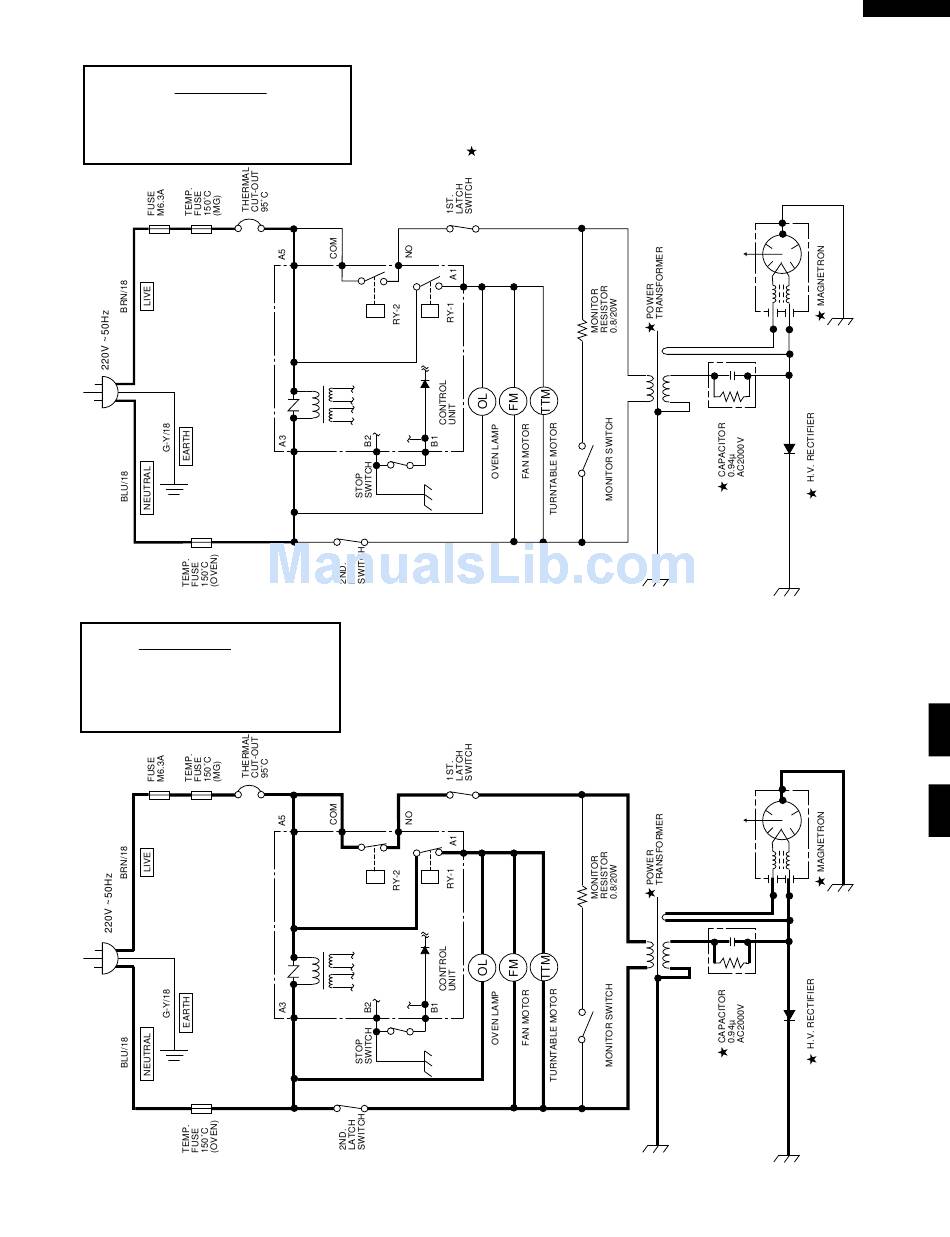

Figure O-1 Oven Schematic-OFF Condition
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. COOKING TIME PROGRAMMED
3. "START" KEY TOUCHED
Figure O-2 Oven Schematic-ON Condition
