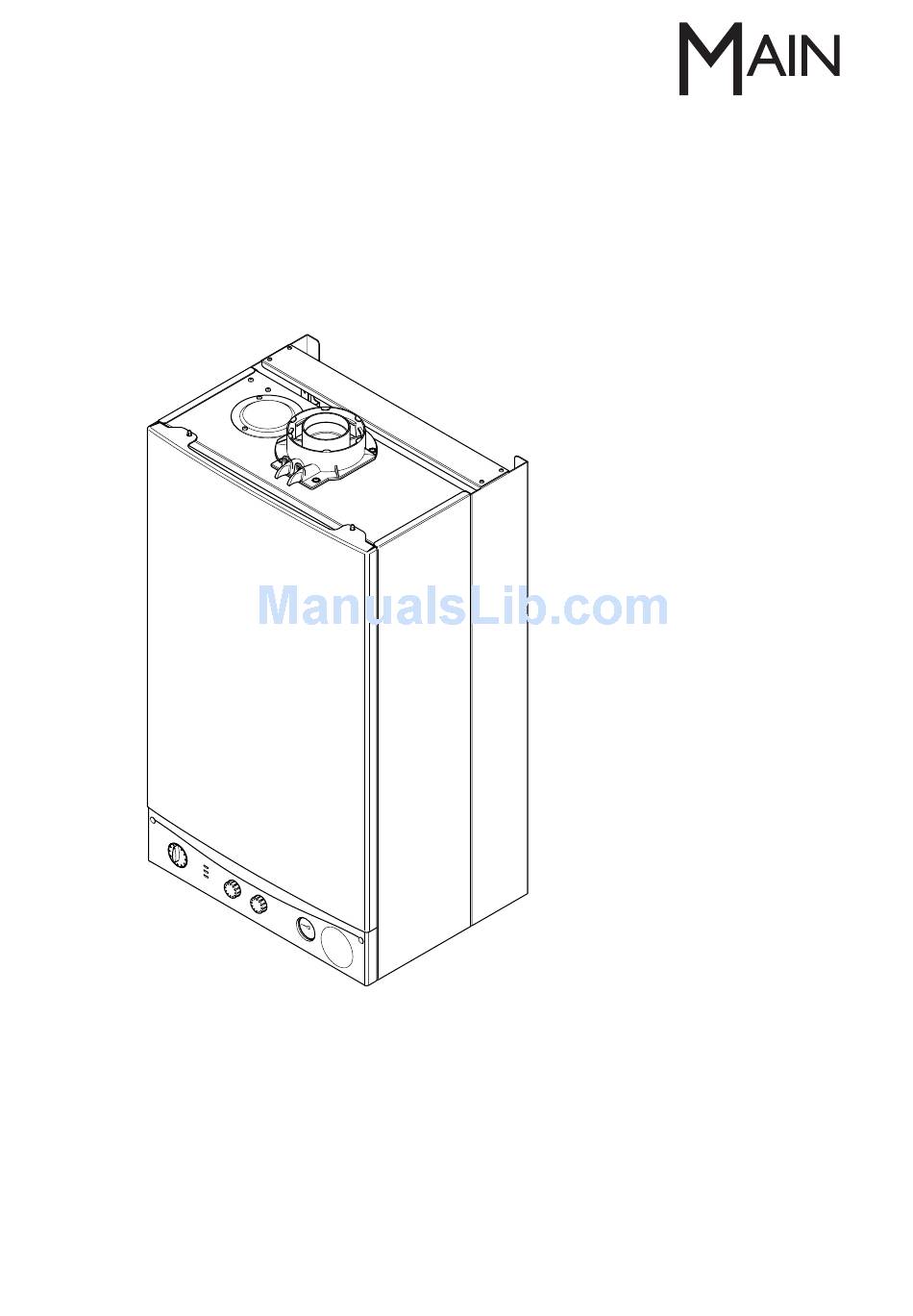

- Page 1 Combi 24 HE User’s Guide and Important Warranty Information Please keep these instructions in a safe place. If you move house, please hand them over to the next occupier. © Baxi Heating UK Ltd 2009...
-
Page 2: Table Of Contents
Where fitted, user label for optional timer to be applied here. © Baxi Heating UK Ltd 2009 All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means, or stored in any... -
Page 3: Quick Reference Guide
Central Heating System Pressure - The normal operating water pressure is shown when the needle is between 1 and 2.5 bar. If the pressure exceeds 3 bar the safety pressure valve will operate and a fault is indicated. Contact your Installer. © Baxi Heating UK Ltd 2009... -
Page 4: Troubleshooting
Indicator Burner On Flame Failure Power On If the reading falls below 1 bar repressurise the system as Turn the ON/OFF/Reset described in section 3.1. Selector Switch to Reset. If boiler does not Reset © Baxi Heating UK Ltd 2009... - Page 5 INSTALLER OR SERVICE ENGINEER. If you don’t know what you need to do to get the boiler to light, or need help with the system and controls, contact your installer as soon as possible. © Baxi Heating UK Ltd 2009...
-
Page 6: Repressurising The System
0.5 mark both taps can be closed. 7. Undo the two wing nuts, remove the loop and refit the blanking cap. Put the loop in a safe place for future use. Loop Connected © Baxi Heating UK Ltd 2009... -
Page 7: Fault Indication
4.0 Fault Indication Fault Indication 1. Your Main Combi 24 HE has three neon indicators. The upper two function as boiler on and fault indicators. 2. Depending on the nature of the fault the upper two neons Burner On will illuminate, go off or flash. -
Page 8: Clearances & Cleaning
Cleaning the Outer case 5mm Min Fig. 4 The painted panels should be wiped with a damp cloth In Operation and then dried completely. DO NOT USE ABRASIVE CLEANING AGENTS. © Baxi Heating UK Ltd 2009... -
Page 9: Legislation
Checklist after each service. The Benchmark Checklist may be required in the event of any warranty work and as supporting documentation relating to home improvements in the optional documents section of the Home Information Pack. © Baxi Heating UK Ltd 2009... -
Page 10: Notes
7.0 Notes © Baxi Heating UK Ltd 2009... -
Page 11: Emergency
Fig. 6 towards the wall (Fig. 7). 3. Call your Installer or Service Engineer as soon as possible. Heating Flow, Heating Return and Mains Water Inlet Isolating Valves © Baxi Heating UK Ltd 2009... -
Page 12: Warranty & Service
12 Months Free Warranty - register today To receive your 12 months free warranty please complete the form supplied with the boiler or simply call heateam, the service of Baxi Heating UK Ltd on 08706 000 653. Our promise to you...
