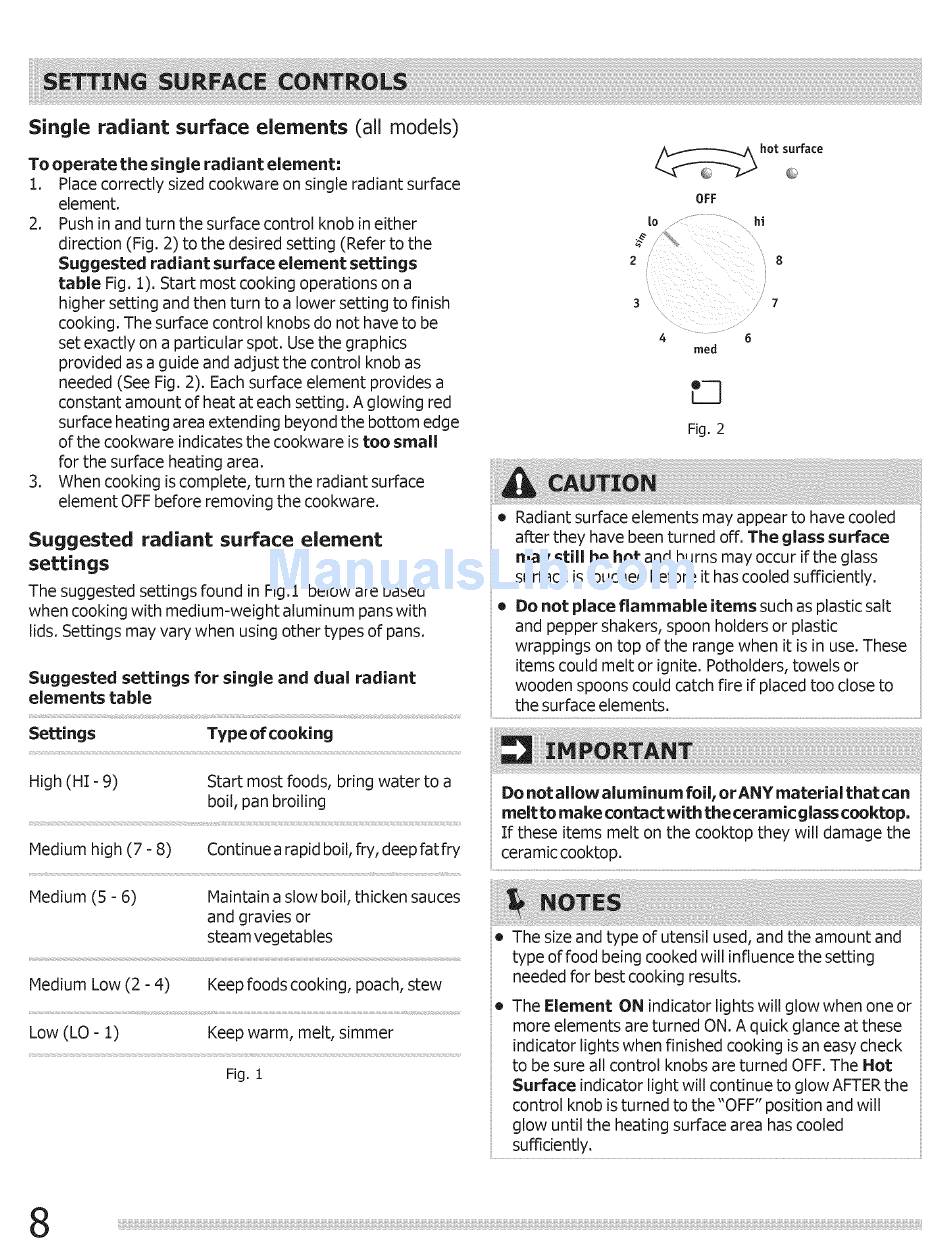

Setting Surface Controls; Setting Single Radiant Surface Elements - Frigidaire FGEF3030PFB Use & Care Manual

Hide thumbs

Advertisement

Single
radiant
surface
elements
(all models)
To operate the single radiant element:
1.
Place correctly sized cookware on single radiant surface
element.
2.
Push in and turn the surface control knob in either
direction (Fig. 2) to the desired setting (Refer to the
Suggested radiant surface element settings
table Fig. 1). Start most cooking operations on a
higher setting and then turn to a lower setting to finish
cooking. The surface control knobs do not have to be
set exactly on a particular spot. Use the graphics
provided as a guide and adjust the control knob as
needed (See Fig. 2). Each surface element provides a
constant amount of heat at each setting. A glowing red
surface heating area extending beyond the bottom edge
of the cookware indicates the cookware is too small
for the surface heating area.
3.
When cooking is complete, turn the radiant surface
element OFF before removing the cookware.
Suggested
radiant
surface
element
settings
The suggested settings found in Fig.1 below are based
when cooking with medium-weight aluminum pans with
lids. Settings may vary when using other types of pans.
Suggested
settings
for single and dual radiant
elements
table
Settings
Type of cooking
het surface
@
OFF
to .....
hi
2 /'
s
7
\
; .....
4
6
rned
Fig. 2
Radiant surface elements may appear to have cooled
after they have been turned off. The glass surface
may still be hot and burns may occur if the glass
surface is touched before it has cooled sufficiently.
Do not place flammable
items such as plastic salt
and pepper shakers, spoon holders or plastic
wrappings on top of the range when it is in use. These
items could melt or ignite. Potholders, towels or
wooden spoons could catch fire if placed too close to
the surface elements.
High (HI - 9)
Start most foods, bring water to a
boil, pan broiling
Medium high (7 - 8)
Continuea rapid boil, fry, deepfatfry
Medium (5 - 6)
Maintain a slow boil, thicken sauces
and gravies or
stea m vegeta bles
Medium Low (2 - 4-)
Keep foods cooking, poach, stew
Low (LO - 1)
Keep warm, melt, simmer
Fig. 1
Do not allow alu minu m foil, orANY material
that can
melt to make contact with the ceramic glass cooktop,
If these items melt on the cooktop they will damage the
ceramic cooktop.
The size and type of utensil used, and the amount and
type of food being cooked will influence the setting
needed for best cooking results.
The Element
ON indicator lights will glow when one or
more elements are turned ON. A quick glance at these
indicator lights when finished cooking is an easy check
ii
to be sure all control knobs are turned OFF. The Hot
Surface indicator light will continue to glow AFTER the
control knob is turned to the "OFF" position and will
glow until the heating surface area has cooled
sufficiently.
ii
