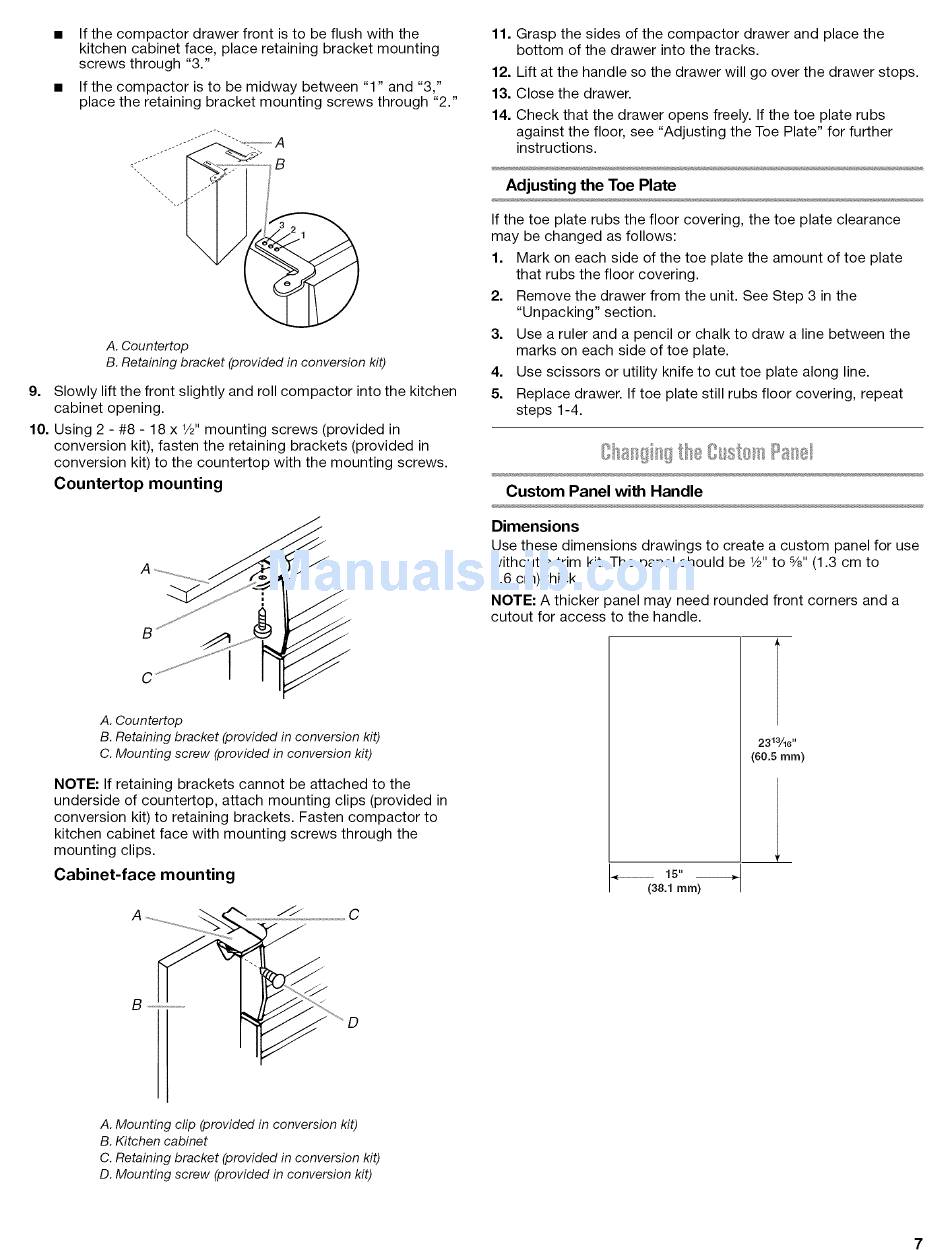

If the compactor
drawer front is to be flush with the
kitchen cabinet face, place retaining bracket mounting
screws through "3."
If the compactor
is to be midway between "1" and "3,"
place the retaining bracket mounting screws through "2."
A. Countertop
B. Retaining bracket (provided in conversion kit)
9. Slowly lift the front slightly and roll compactor
into the kitchen
cabinet opening.
10. Using 2 - #8 - 18 x 1/2"mounting screws (provided in
conversion kit), fasten the retaining brackets (provided in
conversion kit) to the countertop with the mounting screws.
Countertop
mounting
A
B
11. Grasp the sides of the compactor
drawer and place the
bottom of the drawer into the tracks.
12. Lift at the handle so the drawer will go over the drawer stops.
13. Close the drawer.
14. Check that the drawer opens freely. If the toe plate rubs
against the floor, see "Adjusting the Toe Plate" for further
instructions.
Adjusting the Toe Plate
If the toe plate rubs the floor covering, the toe plate clearance
may be changed as follows:
1. Mark on each side of the toe plate the amount of toe plate
that rubs the floor covering.
2. Remove the drawer from the unit. See Step 3 in the
"Unpacking"
section.
3. Use a ruler and a pencil or chalk to draw a line between the
marks on each side of toe plate.
4. Use scissors or utility knife to cut toe plate along line.
5. Replace drawer. If toe plate still rubs floor covering, repeat
steps 1-4.
Custom Panel with Handle
Dimensions
Use these dimensions drawings to create a custom panel for use
without a trim kit. The panel should be 1/2"to 5/8"(1.3 cm to
1.6 cm) thick.
NOTE: A thicker panel may need rounded front corners and a
cutout for access to the handle.
C
A. Countertop
B. Retaining bracket (provided in conversion kit)
C. Mounting screw (provided in conversion kit)
NOTE: If retaining brackets cannot be attached to the
underside of countertop,
attach mounting clips (provided in
conversion kit) to retaining brackets. Fasten compactor
to
kitchen cabinet face with mounting screws through the
mounting clips.
Cabinet-face
mounting
C
D
A. Mounting clip (provided in conversion kit)
B. Kitchen cabinet
C. Retaining bracket (provided in conversion kit)
D. Mounting screw (provided in conversion kit)
