Alphatech BlueGate A User Manual

Gsm gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
A
T
s.r.o
.
LPHATECH
ECHNOLOGIES
Jeremenkova 88, Praha 4, Czech Republic
www.alphatechtechnologies.cz

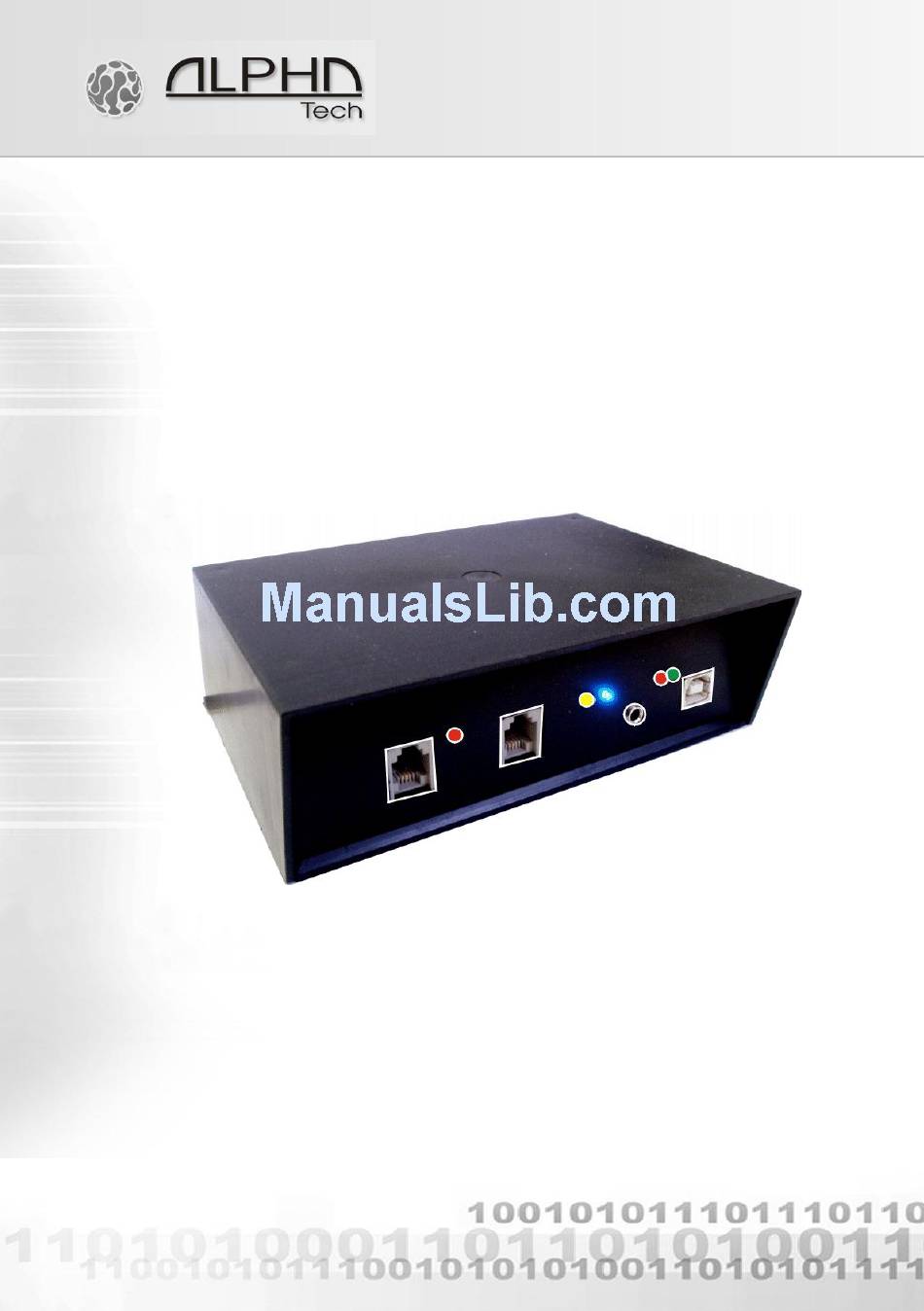

BlueGate A

GSM Gateway

User guide V2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BlueGate A and is the answer not in the manual?

Questions and answers

Related Manuals for Alphatech BlueGate A

Summary of Contents for Alphatech BlueGate A

  • Page 1: Gsm Gateway

    LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz BlueGate A GSM Gateway User guide V2.0...

  • Page 2: Basic Features

    Basic features: Blue gate compact dual band is GSM Gate based on Siemens GSM module TC 35 equipped by a lot of adjustable features increased comfort of service.It is solved by modularity system enables extending of gate features ( CLIP + 16/12kHz charge pulses, Module for connection to extension, FAX module etc..).
  • Page 3 INSTALLATION antenna SIM card holder GSM LED Power supply Phone, PBX AB line RS232 RS232 - - 2...
  • Page 4 By pressing of yellow button remove the SIM card keeper. Insert the SIM card and replace the SIM card keeper. Before inserting the SIM card we recommend checking various mobile phone state of the SIM card (starting with or without PIN, PIN, etc.) and set starting without PIN. When want starting...
  • Page 5 When you inserted SIM card as same as all cables are connected (do not forget that Blue gate is connected on external line not on extension) connect device to main 230V. The LED of „power supply„ is light up . After a few seconds will start flashing a red diod on the board with TC 35 module –...
  • Page 6  The LED „communication to GSM„ is flashing as same as the LED „operation AB“ is lighiting. , in phone is quite. PBX keep the line ON HOOK. By calling to to this line you will remove this problem. Otherwise progress up your manual to your PBX.
  • Page 7 RS232 The Gate is equipped by serial port RS232 for direct control of GSM module Siemens TC35 (or MC35 or MC39 for GPRS). The Gate you can further use ordinary GSM modem for data transmission, internet connection or for SMS messages. When unit is working as GSM modem then is busy for voice connection.
  • Page 8 CONFIGURATION The programming mode is set after acknowledgement dialing to Blue Gate.In the analogue phone is waiting tone. After password inserting is tone changing to programming tone. Then you can programming each features of Blue Gate (via table of programming) Progress of programming: ...
  • Page 9 Notes to each feature 11-19 When you have set some fix-numbers (default is 060, it is GSM operators in Czech republic) through BLUE GATE will dial only numbers starting at this fix-number. At the others received busy tone. When memories will be empty the calling wont be restricted.
  • Page 10 Notes:  Programming is only by tone dial DTMF. Dont forget set even external line at PBX.  Changes are valid after hang up only (finishing of programming mode). It is very important especially in acknowledge character changes- till hang up you must use previous acknowledgement.
  • Page 11 Table of programming       0 0 n n n n Password nnnn to programming mode access 0 0 0 0 1 1 n n n n Memory x for permitted fix number (1 to 4 digits) 1 2 n n n n 1 3 n n n n 1 4 n n n n...
  • Page 12 3 5 n n Number of dialled numeral, after its is dial send immediatelly (lenght of telephone number) nn=00 – function none active nn=01-19 – number of numeral telephone number 3 6 n n Ignoration of dial nn decimal of sec. After picking up nn=00-99 decimal of seconds 3 7 n n n n Storing of PIN 3 8 n...
  • Page 13 The tones at analog line of the Blue Gate – tone of public line + short tone Dial tone  at the end Blue Gate is ready accept of dial Busy tone – repeated short tone  Called number is busy, dont exist, not permitted or service is refused Ringing tone –...
  • Page 14 LED diods signalling Permanent light   Permanent light   Flashing in 2 sec. interval    Flashing in dial tone period    Flashing in 1 sec. period    Permanent light  The Gate is in mode for extension Flashing in 2 sec.
  • Page 15 Technical parametres: Generally Type Blu Gate dual band Operating position various temperature: +5 C ÷ +40 C, Operating conditions humidity: 10% ÷ 80% at 30 C Dimensions (š/v/h) 140 x 150 x 65 mm Weight max.1 kg Part of power supply Supply voltage 230 V (10%) ( adapter) Power input...
  • Page 16 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz s.r.o. LPHATECH ECHNOLOGIES Jeremenkova 88 140 00 Praha 4 Czech Republic VAT: CZ27577350 Company is registered in the Commercial Register administered by the Municipal Court in Prague, Section C, Record 116886 Banking details: Komerční...
