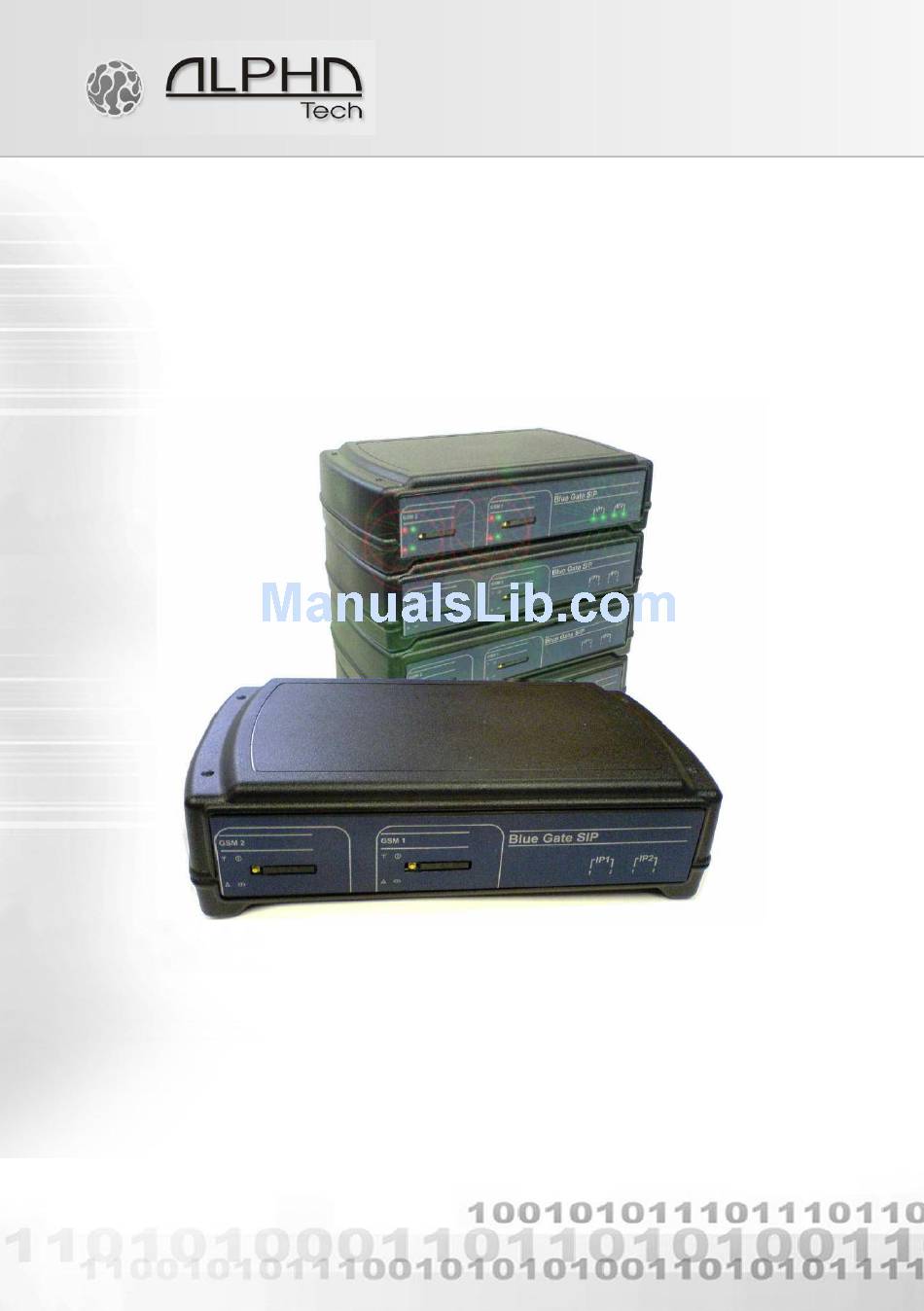

- Page 1 LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz BlueGate SIP VoIP GSM Gate Quick Installation guide v 1.0...
- Page 2 Technical parametres Dimensions 133 x 233 x 60 mm Weight 850 g Operating position various Operating condition temperature: +5°C ÷ +40° C humidity: 10% ÷ 80% při 30° C Power supply 9-15V ss or 8-12Vst, 1.5 A VoIP • Ethernet – 10/100Mb with standard BaseT and 100BaseTx, connector RJ45 •...
- Page 3 • PIN protection of SIM card • GSM 900 (class 4 – 2 W) • GSM 1800 (class 1 – 1 W) • Antenna connector SME/SMA, 50 • SIM card: 3/1,8 V • 2 GSM channels Installation Insert SIM cards. Before SIM card inserting check their status in mobile phone (starting with PIN or without PIN).
- Page 4 Connect: GSM antennas LAN cable Power supply – connect at end Green LED during operation indicates GSM modules Error status indication on channels powering. The Red LED (RED): indicates GSM net operation LED is off – stand by (flashing in period 2s – stand LED bliká...
- Page 5 On PC connected to LAN from which you can control connected Gateway run various web broser. Insert IP adress of gate (default 192.168.1.250) and you can continue in parametres setting. STEP 1 - choosing a mode and login It is important to choose a gate mode first. The gate can work in the PeerToPeer mode or SIP server mode.
- Page 6 STEP 2 - language option: Language setting can be made in a menu on the left panel. STEP 3 - Network settings: Network settings are located in the Network seting menu item. It is possible to use DHCP service or you can enter IP addresses manually. After making changes click on a save and restart button.
- Page 7 Manual configuration: Via DHCP:...
- Page 8 STEP 4 - GSM gate settings GSM gate settings can be made in a section GSM module 1 and GSM module 2. It is important to set a customer number, which will be dialed by the modul at an incoming calling. Next, it is important to set SIM card PIN, if it is required.
- Page 9 STEP 5 - GSM gate settings in the P2P mode The gate should be set to the P2P mode, viz. STEP 1. In this mode it is important to set a translation of numbers into IP addresses. This setting can be made in the Number translation section.
- Page 10 STEP 6 - GSM gate settings in the SIP server mode (internal) A module should be set to a mode with SIP server, viz STEP 1. Activation, deactivation and a real settings of the internal SIP server can be made in the SIP server section.
- Page 11 STEP 7 - GSM gate settings in the SIP server mode (external) The module should be set to a mode with SIP server, viz STEP 1. Next, internal SIP server must be deactivated , viz STEP 5. Settings can be made in a SIP parameters section.
- Page 12 2. Description of GSM Parameters DISA The incoming calls can be handled in two ways: All calls can be automatically connected to a selected extension in the connected exchange. Connection takes place in accordance with the selected Subscriber number or direct dialling numbers of the operator separately for each channel.
- Page 13 The gate can be provided additionally with a board with a digital recorder of “messages” for individual GSM channels. When collecting an incoming call through direct dialling, these messages are always replayed. The new OGM modul doesn't use this parameter. Wait The automatic operator waits for a pre-selected number of seconds for direct dialling code selection.
- Page 14 only digital ( 4 wire) lines ( digital phones) you can by activation this parametr (switch OFF ECHO canceler ) reach better voice quality. Add zero before CLIP It adds automatically 0 before each incoming number. Start with module 1 The Gate start testing LCR in Gate with module 1.
- Page 15 Volume GSM The Volume GSM allows adjusting call volume in the outgoing direction. Volume can be set in degrees 1 to 7. Volume ISDN The Volume ISDN allows adjusting call volume in the incoming direction. Volume can be set in degrees 1 to 4. Incoming calls Permission of incoming calls.
- Page 16 When you use this parametr then all outgoing calls which has been missed or refused are stored. It stores PBX extension which made the call + called number. When called part calling back then the call is automatically routed to extension which made the call. When connection was succsesfull data are erased from memory.
- Page 17 Permited calls Up to 12 blocks of permitted calls can be selected in each GSM module. The table of the permitted calls is accessible after clicking on the Accepted calls. If the table is not filled in, all calls are enabled. 1- up to 8-digit numbers can be written in the first column of the table.
- Page 18 GSM Gate status when click on GSM Gate status then is open the window where are mentioned all parametres about GSM modules. Frequenci Channel : determine channel number of GSM net - · frequency on which is GSM modul connected to BTS. The channels 0 - 124 are certained for GSM 900, channels 512 - 885 for GSM1800.
- Page 19 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz s.r.o. LPHATECH ECHNOLOGIES Jeremenkova 88 140 00 Praha 4 Czech Republic VAT: CZ27577350 Company is registered in the Commercial Register administered by the Municipal Court in Prague, Section C, Record 116886 Banking details: Komerční...
