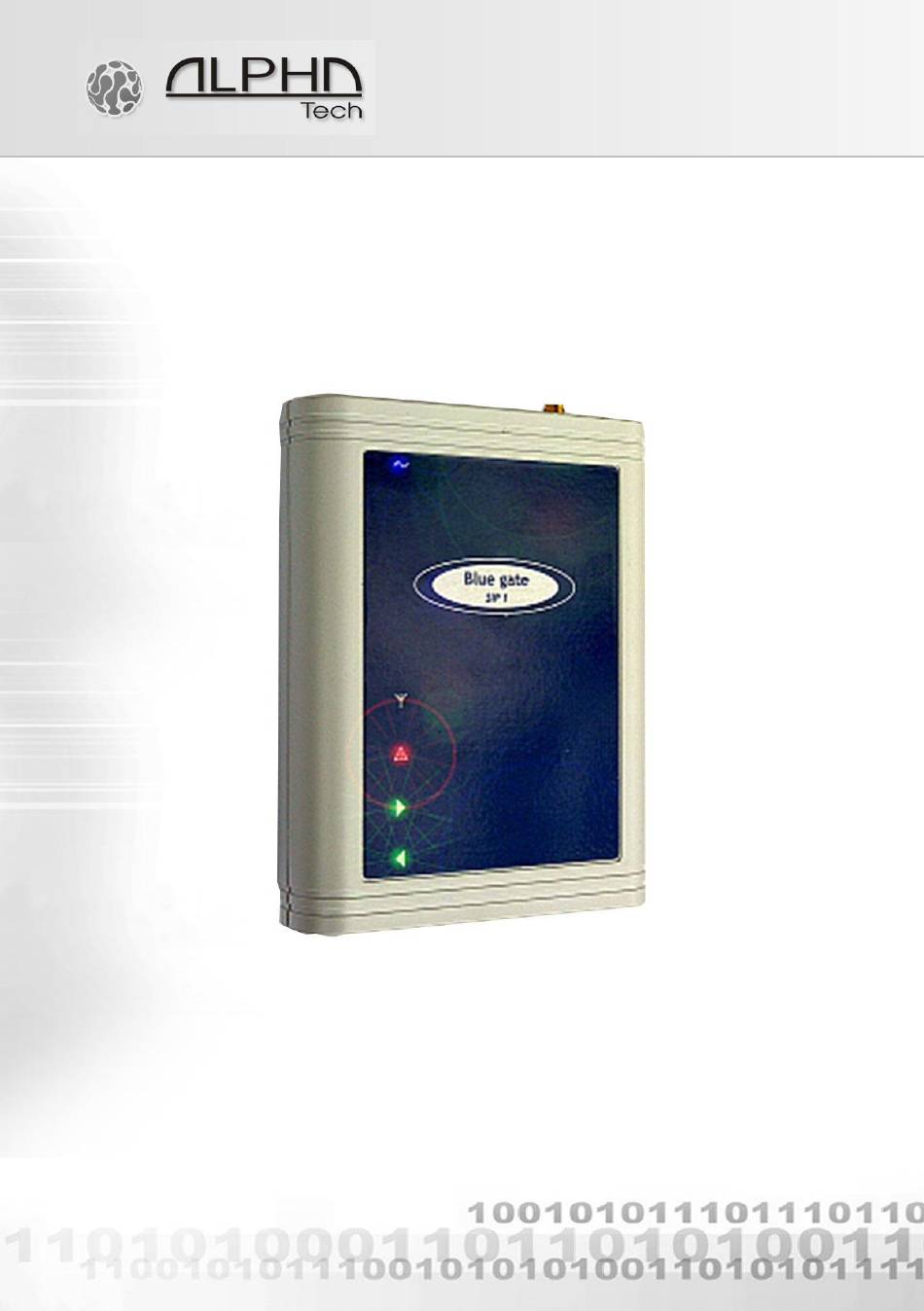

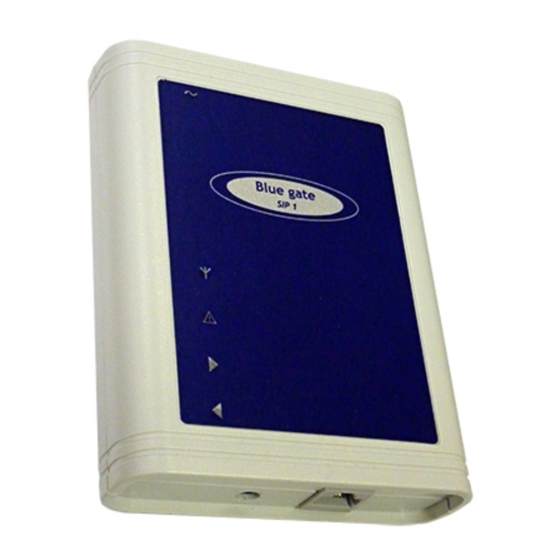

- Page 1 LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz BlueGate SIP 1 VoIP GSM GATE Installation and setup guide V 1.0...
-
Page 2: General Description
1. General description 1.1 Technical parametres Dimensions 100 x 130 x 37 mm Weight 850 g Operating position various temperature: +5°C ÷ +40° C Operating condition humidity: 10% ÷ 80% při 30° C Power supply 9-15V dc or 8-12 Vac, 1.5 A VoIP ... - Page 3 GSM 900 (class 4 – 2 W) GSM 1800 (class 1 – 1 W) Antenna connector SME/SMA, 50Ω SIM card: 3/1,8 V 1.2 Installation Insert SIM cards. Before SIM card inserting check their status in mobile phone (starting with PIN or without PIN).
- Page 4 Connect the LAN Finally, connect cable the power adapter GSM operation: LED flashing – modul registrate to GSM net, stand by LED lighting – connection (call) Error status indication: LED is off – stand by LED flashing – failure Incoming and outgoing call...
- Page 5 On PC which is connected to LAN, you can control connected Gateway via various web broser. Insert IP address of gate (default 192.168.1.250) and you can continue in setting of parametrs. 1.3 DIP switch The program reads the DIP Switch state after restart.
- Page 6 1.4 choosing a mode and login It is important to choose a gate mode first. The gate can work in the PeerToPeer mode or SIP server mode. The mode setting can be made by a relevant switch. In the SIP server mode is possible to choose internal or external SIP server.
- Page 7 1.5 language option Language - can be chosen in the menu on the left panel.
-
Page 8: Gateway Setup
2. Gateway setup After making changes click on a save and restart or save changes button. For default data restoring click on a default values button. 2.1 Network setting Setup via DHCP - it is possible to use DHCP service or you can enter IP address manualy. - Page 9 2.2 GSM Gate DISA - if a number of digits in the direct dialling code is greater than zero, the callers may dial directly using tone selection to the required extension. Wait - sets, how many seconds the automatic operator waits for direct dialling code selection.
- Page 10 2.3 GSM Gate - module PIN - set up the PIN of SIM card in modul. When you use SIM card without PIN then this window is not used.. Subscriber number - here is set a customer number of operator which will be dialed by Gateway at an incoming calling.
- Page 11 2.4 Accepted calls If the table is not filled, all calls are enabled. Up to 12 blocks of permitted calls can be selected. 1- up to 8-digit numbers can be written in the first column of the table. The program substitutes any digits instead of not filled digits from the right when is checking the enabled calls.
- Page 12 2.5 GSM Gate status Operator – name of network operator Signal strength - 113 to -99 dBm is very bad signal, -98 to -83 dBm is bad signal, -82 to -71 dBm is good signal and -70 to -51 dBm is very good signal.
- Page 13 2.6 Number translation The gate must be set to the P2P mode. In this mode it is important to set a translation of numbers into IP addresses. Item „Number“ is a phone number, IP address is an address of the selected phone.
- Page 14 2.7 SIP parameters The module must be set to the mode with SIP server. Next, internal SIP server must be deactivated. After the saving of entered data, registration attempt is executed (if name is not empty) and result is shown. If the registration is not successfull, you will see the reason in Registration log in menu Services ...
- Page 15 2.8 SIP Server (internal) A module must be set to the mode with SIP server. Enable SIP server - activation/deactivation of the internal SIP server Server name (realm) - the name is sent from SIP server to client as the SIP server name at make registration or call.
- Page 16 2.9 Setting audio In case of poor audio quality try another codec priority. In menu 'Setting audio' choose G711µ as first, G711a as second, ... Check client (IP Phone ) audio settings. At least one audio codec must be chosen.
- Page 17 2.10 User interface Web interface tcp port - possibility change Web interface network port. Enable telnet - possibility disable / enable access over telnet.
- Page 18 2.11 Admin services VoIP version – name of SW version for VoIP part Download log file - if you are in troubles and need technical support, you will need this file. Follow these steps: 1. press 'start enhanced log' button 2.
- Page 19 2.12 Help Here you can find informations about Gateway configuration and problem solving...
-
Page 20: Troubleshooting
3. Troubleshooting Many of problems is possible to successfully solve by cooperation with technical support. In this case tech. support needs exact and clean description of your problem and log file downloadable from menu Support. Follow these steps: 1. press 'start enhanced log' button 2. - Page 21 registration is unsuccessful - nothing helps - in menu Service download log file and send it with problem description to technical support 3.2 Call connection of call is not possible - in menu Service click on 'Show call log', window with call record and possible errors will be displayd ...
- Page 22 - this record with description and log file from menu Service send to technical support...
- Page 23 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz s.r.o. LPHATECH ECHNOLOGIES Jeremenkova 88 140 00 Praha 4 Czech Republic VAT: CZ27577350 Company is registered in the Commercial Register administered by the Municipal Court in Prague, Section C, Record 116886 Banking details: Komerční...
