iNSTALLATiON
AND SERVICE MUST BE PERFORMED
BY A QUALiFiED
iNSTALLER.
iMPORTANT:
SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
If the information
in this manual is not followed
exactly, a fire or
explosion
may result causing property damage,
personal injury or death.
FOR YOUR SAFETY:
--
Do not store or use gasoline or other flammable
vapors and liquids
in
the vicinity
of this or any other appliance.
--
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately
call your gas supplier
from a neighbor's
phone.
Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call the fire department.
--
installation
and service must be performed by a qualified
installer,
service agency or
the gas supplier.
Appliances
installed
in the state of
Massach usetts:
This Appliance can only
be installed in the state
of Massachusetts by a
Massachusetts licensed
plumber or gasfitter.
This appliance must be
installed with a three (3)
foot / 36 in. long flexible gas
connector.
A "T" handle type manual
gasvalve must be installed
in the gas supply line to this
appliance.

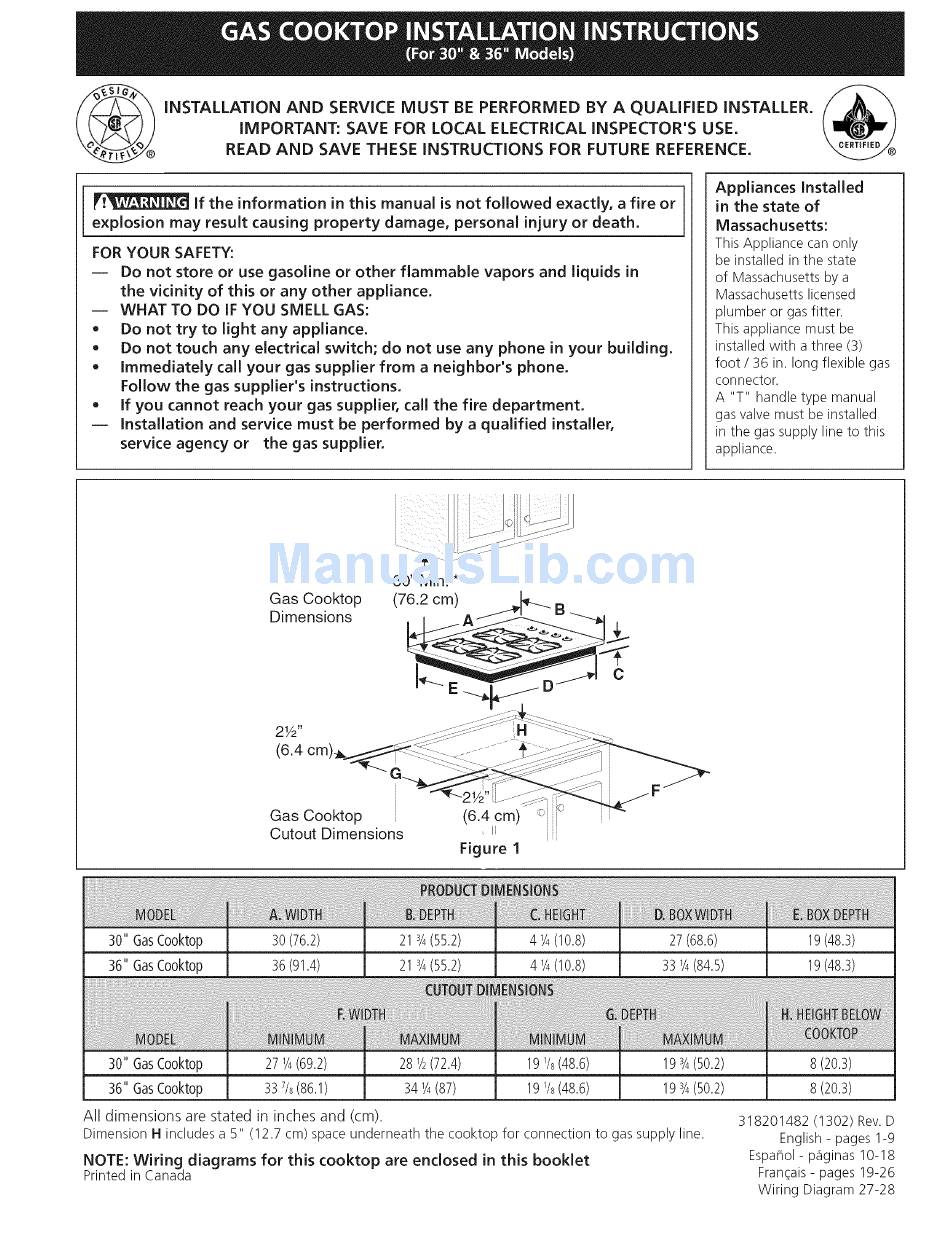

Gas Cooktop
Dimensions
21/2 _
(6.4
Gas Cooktop
(6.4 cm)
,o
Cutout Dimensions
, ii
, [
Figure I
30" GasCooktop
36" GasCooktop
30 (76.2)
36 (91.4)
21 ¾(55.2)
21 ¾(55.2)
4 ¼(10.8)
4 ¼(10.8)
27 (68.6)
33 ¼(84.5)
30" GasCooktop
27 ¼ (69.2)
28 Y2 (72.4)
19 % (48.6)
36" GasCooktop
33% (86.1)
34 ¼(87)
19 % (48.6)
All dimensions are stated in inches and (cm).
DimensionH includesa 5" (12.7 cm) spaceunderneath the cooktop for connection to gassupply line.
NOTE: Wiring diagrams for this cooktop
are enclosed in this booklet
Printedin Canada
19 (48.3)
19 (48.3)
19 ¾ (50.2)
8 (20.3)
19 ¾ (50.2)
8 (20.3)
318201482 (1302) Rev.D
English - pages 1-9
Espaflol- p_iginas 10-18
Francais - pages 19-26
Wiring Diagram 27-28
