Part# XK-0994-UKVM-R
24 Keys
USB Keyboard
Blue or Red Backlighting
Designed, Sold, and Supported in USA
From P.I Engineering,
www.xkeys.com
Box Contents
This package contains:
1- X-keys XK-24 KVM Version
1- Replacement key set (2 tall, 1 wide, 1 key puller)
1 – Software Disc
2- Angled feet
2- Legend Sheet (1 blank, 1 pre-printed)
1- Product Manual (this document)
Software
Install MacroWorks .3.1 from the enclosed disc or download the newest
version from: xkeys.com/PISupport/SoftwareMacroWorks.php
IMPORTANT
To put this XK-24 into programming mode, hold down the programming button
(the black button on the top edge of the X-keys) while plugging it into a USB
port. After MW3.1 writes your macros to the XK-24 memory, unplug the XK-24
to return it to keyboard mode.
Once programmed, the XK-24 may be plugged into any system and it will play
back programmed keystrokes just like any standard USB keyboard.
Backlighting
The XK-24 has two backlighting colors (red and blue). The factory setting is
blue at full intensity. You may change the intensity level or turn on or off either
set of LEDS with "Hardware Default Backlighting" settings under the Unit Data
tab in MW3.1. Be sure to click the "Save Backlighting" button to write your
settings to the XK-24s memory.

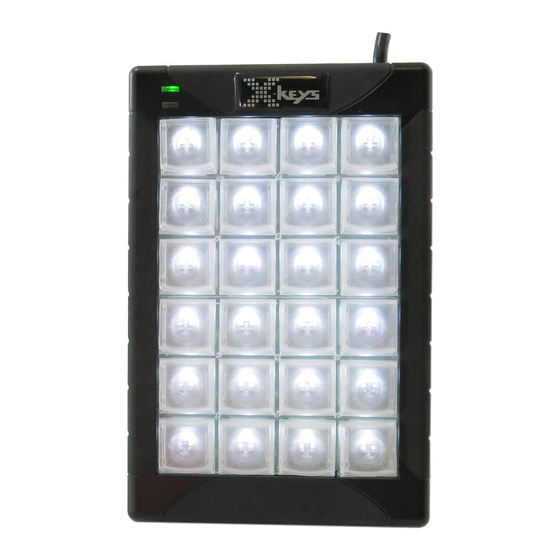

XK-24 Programmable Keypad KVM
Product Manual
The No Slogan Company
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for X-keys XK-24
Summary of Contents for X-keys XK-24
- Page 1 To put this XK-24 into programming mode, hold down the programming button (the black button on the top edge of the X-keys) while plugging it into a USB port. After MW3.1 writes your macros to the XK-24 memory, unplug the XK-24 to return it to keyboard mode.
- Page 2 Unused keys may be replaced with optional key blockers and identified as blocked keys in MW3.1. Feet The included angled feet may be snapped in to the bottom of the XK-24 to give it a slight tilt in either portrait or landscape orientation.
- Page 3 X-keys XK-128 – 128 programmable keys X-keys XK-12 Joystick – 12 keys with a precision joystick X-keys XK-12 Jog & Shuttle – 12 keys with jog & shuttle X-keys XK-12 Touchpad – 12 keys with touchpad X-keys XK-3 Foot Pedal – three programmable pedals X-keys XK-4 Stick –...
-
Page 4: Limited Warranty
Under this warranty, P.I. Engineering will, at its sole option, repair or replace any X-keys product which is defective, provided that you are responsible for (i) the cost of transportation of the product to P.I.
