X-keys XK-24-USB-R Product Manual

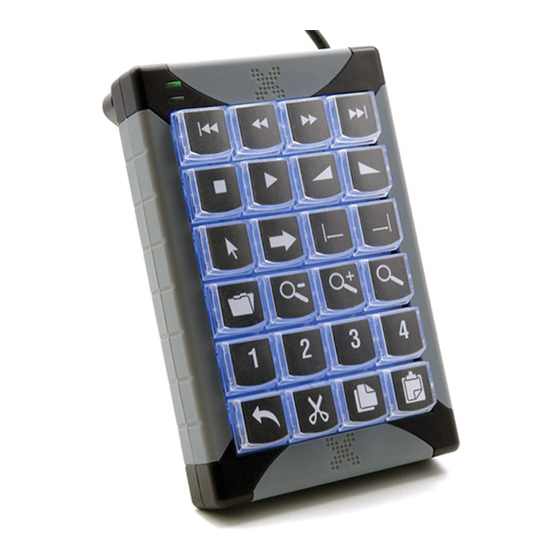

Programmable keypad
Hide thumbs
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual
Model XK-24-USB-R
24 Keys
Individual Key Backlighting
Designed in USA by P.I .Engineering
Sold and supported in the USA and UK
USA:
www.xkeys.com
UK:
www.keyboardspecialists.co.uk

Box Contents

This package contains:
1- X-keys XK-24
1- Replacement key set (2 tall, 1 wide, 1 key puller)
2- Angled feet
2- Legend Sheets (1 blank, 1 pre-printed)
1- Product Manual

Quick Start for Windows

Download and install MacroWorks 3.1 (MW3) from:
1.
http://xkeys.com/PISupport/SoftwareMacroWorks.php
Plug in the X-keys and wait for Windows to recognize it.
2.
Press the programming switch (located on the top edge of the XK-24) to
3.
open the MW3 programming window (or click on the MW3 taskbar icon and
select the device).
Press any key on the X-keys (or double-click on the key image) to begin
4.
recording a macro.
Type keystrokes or select text, shortcut, or function. Multiple lines of
5.
keystrokes, text, shortcuts, and functions may be entered on a single key.
Press the key again (or click Save) to complete programming.
6.
When finished, press the programming switch again to close the
7.
programming window.
To quickly learn how to use MW3 watch the brief tutorials on our website.
Consult the MW3 help file for complete instructions and tips on programming
and using your X-keys.

Mac Users

Install ControllerMate for X-keys from the Apple page in the Software section
of our website (a free download). ControllerMate for X-keys is published by
OrderedBytes in partnership with P.I. Engineering. For full programming
instructions and support, please visit www.orderedbytes.com/controllermate/.
XK-24 Programmable Keypad
Product Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XK-24-USB-R and is the answer not in the manual?

Questions and answers

Related Manuals for X-keys XK-24-USB-R

Summary of Contents for X-keys XK-24-USB-R

  • Page 1 MW3 programming window (or click on the MW3 taskbar icon and select the device). Press any key on the X-keys (or double-click on the key image) to begin recording a macro. Type keystrokes or select text, shortcut, or function. Multiple lines of keystrokes, text, shortcuts, and functions may be entered on a single key.
  • Page 2 | Tel +44 (0)20 3474 0234 Compatibility X-keys USB devices require MacroWorks 3 for Windows XP, Vista, or 7-10 or ControllerMate for Mac OS-X. The X-keys XK-24 also has a “Hardware Mode” to emulate a USB keyboard, mouse, or game controller (joystick) on any USB enabled operating system (including Linux).
  • Page 3 Compatible Accessories Please visit the Accessories page on our website for details on the following. X-keys USB Extender – up to 150 feet via CAT 5 cable Tall, wide, and quad keycaps Colored and transparent key caps Blank key blockers Other Products from P.I.
  • Page 4 Under this warranty, P.I. Engineering will, at its sole option, repair or replace any X-keys product which is defective, provided that you are responsible for (i) the cost of transportation of the product to P.I. Engineering or its designated service facility, and (ii) any loss or damage to the product resulting from such transportation.
