ZyXEL Communications Omni 56K II Quick Start Manual

Hide thumbs Also See for Omni 56K II:

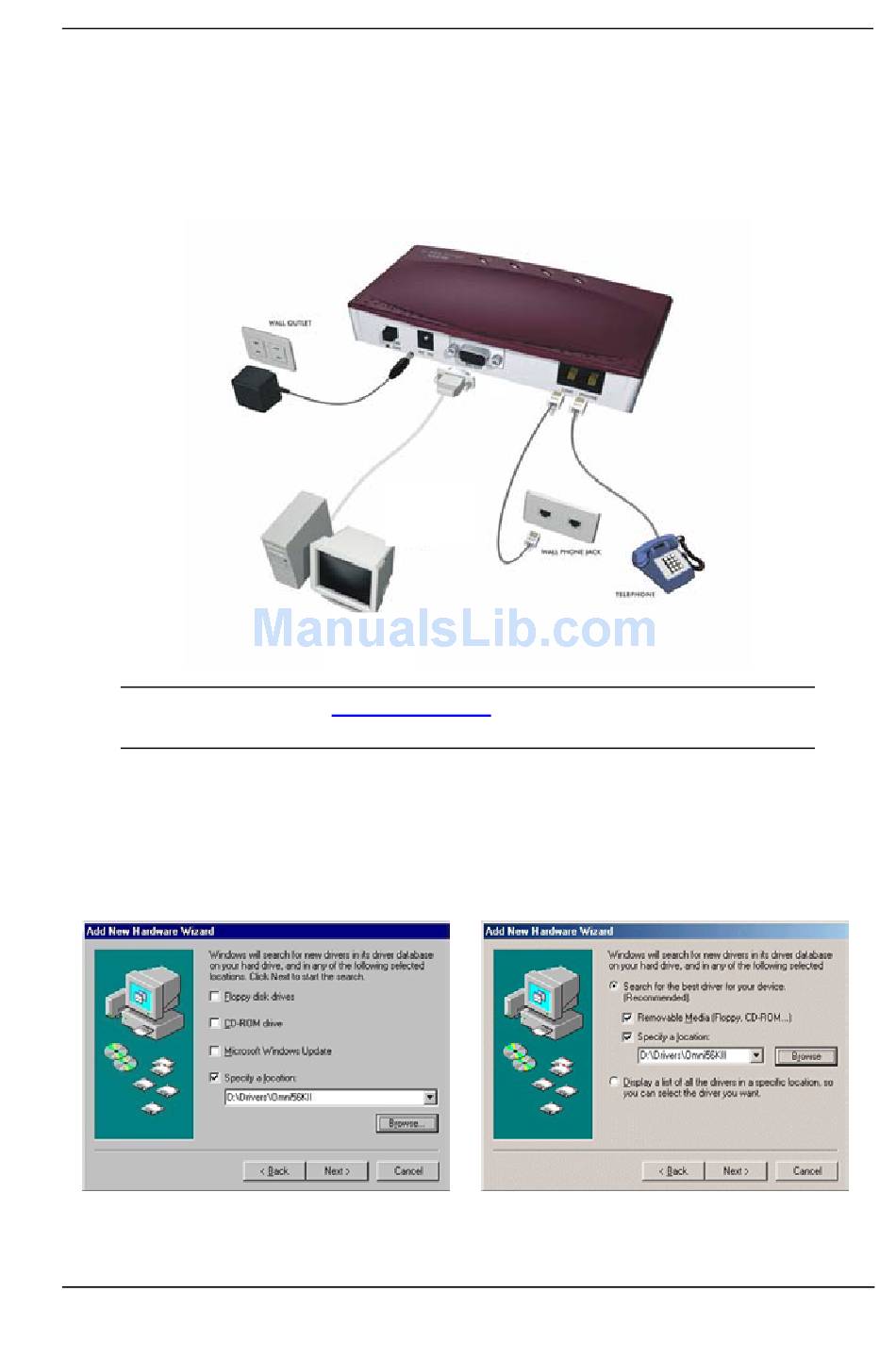

Hardware Installation

Step 1. Connect your modem to your analog phone or fax.

Step 2. Use telephone wire to connect the modem to a wall phone jack.

Step 3. Use the RS-232 cable to connect the modem to your computer's serial port.

Step 4. Use the included power adapter to connect your modem to a power outlet.

Step 5. Turn on your modem and then turn on your computer and insert the included CD.

Windows automatically starts an installation wizard when it detects new hardware. Use the

wizard to select the driver on your included CD. Browse to D:\Drivers\Omni56KII (where D:

is your CD-ROM drive), and click Next or OK.

Windows 98

ZyXEL Omni 56K II Modem Quick Start Guide

SERIAL PORT

COMPUTER

www.zyxel.com

for free product updates and

information.

Windows Me

Table of Contents

Do you have a question about the Omni 56K II and is the answer not in the manual?

Page 1: Hardware Installation
ZyXEL Omni 56K II Modem Quick Start Guide Hardware Installation Step 1. Connect your modem to your analog phone or fax. Step 2. Use telephone wire to connect the modem to a wall phone jack. Step 3. Use the RS-232 cable to connect the modem to your computer’s serial port.
Page 2: Troubleshooting
ZyXEL Omni 56K II Modem Quick Start Guide Windows 2000 Windows XP Click Yes or Continue Anyway if a warning screen appears. Restart your computer if prompted. If Windows does not automatically detect your modem, make sure that the modem is connected and turned on.
