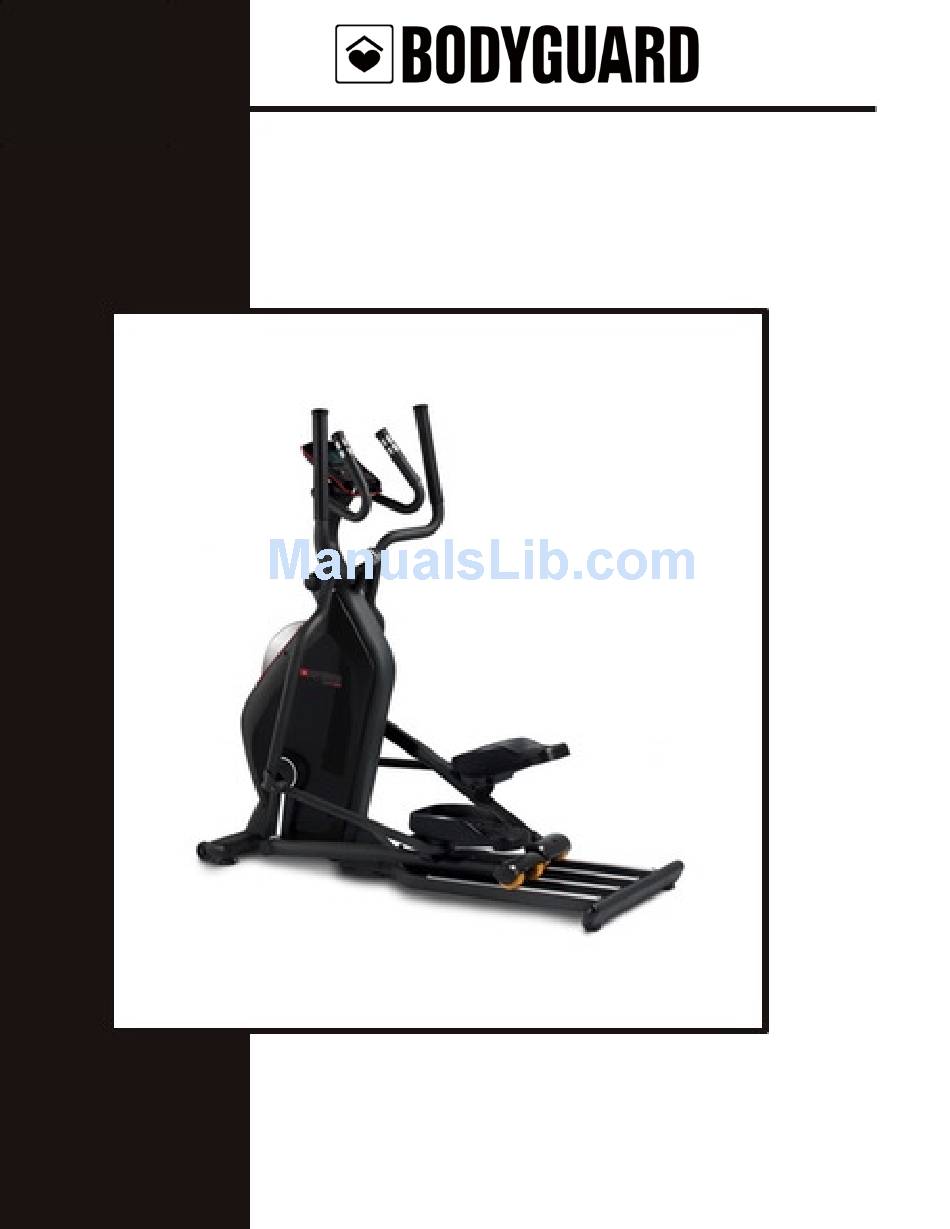

- Page 1 E-40 ELLIPTICAL MACHINE USER MANUAL #691109(-) 07/15...
-
Page 2: Table Of Contents
3 GETTING TO KNOW YOUR ELLIPTICAL ............7 3.1 E-40 ELLIPTICAL ........................ 7 3.2 E-40 CONSOLE ........................8 3.3 E-40 CONSOLE BUTTONS / FEATURES ................8 3.4 DISPLAY PARAMETERS ....................9 3.5 PARAMETERS GLOSSARY ....................9 3.6 MEASURING YOUR HEART RATE ..................9 3.7 HEART RATE RECOVERY TEST .................. -
Page 3: Introduction
IMPORTANT – If you omit to send your warranty card to Bodyguard Fitness or register online within 30 days of the date of purchase then you will be required to send Bodyguard Fitness proof of purchase before receiving any warrantied parts or service. -
Page 4: Important Safety Instructions
Any changes or modifications to this equipment could void the product warranty. Refer servicing to qualified Bodyguard Service personnel only. If you have any questions about the assembly, proper use or repair of your equipment, please contact Bodyguard Fitness Customer Service. An Authorized Bodyguard Fitness Dealer must make any necessary repairs during the warranty period. - Page 5 DANGER – Improper connection of the equipment can result in a risk of electric shock. Do not modify any plugs provided with Bodyguard products – if the supplied plug does not fit the outlet, have a proper outlet installed by a qualified electrician.
- Page 6 Si vous avez des questions sur l’assemblage, l'utilisation ou la réparation de votre équipement, contacter le service à la clientèle de Bodyguard Fitness. Seulement un détaillant autorisé Bodyguard Fitness doit faire les réparations lorsque nécessaires pendant la période de garantie.
-
Page 7: Getting To Know Your Elliptical
3 GETTING TO KNOW YOUR ELLIPTICAL 3.1 E-40 ELLIPTICAL Safety Tip: When getting onto the elliptical, rotate the pedal on the side you are standing to its lowest point and hold that side’s swinging arm for stability with one arm while stepping up onto the pedals and reaching out for the other swing arm with the opposite hand. -
Page 8: Console
3.2 E-40 CONSOLE The E-40 elliptical features a battery powered LCD display with an animation center surrounded by information windows showing the parameters of the exercise under way. 3.3 E-40 CONSOLE BUTTONS / FEATURES Note: The console will enter into a SLEEP mode (for power-saving purposes) after 4 minutes of receiving no RPM or Heart Rate signal input. -
Page 9: Display Parameters
If you feel faint or dizzy, stop exercising immediately. Your Bodyguard Fitness E-40 elliptical can display your heart rate (pulse) if you grip the contact heart rate sensors while pedaling. When the equipment detects your heart rate a small heart begins to flash on the display and after a short period of time if the reading is consistent a value will appear. -
Page 10: Heart Rate Recovery Test
When setting up your workout, you may input a Maximum Heart Rate into the Pulse parameter and the console will beep when you exceed it warning you that you are over-training. 3.7 HEART RATE RECOVERY TEST The Heart Rate Recovery Test is a protocol that tests the heart’s ability to recover from exercise, which is a key component of heart health and general fitness. -
Page 11: Exercise Programs
The E-40 elliptical is fitted with a manual resistance knob that the user turns clockwise to increase resistance (simulates hill-climbing) or anti-clockwise to decrease resistance at any time. - Page 12 The goal of each program is for the USER (left animation) to have completed at least 60% of the PC’s work (right animation) when the 20 minutes is up. When an animation is moving up the screen and getting smaller it indicates that it is in front of the other animation. The higher and smaller it gets, the further in front it is.
-
Page 13: General Maintenance
5 GENERAL MAINTENANCE Bodyguard Ellipticals have been designed to provide many years of quality use. However, in order to maintain product safety, performance and to maximize the life of the product, some general maintenance should be performed periodically. Please note that general maintenance is the responsibility of the owner and is not covered by the product’s labor warranty, which only covers labor costs related to the diagnosis and repair of parts... -
Page 14: Troubleshooting Problems
6 TROUBLESHOOTING PROBLEMS The following information is provided as a guide to solving common problems that may arise. Read your warranty information carefully to have a clear understanding regarding what is covered. 6.1 COMMON NOISES There are different types of noises that can be heard from an elliptical depending on the workload, age and condition of the equipment. -
Page 15: Rubbing Or Scraping Noises
Shroud Screws Check the shroud screws are tight or the joining plastic pieces can click as they stress from side to side. Pedals Check the screws that secure the pedals to the pedal link are tight or the plastic pedal can click as it stresses from side to side. -
Page 16: General Troubleshooting Checklist
GENERAL TROUBLESHOOTING CHECKLIST PROBLEM POSSIBLE CAUSE SOLUTION Note: If Data Cable is not connected to the console, the console should still light up when 1) Change batteries (2 x AA UM3, Console not a button is pressed. 1.5V) lighting Up 2) Replace Console 1) Batteries in console are flat 2) Damaged Console... -
Page 17: Service Guides
7 SERVICE GUIDES The following Service Guides are a reference for certified technicians. Do not attempt to service a Bodyguard Fitness unit without professional training. WIRING DIAGRAM REMOVING PLASTIC CRANK COVER If trying to remove the plastic crank cover note that the screws are beneath the silver line sticker. -
Page 18: Adjusting Drive Belt Tension
ADJUSTING DRIVE BELT TENSION To adjust the Drive Belt tension, remove the shrouds and adjust the Drive Belt Tensioner Nut accordingly. Note that you may be required to loosen the plate bolt to allow the plate to pivot. BRAKE PAD REPLACEMENT To replace the Brake Pad, remove the shrouds, screw up the... -
Page 19: Exploded View
E-40 EXPLODED VIEW... -
Page 20: Parts List
E-40 PARTS LIST DESCRIPTION Q'TY Main frame Rear frame Swing arm L Swing arm R Stride arm L Stride arm R Pedal link L Pedal link R Crank Console Swing arm cap Contact Heart Rate Bar Cap Stride arm end cap... - Page 21 DESCRIPTION Q'TY Socket head screw M6 x 30 Flat countersunk head screw M5 x 10 Nut M10 Nylon nut M8 Round head bolt M8 x 67 Round head bolt M8 x 40 Domed nut M8 Socket head bolt M10 x 16 Pedal link shaft Socket head screw M6 x 12 Round head self-tapping screw M4 x 12...
- Page 22 DESCRIPTION Q'TY Self-aligning bearing C-rings Nylon nut Washer 1 3 x 2 3 x 1.0t Φ Φ C-rings Bearing 6002ZZ Contact heart rate bar Flat head bolt M8 x 20 Socket head screw M5 x 10 Console bracket Round head screw M4 x 8 Washer M6 x 1.0t x Φ...
-
Page 23: Assembly Guide
9 ASSEMBLY GUIDE... - Page 28 #691109(-) 07/15...
