Page 1: Installation Guide

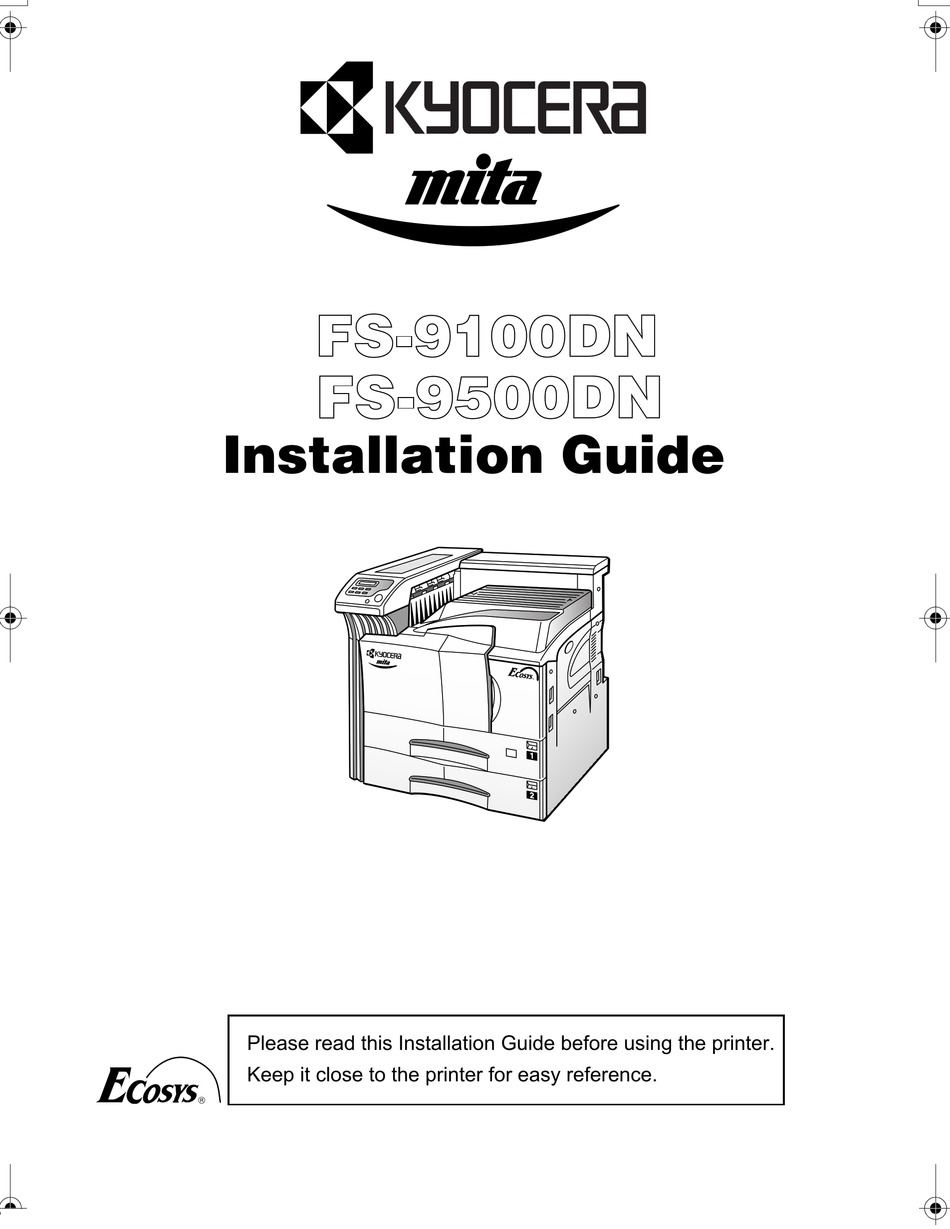

Installation Guide 3OHDVH UHDG WKLV ,QVWDOODWLRQ *XLGH EHIRUH XVLQJ WKH SULQWHU .HHS LW FORVH WR WKH SULQWHU IRU HDV\ UHIHUHQFH... - Page 2 SOFTWARE USED WITH THIS PRINTER MUST SUPPORT THE PRINTER’S EMULATION MODE. The printer is factory-set to emulate the HP PCL 6. The emulation mode can be changed by following the procedures described in the User’s Manual contained as an electronic file in the Kyocera Mita Digital Library CD-ROM supplied with the printer. Notice The information in this guide is subject to change without notification.
-
Page 3: Installation Procedure
1 Installation Procedure Remove the printer from the carton and Install it in the following order after transporting it to the installation position. Start Unpack. 5HPRYH WKH WDSHV 3RVLWLRQ WKH SULQWHU ,QVWDOO WKH WRQHU FRQWDLQHU ,QVWDOO WKH ZDVWH WRQHU ER[ &RQQHFW WKH SULQWHU WR WKH FRPSXWHU &RQQHFW WKH SRZHU FRUG /RDG SDSHU WR WKH SDSHU FDVVHWWHV DQG 03 WUD\... - Page 4 Be sure that four or more people unpack and install the printer. Be very careful as the printer is heavy and can hunt your back. List of Shipped Components Paper Size Plate (4) Printer Kyocera Mita Digital Library CD-ROM Kyocera Mita Network Library CD-ROM Toner Container...
- Page 5 Removing the Tapes Remove the tape holding the front cover. Front Remove the tape holding the MP (Multi Cover MP Tray Purpose) tray. Remove the four tapes holding the paper cassettes. Paper Cassettes Remove the tapes holding the left cover. Left Cover 1 Pull out the upper paper cassette and remove the two tapes holding the bottom...
-
Page 6: Positioning The Printer
3 Positioning the Printer Make sure that the place of installation meets the following requirements: Clearance Rear: 10 cm (3 - ") Be sure to secure enough space around the printer. Prolonged use without suffi- cient clearance may cause heat to build up within the printer, resulting in fire. -
Page 7: Installing The Toner Container
4 Installing the Toner Container Before you can use the printer for the first time, you must prepare it by installing the toner con- tainer, waste toner box, and set up the interfacing with the computer. Open the printer front cover all the way. Front Cover Take out the toner container. - Page 8 Hold the toner container by hands and fully insert it into the printer. Leave the front cover open for next step Installing the Waste Toner Box.
-
Page 9: Installing The Waste Toner Box
5 Installing the Waste Toner Box The waste toner box is supplied with the printer. Install the waste toner box as shown in the figure. Close the front cover. 6 Connecting the Printer to the Computer There are various ways of connecting the printer to the computer, such as through the parallel interface connector, serial interface connector, or through the network interface connector. -
Page 10: Serial Interface Connection
Parallel Interface Connection Plug one end of the printer cable (not included) into the parallel interface connec- tion on the rear side of the printer. • Use a parallel printer cable that complies with the IEEE1284 standards. • The printer will work best if it is installed near the computer. -
Page 11: Connecting The Power Cord
60 Hz (120 V) ±2 %, 50/60 Hz (220 to 240 V) ±2 % Current capacity Max. 10.8 A at 120 V, or max. 5.6 A at 220 to 240 V (FS-9100DN) Current capacity Max. 10.9 A at 120 V, or max. 5.7 A at 220 to 240 V (FS-9500DN) To Connect the Power Cord •... - Page 12 8 Adding Paper to the Paper Cassette and MP (Multi-Purpose) Tray The paper cassette can accommodate A5 to A3/Ledger size paper and can hold approximately 500 sheets. The MP tray can accommodate the various paper sizes and can hold approximately 200 sheets of paper.
-
Page 13: Paper Cassettes
Paper Cassettes Pull out the paper cassette until it stops. Paper Cassette Press the lever (green-colored) on the front side paper guide and slide the paper guides to the desired paper size position. Turn the paper stopper located at the right side of the paper cassette to the left as shown and move it to the desired paper size. - Page 14 Slide the paper into the paper cassette. • Do not load more paper than will fit under the load limit on the rear side paper guide. • The paper cassette will hold approximately 500 sheets of paper with a 80 g/m² (21 lb.) basis weight, or with a thickness of 0.11 mm.
- Page 15 MP (Multi Purpose) Tray The MP tray can be used for paper sizes other than standard, paper for labels, cards, envelopes, and transparencies in addition to paper sizes accommodated in the paper cassettes. Open the MP tray on the right side of the printer as shown in the figure.
- Page 16 Test a sample envelope on the printer and check that printing quality is satisfactory before purchasing. Some types of envelopes are not suitable for printing. For details on suitable types of envelopes, see the Operation Guide contained as a PDF file in the Kyocera Mita Digital Library CD-ROM supplied with the printer.
-
Page 17: Turning The Power Switch On
9 Turning the Power Switch On This section describes the procedure for turning on the printer’s power. During start-up, the language for the message display and status page of this printer can be selected from English, German, French, Italian, and Dutch. The default message language is English. - Page 18 The message language can also be changed in the mode select menu of the printer. Refer to the Operation Guide con- tained as a PDF file in the Kyocera Mita Dig- ital Library CD-ROM supplied with the printer, if required. If required, your dealer...
-
Page 19: Printing A Status Page
Ready. If the status page prints correctly, printer setup is complete. For details on using the printer, refer to the Operation Guide con- tained as a PDF file in the Kyocera Mita Dig- ital Library CD-ROM supplied with the printer. -
Page 20: Correcting A Paper Jam
Correcting a Paper Jam If a paper jam occurs while printing, remove the jammed paper as described below. After remov- ing the jammed paper, open and close the front cover. When pulling the paper, pull it gently so as not to tear it. Torn pieces of paper are dif- ficult to remove and may be easily overlooked, deterring the jam recovery. - Page 21 Jam in Left Cover 1 Pull up the lock lever and open left cover 1. Remove the jammed paper. Push the lever (green colored) to raise the duplex unit and remove the jammed paper. If there is jammed paper in the output sec- tion, remove it.
- Page 22 Close left cover 1. Jam in Left Cover 2 Open the left cover 2. Remove the jammed paper. Close the left cover 2.
- Page 23 Any modification without prior permission may cause harmful interference. If any modification/change is introduced to this equipment without prior permission, Kyocera as the manufacturer can- not guarantee compliance with FCC rules. To use equipment which does not comply with FCC rules is prohibited. The...
-
Page 24: Caution Labels
Caution labels The labels shown are affixed to the printer. (European/ (U.S.A./Canada) Pacific countries) This label is attached to the scanner unit installed in the printer. CDRH regulations The Center of Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration implemented reg- ulations for laser products on August 2, 1976. -
Page 25: Important Safeguards
IMPORTANT SAFEGUARDS 1. Read all of these instructions and save these instructions for later use. 2. Unplug this product from the wall outlet before cleaning. 3. Do not use this product near water. 4. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. - Page 26 Model number: FS-9100DN/FS-9500DN (as tested with the enhancement optional unit: PF-70) Description of device: This Page Printer Model FS-9500DN is the 50 ppm (FS-9100DN is the 36 ppm); A4 size and utilized plane paper; laser; dry toner etc. The printer can be equipped with several enhancement optional units as a paper feeder as PF-70 etc.
- Page 27 Declaration of Conformity (U.S.A.) Model Number: Laser Printer FS-9100DN/FS-9500DN (as tested with enhancement optional unit: PF-70) Trade Name: Kyocera Responsible Party: Kyocera Mita America Inc. Address: 225 Sand Road PO Box 40008 Fairfield, New Jersey 07004-0008, U.S.A. Telephone number: (973) 808-8444...
-
Page 28: Moving The Printer
Left handles transportation of the printer. Right handles ® NERGY As an E Partner, Kyocera Corporation has determined that this product meets NERGY the E guidelines for energy efficiency. NERGY The basic objective of the E Program is to reduce environmental pollution by NERGY encouraging the manufacture and sale of equipment that uses energy more efficiently. -
Page 29: Available Options
Available Options The printer has the following options available. For instructions on installing individual options, refer to the documen- tation included with the option. Memory Card (CF) Network Interface Card Expansion Memory (DIMM 16/32/64/128 MB) Document Finisher DF-71 Hard Disk Unit Paper Feeder PF-70 Reverse Unit RA-1* Barcode Reader BC-1... -
Page 30: Limited Warranty
Centronics Data Computer Corp. PostScript is a registered trademark of Adobe Systems Incorporated. Adobe and Acrobat are trademarks of Adobe Systems Incorporated. This Kyocera page printer uses PeerlessPrintXL to provide the HP LaserJet compatible PCL 6 language emulation. PeerlessPrintXL is a trademark of The Peerless Group, Redondo Beach, CA 90278, U.S.A. -
Page 31: Safety Information
This product has been developed and manufactured with the express interest of reducing the impact on the environment. Using Kyocera’s innovative cartridge free technology, Kyocera has created an advanced printing system that does not require the wasteful replacement and disposal of a cartridge. -
Page 32: Operator Panel
• Displays online help messages on the message display when paper jam errors occur. Finalizes numeric values and other selections. ENTER For more details on operating procedures, see the Operation Guide contained as a PDF file in the Kyocera Mita Digital Library CD-ROM supplied with the printer. 2001.8...
