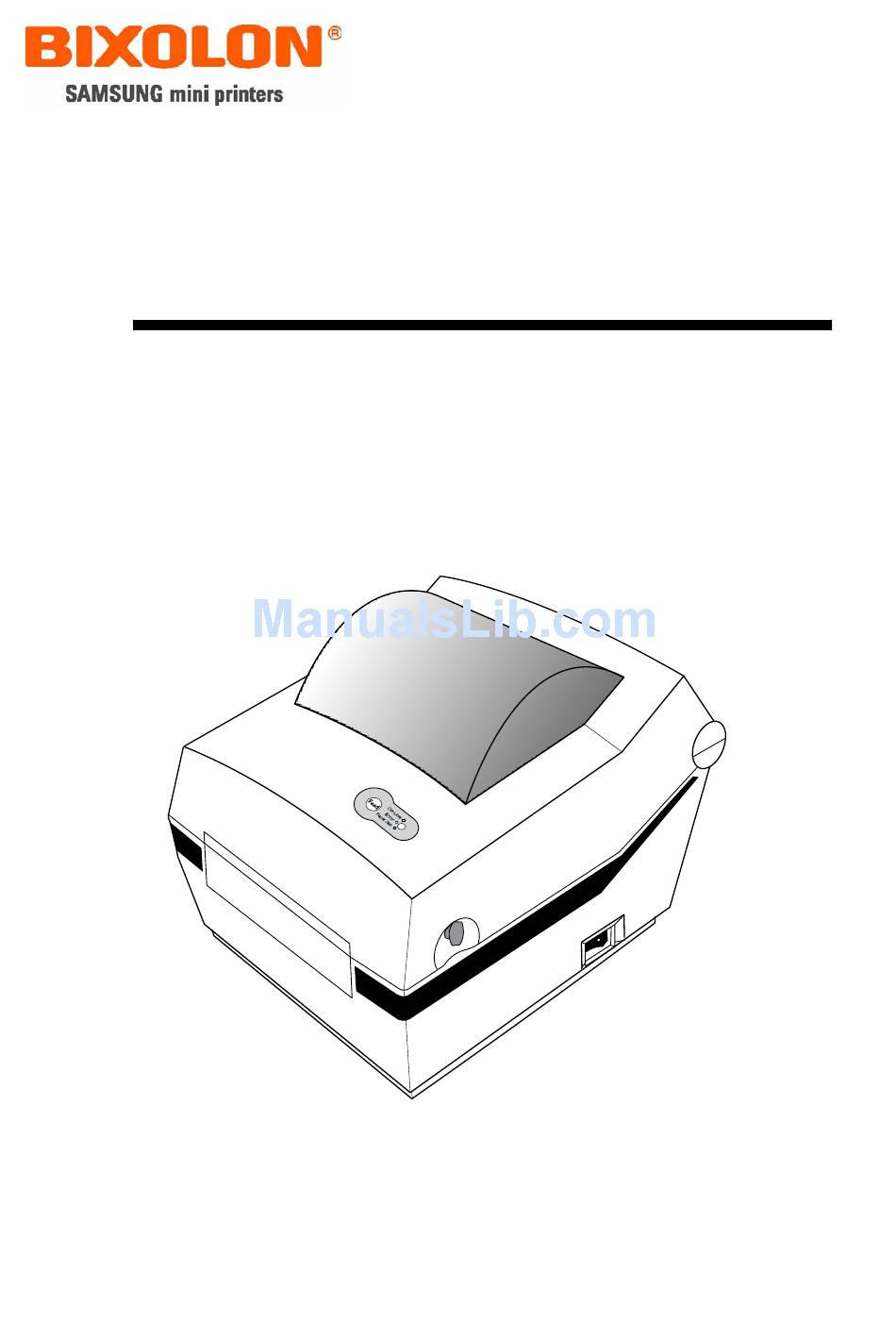

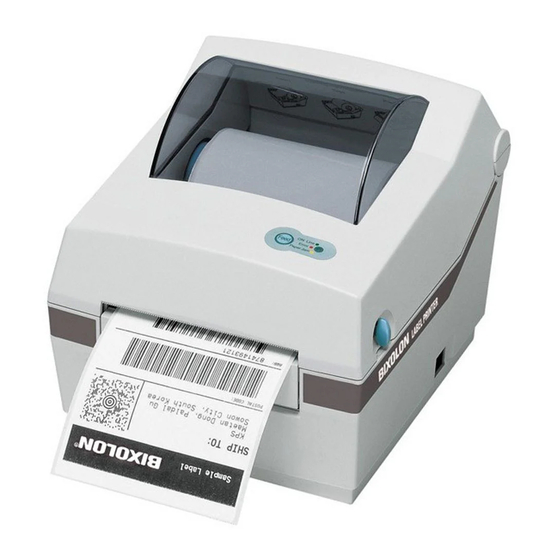

- Page 1 User's Manual SRP-770II Label Printer Rev. 1.12 http://www.samsungminiprinters.com...
-
Page 2: Table Of Contents
SRP-770II ■ Table of Contents ※ Manual Information & Usage Precautions ··································································3 1. Content Confirmation ····································································································7 2. Product Part Names·······································································································8 3. Installation & Usage·····································································································10 3-1 Power Connection ····································································································10 3-2 Interface Cable Connection ······················································································ 11 3-3 Paper Installation ······································································································12 3-4 LED Display ··············································································································13 4. -
Page 3: Manual Information & Usage Precautions
This manual provides information on the usage of the font downloader that can download True Fonts and facilitate their usage as Device Fonts. We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our products. In following, product specifications and/or user manual content may be changed without prior notice. -
Page 4: Safety Precautions
SRP-770II ■ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not plug several products in one multi-outlet. - Page 5 SRP-770II CAUTION Violating following instructions can cause slight wound or damage the appliance. If you observe a strange smoke, odor or noise from Keep the desiccant out of children’s reach. the printer, unplug it before taking following • If not, they may eat it.
-
Page 6: Other Precautions
BIXOLON Co., Ltd. is not legally liable for any damages resulting from the use of the information in this manual. BIXOLON Co., Ltd. and its affiliates are not legally liable (United States excluded) for any... -
Page 7: Content Confirmation
SRP-770II 1. Content Confirmation The following items should all be contained in the printer package. Contact the dealer from which the purchase was made if any item is damaged and/or missing. SRP-770II Paper Power Cord AC Adapter Cleaning Pen User’s Manual ※... -
Page 8: Product Part Names
SRP-770II 2. Product Part Names Feed Button Power Switch Cover Peel-off Cover Lever Printer Head Paper Cover Paper Holder Paper Gap Sensor Paper Guide Peel-off Sensor - 8 - Rev. 1.12... - Page 9 SRP-770II Fan-Fold RS-232C Receptacle Dip Switch Power Receptacle IEEE1284 Receptacle USB Receptacle Auto Cutter (Option) - 9 - Rev. 1.12...
-
Page 10: Installation & Usage
SRP-770II 3. Installation & Usage 3-1 Power Connection Connect power to the printer as shown below. Power Switch AC Adapter Power Cord 1) Turn off the printer power switch. 2) Check to see that the AC adapter voltage matches that of the power source. -
Page 11: Interface Cable Connection
SRP-770II 3-2 Interface Cable Connection Connect the interface cable as shown below. This printer supports the following communications interface standards. - RS-232C (Serial) - IEEE1284 (Parallel) - USB USB Cable RS-232 (Serial) Cable IEEE1284 (Parallel) Cable 1) Turn off the power switch. -
Page 12: Paper Installation
SRP-770II 3-3 Paper Installation 1) Open the Paper Cover. 2) Spread the paper holder and insert paper as shown. 3) Keep note of paper printing direction. 4) Adjust the paper guide to the width of the paper. 5) Close the Paper Cover. -
Page 13: Led Display
SRP-770II 3-4 LED Display Feed button Paper feed or cancel the print job. The current printer status can be viewed. (Refer to below) The current printer status can be viewed via the printer’s LED display. 1) Green LED on - The printer waits for the data from Host (PC) in normal mode. -
Page 14: Self-Test
SRP-770II 4. Self-Test The self-test checks whether the printer has any problems. (Users cannot perform this procedure if using the printer’s label peel-off option.) If the printer does not function properly, contact an authorized dealer. The self-test checks the following;... -
Page 15: Fine Tuning
SRP-770II 5. Fine Tuning 5-1 Printer Settings with Dip switches The dip switches are located on the bottom of the printer. The dip switches are used to set the printer to perform various functions. Follow these steps when changing dip switch settings: 1) Turn the printer power switch off. -
Page 16: Pause/Restart
SRP-770II [Table 1] Dip Switch 1 Functions Details 4.0 ips Speed Selection 5.0 ips Density Density Selection Normal Mode Exhibition Selection Demo Mode Label Paper Media Selection Thermal Continuous Paper Without Auto Cuter Auto Cutter With Auto Cuter Back Feeding Enable... -
Page 17: Gap Sensor Auto-Calibration
SRP-770II 5-3 Gap Sensor Auto-Calibration Gap sensor auto-calibration is used when the printer does not detect a gap on the label paper correctly. Generally a printer is set to detect most of gap types but sometimes it fails to detect and keep feeding the paper without a stop when special paper used. -
Page 18: Gap Sensor Manual-Calibration
The utility can be obtained from the enclosed CD or downloaded from the Internet via the BIXOLON website www.samsungminiprinters.com Please make sure the printer is connected and execute the utility program. Press the Calibration Setting Manager button after setting the interface type. -
Page 19: The Peel-Off
SRP-770II 5-5 The Peel-Off This function is used to automatically separate labels from the liner. - The peeler is for Label Paper only. - When the peeler switch is on, labels are not printed if previous printed labels have been removed from the peeler. - Page 20 SRP-770II 3) Adjust the paper guides and close the cover. 4) Turn the printer off and back on. - 20 - Rev. 1.12...
-
Page 21: Using Fan-Fold Paper
SRP-770II 5-6 Using Fan-Fold Paper Insert paper through both the rear slot and guides. Adjust holders and guides to the width of the paper. 1) Open the Dust Cover and insert paper. Dust Cover 2) Adjust Paper Holders to the paper width 3) Adjust Paper Guides and close the and fixed Paper Holders with fixing tool. -
Page 22: Auto Cutter (Option)
SRP-770II 5-7 Auto Cutter (option) Auto cutter should be used for continuous paper only. ( i.e. roll paper) 1. Open the Dip switch cover, and make the switch 1 number 7 “On”. (Refer to printer mode setting at Chapter 5-1.) 2. -
Page 23: Cleaning Head
SRP-770II 6. Cleaning Head Paper dust on the heating elements may lower the printer quality. When dirty, clean the print head as follows: ※ CAUTION - Make sure to turn the printer power off prior to cleaning. - As the print head gets very hot during printing, if intending to clean the print head, turn the printer power off and wait approximately 10 minute before commencement. -
Page 24: Appendix
SRP-770II 7. Appendix 7-1 Specifications Item Description Printing Method Thermal Transfer / Direct Thermal Printing Dot Density 203 dpi (8 dot/mm) Printer Printing Width 25.4 ~ 104 mm Printing Speed 127 mm/sec Roll 38.1 ~ 106mm Paper Fan-Fold Type 41 ~ 112 mm... -
Page 25: Certification
• Europe: CE EMC,CB-Scheme:IEC60950-1, GS: EN60950-1: 2001 • North America: FCC rules parts 15B WARNING Use of an unprotected interface cable with this printer conflicts with EMC standards. Users should only use cables approved by BIXOLON. 2) CE Mark • EMC Directive 89/336/EEC EN55002:1994+A1:1995+A2:1997...
