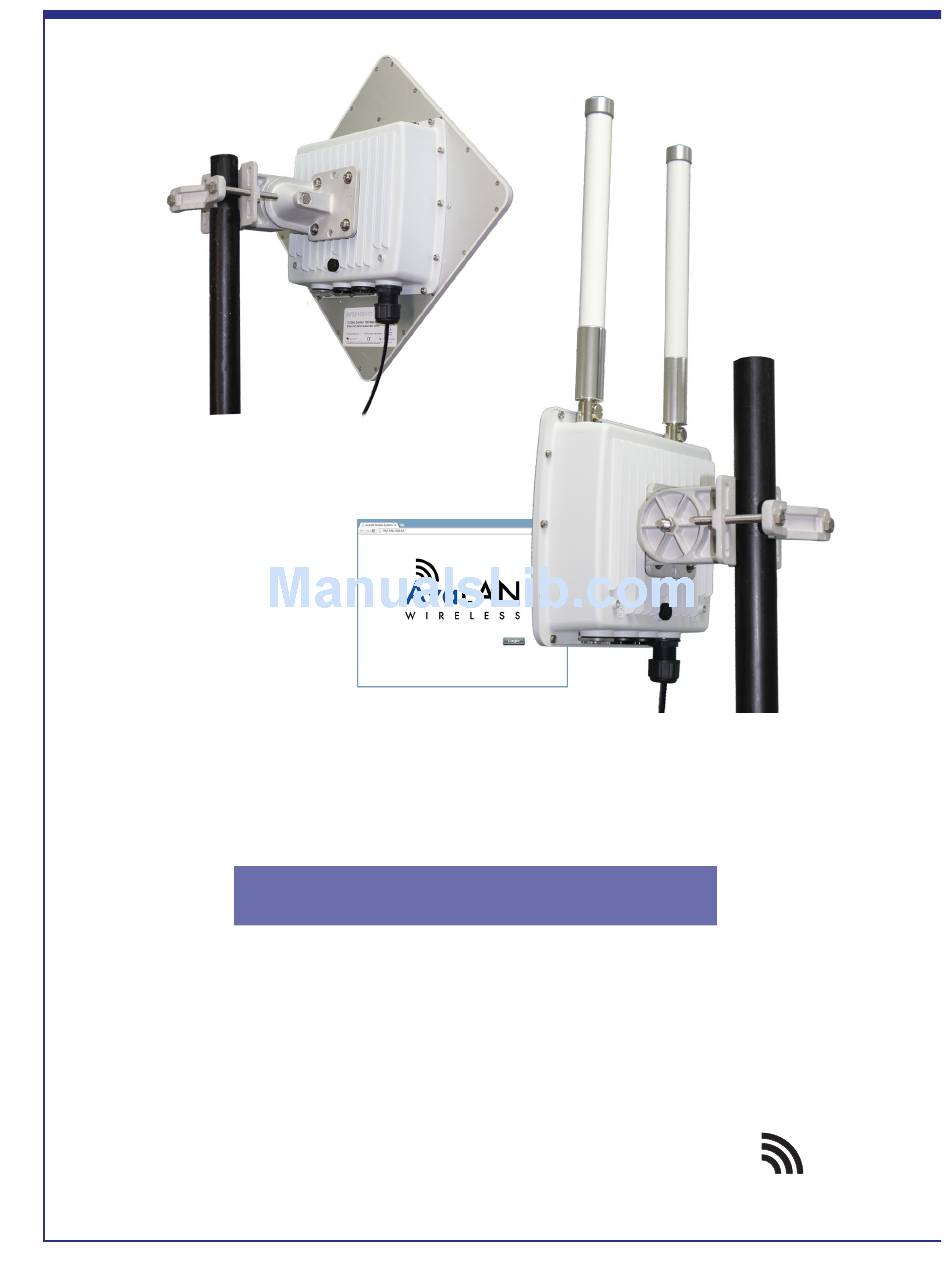

- Page 1 AW58800HTA AW58800HTS USER’S MANUAL 5.8 GHz Outdoor 800 Mbps Wireless Ethernet Access Point and Subscriber Unit Radios AvaLAN Industrial-grade, long-range wireless Ethernet systems...
-
Page 2: Table Of Contents
AW58800HTA, HTS User’s Manual The AW58800HTA is a radio with dual omnidirectional antennas. It serves as an Access Point (master) in a point-to-multipoint network. The AW58800HTS is a radio with a dual flat panel high gain directional antenna. Multiple AW58800HTS radios can serve as a Subscriber Units (clients) in conjunction with an AW58800HTA. -
Page 3: Quick Start Guide
AW58800HTA, HTS User’s Manual Quick Start Guide Step 1. Radios are Preconfigured out of the Box Step 2. Mount Radios Step 3. Align Radios Step 4. Attach Cables System Default: IP Address: 192.168.88.10 (Subscriber Unit) 192.168.88.12 (Access Point) Username: admin... - Page 4 AW58800HTA, HTS User’s Manual LED Status Information Access Point LED Guide Ethernet Wireless This light will blink when receiving data This light will blink when transmitting data The wireless status light blinks slowly when the product is powered Status and is lit solid when it has a successful wireless connection.
-
Page 5: Digital Configuration
3. The initial page after a successful login is “Quick Set.” The content of this page is somewhat dif- ferent for the AW58800HTA Access Point and for the AW58800HTS Subscriber Unit. 4. Each page provides a menu on the left to navigate from section to section. The menu looks like this when its sections are expanded: Beware that certain actions may cause the web page to freeze. -
Page 6: Changing The Configuration - Step By Step
In the event of a lost IP address, reboot the AW58800 to create a temporary IP address of 192.168.88.88 that can be used to access the radio to reset the user-defined IP address. This IP address expires after 3 minutes from reboot. In the event of a lost password, please contact AvaLAN technical support for assistance. - Page 7 AW58800HTA, HTS User’s Manual • On the Main Menu at the left side of the browser window, click “System”, then click “Password.” • Enter the old password and the new password twice in the boxes indicated. • Click the “Change” button.
-
Page 8: Viewing Status Information
User’s Manual Viewing Status Information After configuring your AvaLAN radios and establishing links among them, you can use the browser interface to view status and troubleshooting Information. The initial “Quick Set” page will show whether the wireless link is operating and the current signal strength. For more comprehensive infor- mation, choose “Wireless”... -
Page 9: Physical Setup
AW58800HTA, HTS User’s Manual Physical Setup 1. Mount each unit securely using the mounting brackets provided or other means as necessary. Maximize lightning resistance by providing a strong DC ground connection to the metal housing. A. Assemble both bracket arms using the Rotator Bolt, a Large Lock Washer and the Hex Nut. - Page 10 2. The AW58800HTS units have dual directional flat panel antennas. It is important that the AW58800HTS antennas be pointed toward their Access Point AW58800HTA. Care should be taken to align the AW58800HTS panel antenna to provide the best performance. The HTS antenna performs best when the panel’s face is aligned toward its partner.
-
Page 11: Troubleshooting
AW58800HTA, HTS User’s Manual A. Connect the opposite end of your Ethernet cable to the Power over Ethernet Injector, and the RJ45 tail of the PoE to your network. B. Connect the PoE to your 24VDC Power Supply and it to a standard 120VAC outlet. -
Page 12: Technical Specifications
CHARACTERISTIC SPECIFICATION/DESCRIPTION RF transmission rate 866 Mbps Ethernet data rate Up to 540 Mbps Output power AW58800HTA 4 Watts EIRP with 9 dBi omnidirectional antenna Access Point Output power AW58800HTS 4 Watts EIRP with 23 dBi directional antenna Subscriber Unit... -
Page 13: Frequency Channels
This product is warranted to the original purchaser for normal use for a period of 360 days from the date of purchase. If a defect covered under this warranty occurs, AvaLAN will repair or replace the defective part, at its option, at no cost. This warranty does not cover defects resulting from misuse or modification of the product.
