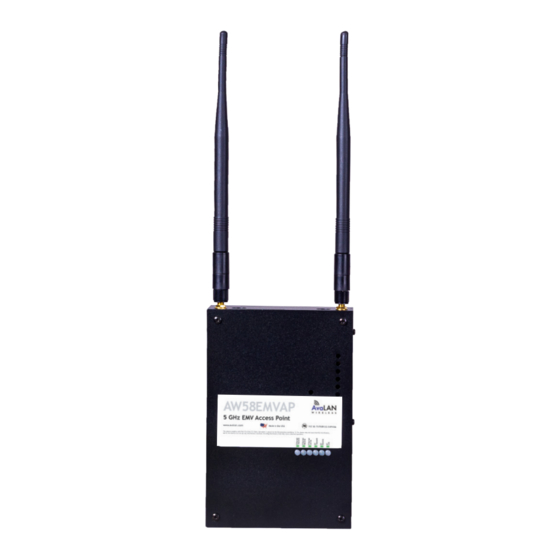

AvaLAN AW58EMVAP User Manual

Wireless forecourt access point and wireless in-dispenser unit with network switch
Hide thumbs Also See for AW58EMVAP:
Table of Contents

Advertisement

Quick Links

AW58EMVAP
AW584EMVSU
USER'S MANUAL
Wireless Forecourt Access Point and
Wireless In-Dispenser Unit
With Network Switch
AvaLAN
®
N
E
T
W
O
R
K
S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AW58EMVAP and is the answer not in the manual?

Questions and answers

Related Manuals for AvaLAN AW58EMVAP

Summary of Contents for AvaLAN AW58EMVAP

  • Page 1 AW58EMVAP AW584EMVSU USER’S MANUAL Wireless Forecourt Access Point and Wireless In-Dispenser Unit With Network Switch AvaLAN ®...
  • Page 2 Instructions within this manual may call for the removal and disposal of parts that presently make up the dispenser.Whenever removing or discarding any part from the dispenser, those parts should be properly disposed of or recucled according to Federal, State, and Local regulations. AvaLAN always recommends that parts not under disposal regulations be recycled whenever possible.
  • Page 3 AW58EMVAP | AW584EMVSU User’s Manual INDICATORS AND NOTATIONS Danger indicates a hazard or unsafe practice which, if not avoided, will result in severe injury or possibly death. Warning indicates a hazard or unsafe practice which, if not avoided, may result in severe injury or possibly death.

  • Page 4: Table Of Contents

    AW58EMVAP | AW584EMVSU User’s Manual Table of Contents UNPACKING AND INSPECTION ........... 5 SAFETY INFORMATION ............5 INSTALLATION LOCATION ............6 CONFORMITY AND STANDARDS ..........7 REQUIRED TOOLS AND PARTS ........... 7 INSTALLATION BEST PRACTICES ..........8 WHAT’S IN THE BOX ............. 9 IN-DISPENSER INSTALLATION PROCEDURE ........10...

  • Page 5: Unpacking And Inspection

    AW58EMVAP | AW584EMVSU User’s Manual Unpacking and Inspection Complete the following steps: 1. Before opening any cartons, count the number of cartons and verify the carton count against the supplied packing list. 2. Inspect the cartons for damage made during transit.

  • Page 6: Installation Location

    Care should be taken to ensure that the temperature does not exceed the operational ranges of -40°C to 70°C (-40°F to 158°F). Power Requirements The DC power source to the AW58EMVAP device must have an input voltage of 24VDC. Figure 1A Figure 1B Installation Location for Subscriber Units Equipment may be installed in a variety of locations;...

  • Page 7: Conformity And Standards

    Using other cables will void your warranty. Emergency Stop Circuit It is recommended that the electrical wiring for the AvaLAN AW584EMVSU be run through the Emergency Stop circuit at the site so that all electrical power is cut whenever the Emergency Stop button is pressed.

  • Page 8: Installation Best Practices

    AW58EMVAP | AW584EMVSU User’s Manual Installation Best Practices Figure 2 INSTALLATION NOTES: 1) Installation and use shall be in accordance with the Flammable and Combustible Liquids Code, NFPA 30 2) This device will connect to the Fuel Dispenser’s 24VDC power panel 3) The cables provided with the product shall be reliably routed separate (>2 inches) from...

  • Page 9: What's In The Box

    AW58EMVAP | AW584EMVSU User’s Manual What’s in the Box AW584EMVSU AW584EMVSU Radio Quick Disconnect Bracket Gilbarco Omni Adapter Gilbarco Classic Adapter USB Key Mounting Adhesive 5ft CAT5 Cable Universal Power cable with no adapters (Wayne style connector) AW58EMVAP AW58EMVAP Radio...

  • Page 10: In-Dispenser Installation Procedure

    AW58EMVAP | AW584EMVSU User’s Manual In-Dispenser Installation Procedure When possible, mount the AW584EMVSU with access to the wiring trough where the dispenser communication wires are located. DANGER: Keep a minimum of 3” clearance between the radio (including from the antenna) and any other equipment.

  • Page 11: In-Store Installation Procedure

    AW58EMVAP | AW584EMVSU User’s Manual In-Store Installation Procedure MOUNTING THE AW58EMVAP (INDOOR UNIT) ___ 1. Mounting Options: A. Remove the white backing of the supplied adhesive and attach to the back of the quick disconnect bracket (the lip will be facing away from you).

  • Page 12: Omnia Installation For Flex Pay Iv

    AW58EMVAP | AW584EMVSU User’s Manual Omnia Installation for Flex Pay IV Step 1) Connect the provided Gilbarco Omnia Adapter to the Universal Power cable . Step 2) Cut one side of the provided CAT5 cable coming from the In-Dispenser radio.

  • Page 13: Load Balancing Access Points

    Load Balancing Access Points With a file provided by AvaLAN engineering, a user can (via USB keying) set up redundant access points as well as set new encryption keys and channel setting instructions. In this process, the user is able to create two AP’s with the same keys and therefore load balance and auto-failover is enabled.
