Summary of Contents for Nakamichi NA1600

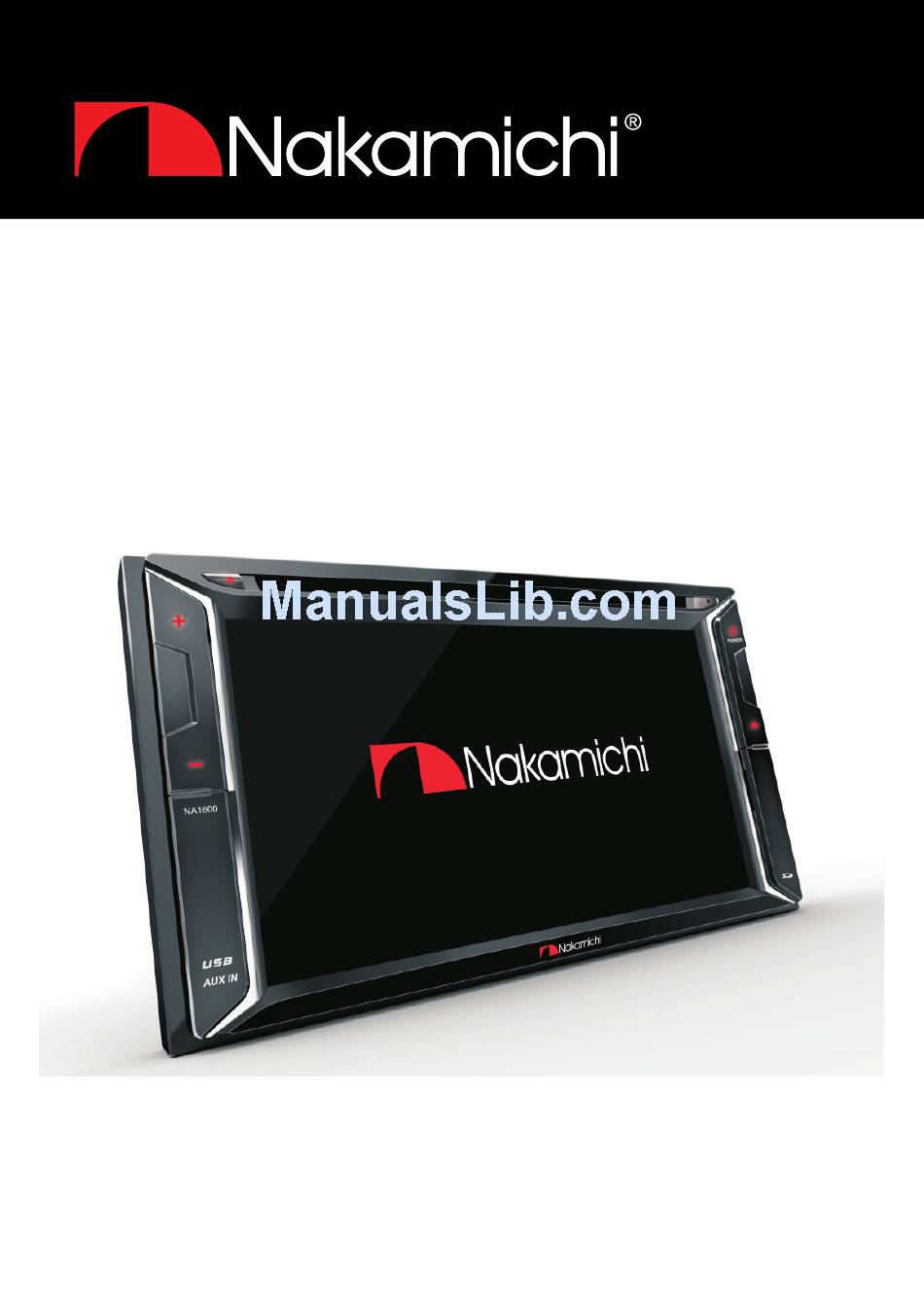

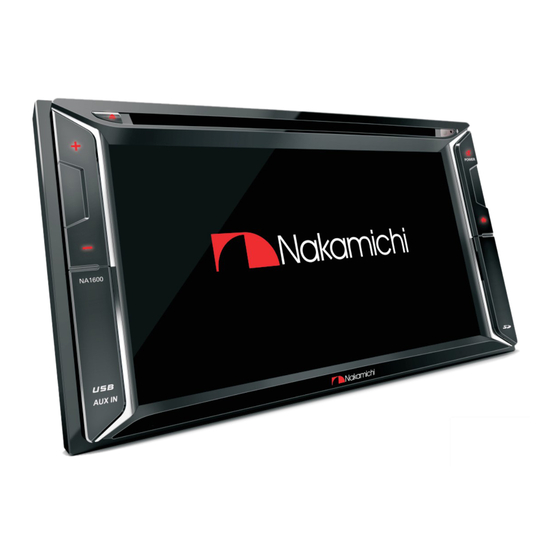

- Page 1 NA1600 AV Media Receiver User Manual Enjoy the Lifestyle of In-Car Entertainment...
-
Page 2: Table Of Contents
CONTENTS Contents Thank you for purchasing a Nakamichi products. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. INTRODUCTIONS Overview the unit ................Get Started ..................Basic operations ................ -
Page 3: Introductions
INTRODUCTIONS Overview the unit Eject Increase Power Hold: Volume Mute Press: Decrease HOME Volume Reset Reset Media Socket SD Card Socket Aux In Socket Power Mute Dimmer Adjust the function List browser Up/Down Volume level Home Confirm Return/Exit Tune for radio station Setting menu Skip/search for track Fast backward/forward playback... -
Page 4: Get Started
INTRODUCTIONS Get started Please select the suitable Language & country/region for this unit, otherwirse the unit can not work properly. Press this button to power On the unit, The available OSD are displayed. Tap to select suitable a language Tap to select suitable a country /region Initial Se ttings Ra dio Ar ea... -
Page 5: Basic Operations
INTRODUCTIONS Basic operations Access to HOME 03:38 PM Tap to MUTE Access to CLOCK 2013 Audio Control Adjust the dimmer level B A S S Access to Setup Menu Access to system settings Access to General settings... -
Page 6: Av Media
AV MEDIA Listening to the radio Tap on button on the TFT Tap on button into the screen access into the tuner Tuner Function menu. function. Press to AUTO SEEK Press and hold to MANUAL SEEK Tap BAND to change to FM or AM Tap to Auto Store Press and hold to Store stations Preset List... - Page 7 AV MEDIA Playing of Music Tap UP/DOWN Tap PLAY/PAUSE Adjust the different REPEAT mode Quick Browser...
-
Page 8: Usb Smart Phone 1A Charge
AV MEDIA USB Smart Phone 1A Charge This unit can support USB Samrt Phone 1A Charge. Open the USB Socket cover to left. Insert the iPhone or Smart Phone device into the USB socket. Once is recognized, the iPhone or Smart Phone begins to charge. Andriod iPhone USB Cable (Not included) -
Page 9: Enjoying The Movie
AV MEDIA Enjoying the movie T:2/5 C:1/20 Pause 00:01:10 / 00:04:32 Home menu Change function bar Previous, Pause / Play, Next Media function menu. access to system menu Top Menu or Browser Select the audio type. (For DVD-VR: Select the audio channel) Repeat playback mode Access into the search mode (DVD only). -
Page 10: Viewing The Photo
AV MEDIA Viewing the photo Photo 1/20 Photo 1/20 Change function bar Top Menu or Browser Move left the zooming frame Move up the zooming frame Move down the zooming frame Move right the zooming frame Zoom the photo... -
Page 11: Audio Adjustment
AUDIO ADJUSTMENT Speaker/Subwoofer Access to System Menu Access to Audio Menu Speaker settings Adjust Fader/Balance Value From -12 to +12 SUB-WOOFER settings Touch to turn On / Off the subwoofer Tap on buttons to adjust value of subwoofer level. Low Pass Filter Transfer Subwoofer Function 160Hz... -
Page 12: Equalizer
AUDIO ADJUSTMENT Equalizer 6 Preset EQUALIZER Reset User Rock Classic Jazz Volcal Tap on button to adjust the level: [BASS]: bass level range -15dB to +15dB. BASS +12dB [MIDDLE]: middle level range -15dB to +15dB. MIDDLE [TREBLE]: treble level range -15dB to +15dB. -2dB TREBLE BASS... -
Page 13: Bluetooth Using Bluetooth
BLUETOOTH Using bluetooth How to pair & connect device ? 0 0 0 0 NAKAMICHI Pairing code "0000" Connecting Making A Call Calling... 0860101872903 Call Transfer Calling... 0860101872903 Ca ll Transfer to Ce llphone ! -
Page 14: External Box
External Box Mirror Phone/Analog TV/DVBT Box This unit can support connecting the External box: Mirror Phone Box / Analog TV Box / DVBT Box. TIPS Before operating the External Box function, please go to Setup Menu to select proper type of the external box. Access to Setup Menu Access to System Menu To select proper type mode... -
Page 15: Reference Specifications
REFERENCE Specifications TFT Monitor section Radio section Screen Size Frequency FM range : 87.9 - 107.9 MHz :6.2 inches Display Resolution :800x480 dots Frequency AM(MW) range : 530-1710 KHz :500 Contrast Ratio Usable sensitivity : 2 uV ( : 80 uV (AM)(MW) Disc player section Video section Disc System... - Page 16 Design and specifications are subject to change without notice 2015 Nakamichi www.nakamichicaraudio.com...
