Summary of Contents for Crossfire C3-500D

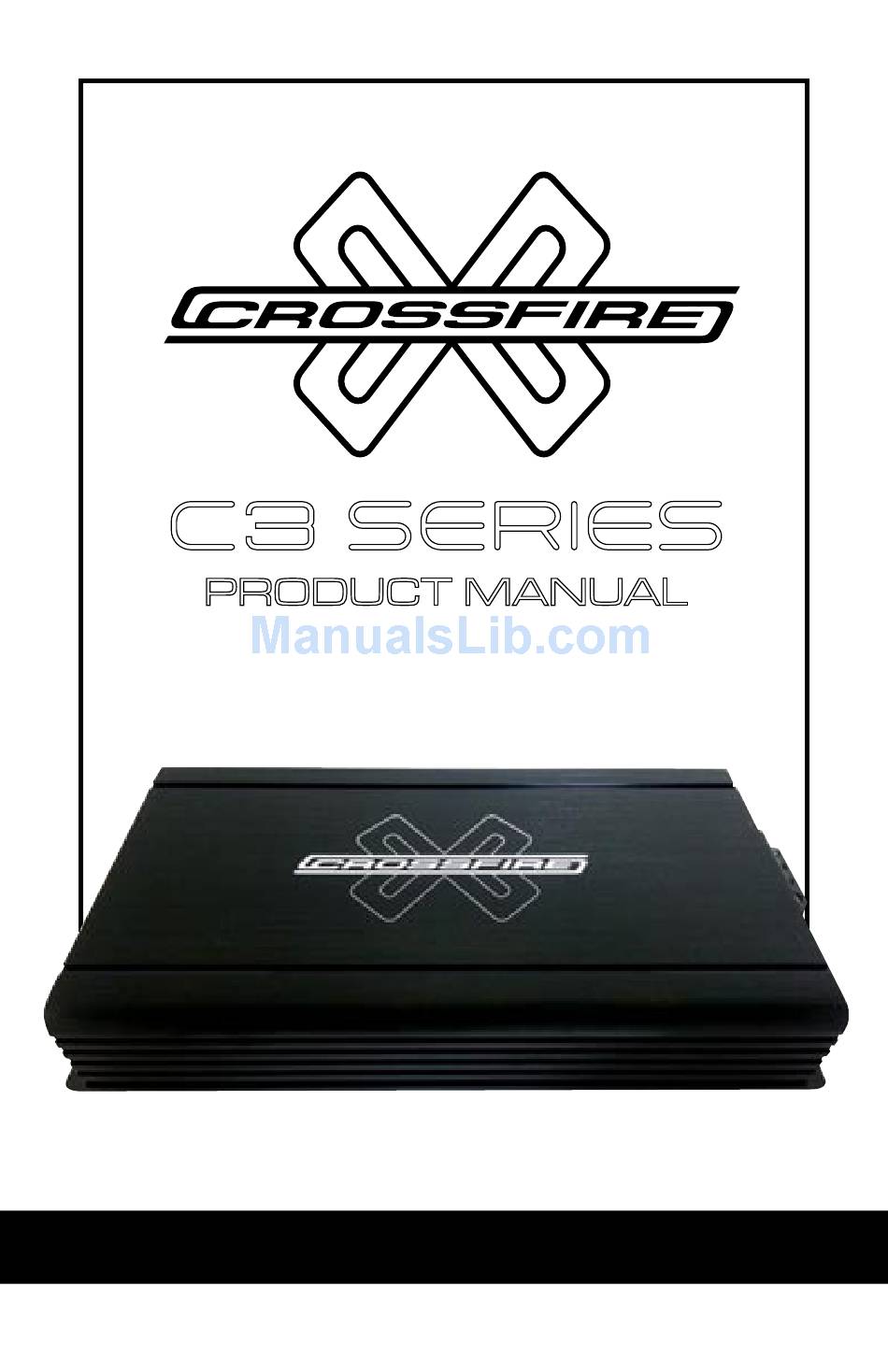

- Page 1 C3 SERIES PRODUCT MANUAL C3-500D | C3-604...
- Page 2 Heat Sink Size L X W X H 8.2” X 6.6” X 2” 11.5” X 6.6” X 2” The C3-500D is not equipped with an internal fuse in itself. Make sure you install in-line fuse holder from the Positive ( + ) terminal of battery. Page 2...
- Page 3 SYSTEM WIRING 4 CH. SYSTEM WIRING 3 CH. STEREO CONFIGURATION STEREO CONFIGURATION c 3 - 6 04 2~8 Ohm 2~8 Ohm CROSSFIRE mixbox BAND 4~8 Ohm SYSTEM WIRING DUAL BRIDGED MONO CONFIGURATION 4~8 Ohm 2~8 Ohm 2~8 Ohm 2~8 Ohm...
- Page 4 TROUBLESHOOTING CROSSFIRE LIMITED WARRANTY Before removing your amplifier, refer to the list below and follow the suggested procedures. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. Always test the speakers and their wires first.
- Page 5 3247 Story Rd West, Irving TX 75038 Ph: (972) 570-0800 | Fax: (972) 570-2200 www.crossfirecaraudio.com...
