Crossfire BMF602 Installation Manual

Vr amplifier

Advertisement

VR
VR
Amplifier
Installation Manual
Models: BMF602, BMF1252, BMF2002, BMF754

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BMF602 and is the answer not in the manual?

Questions and answers

Summary of Contents for Crossfire BMF602

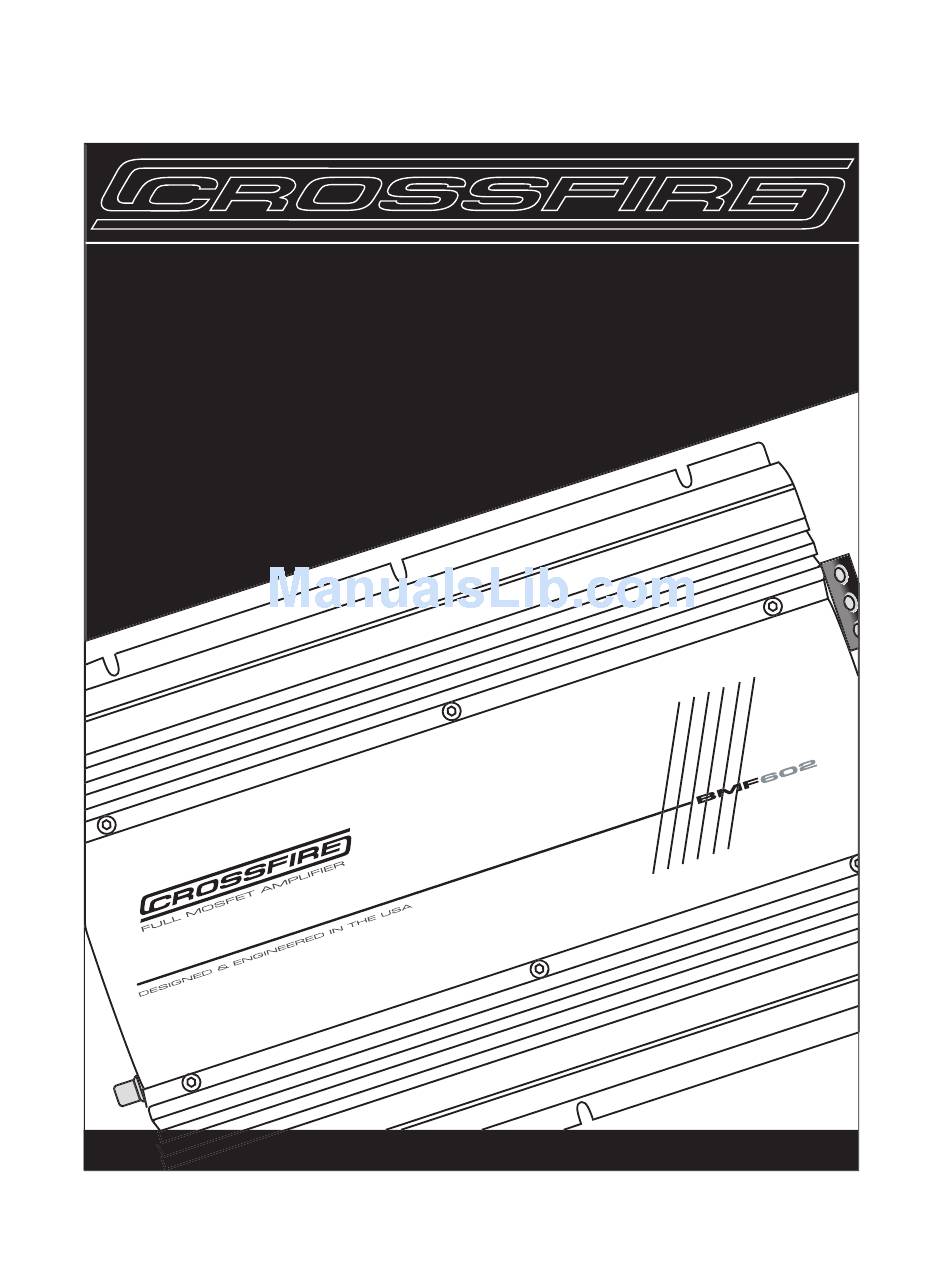

  • Page 1 Amplifier Installation Manual Models: BMF602, BMF1252, BMF2002, BMF754...
  • Page 2 For your records, Crossfire recommends keeping the model and serial number of your new Crossfire ampifier. This could possibly help you recover your ampifier in the event of a theft. Use the following spaces to do so and make sure to keep you manual in a safe place.
  • Page 3 for choosing Cr Thank y ou and congratulations Car A udio for your amplification needs. Cr amplifiers have been significantly improved throughout the years to assure quality and reliability. Our goal is to incorporate the latest technology into every Cr product providing you with incredible power and unparalleled sound quality.
  • Page 4: Specifications

    Bridg eab le 5 W ay Pr otection Cir cuitr cuitr Tw o Year Limited W arranty Specifications MODEL: BMF602 BMF1252 BMF2002 BMF754 RMS Power/4 ohms 60w x 2 125w x 2 200w x 2 75w x 4 Bridge Power, Max...
  • Page 5: Operation

    The quality of installation may affect the performance and reliability of your Crossfire product. If you have any doubts or questions regarding installation, you may wish to contact your authorized Crossfire dealer. Remember to follow all wire and fuse requirements suggested in this manual. Warranty may void if proper installation technique is not used (refer to warranty section in the rear of this manual).
  • Page 6: Incorrect Mounting

    (HZ) P ower Connections All Crossfire amplifiers are designed to work within 10.5 to 16 volts DC. Therefore, as a precaution the vehicle's electrical system should be checked for correct voltage supply with the help of a voltmeter. First, connect the test leads of the voltmeter to the battery terminals with the ignition of the vehicle in the off position.
  • Page 7 The proper wire size is very important for an amplifier capable of these power levels. The following are the recommended fuse values and wire gauge for lengths up to 20ft. Model Wire Fuse BMF602 10awg. 25amp BMF1252 8awg. 50amp BMF2002...
  • Page 8: Speaker Outputs

    Please note that if you are installing multiple high power amplifiers into the vehicle, you must upgrade the ground strap from the battery to the frame and the frame to the body of the vehicle. Use the following directions to help aid with the ground connections.
  • Page 9: Stereo Operation

    To connect the wire to the speaker, strip off approximately ½" (12mm) of the insulation and terminate the wires using insulated speaker terminals (not supplied) or by soldering the connection to the loudspeaker. Be sure that the polarity at the loudspeaker is correct. Stereo Operation MODELS BMF602 BMF1252 FUSE BMF2002 BRIDGED POWER...
  • Page 10: Bridg Ed Operation

    Bridg ed Operation MODELS BMF602 FUSE BMF1252 BMF2002 BRIDGED POWER SPEAKER MODEL FUSE FUSE BMF754 BRIDGED BRIDGED REAR FRONT POWER SPEAKER SPEAKER Stereo/Mono Operation MODELS BMF602 FUSE BMF1252 BMF2002 BRIDGED POWER SPEAKER MODEL FUSE FUSE BMF754 BRIDGED BRIDGED REAR FRONT...
  • Page 11: Line Level Inputs

    Connecting the W ires At this point, the power, ground and remote wires should be run to the general location of where the amplifier is to be mounted. If the wires are to be hidden under the carpet, you now need to cut a slit for them to come through. To do this, place the amplifier in the location it is to be mounted to verify where the cuts need to be made.
  • Page 12 Preamp F eatures The Crossfire BMF MOSFET amplifiers have a powerful preamp section located on the panel opposite the power terminals. Included in this preamp section is a fully adjustable Two Way Crossover for the amplifier, Preamp Output, and the ACS circuit.
  • Page 14: System Configurations

    Crossover points should be chosen per the speaker application. For further help, please contact your local Crossfire dealer or Crossfire's Technical assistance at 562-906-0800. TWO WAY SYSTEM (optional rear amp) 2 Ch. amps...

This manual is also suitable for:

Bmf1252Bmf2002Bmf754
