- Page 1 7” Rugged Tablet Computer -TB120- User’s Manual 401161G Version 1.0 © 2015 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
-
Page 2: Table Of Contents
Table of content Table of content........................2 1. Package Contents ........................ 3 2. Getting started........................4 2.1 Device overview........................ 4 Physical keyboard overview ....................6 2.2 Assembly .......................... 7 Accessing battery, Micro SD card and SIM card ..............7 2.3 Charging the battery ......................9 2.4 Data Communicating with PC Device ................ -
Page 3: Package Contents
1. Package Contents USB cable TB120 (Standard USB to Micro USB) Power adapter Battery Utility DVD Hand Strap... -
Page 4: Getting Started

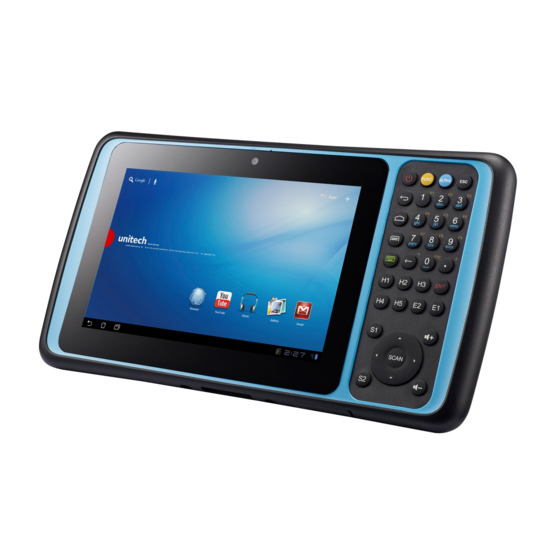

2. Getting started Unitech TB120 is an Android platform device. Android platform device has great flexibility that allows you to make customized configurations and enhancements by install and remove Apps. With Android operation system, your device has limitless possibilities to update to latest features and improvements. - Page 5 11. 12. 11. Micro USB port 12. DC-IN port 13. Earphone jack 14. Cradle connector 15. Bar code Scan Engine...
-
Page 6: Physical Keyboard Overview
Physical keyboard overview 13. 14. 1. Power on/off key 8. Escape key 2. Android BACK key 9. Alpha/Numeric keys 3. Android HOME key 10. Enter key 4. Android APP List key 11. H.E.S. keys (programable) 5. Soft keypad on/off key 12. -
Page 7: Assembly
2.2 Assembly Accessing battery, Micro SD card and SIM card 1. Using a proper tool (ex. a coin) to loosen the two screws on the battery cover by turning anticlockwise. 2. Remove the back cover and pull the battery out. 3. - Page 8 Put battery back to TB120 1. Using a proper tool (ex. a coin) to loosen the two screws on the battery cover by turning anticlockwise. 2. Put battery into battery compartment and put back cover. 3. Lock the two screws on the battery cover by turning clockwise.
-
Page 9: Charging The Battery
2.3 Charging the battery Connect TB120 to the charger, it will be charged automatically. 1. Plug the power adapter into the DC-IN port at the bottom. 2.. Plug the power adapter into a wall outlet. If needed, attach a plug converter onto the power... -
Page 10: Data Communicating With Pc Device
2.4 Data Communicating with PC Device 1. Connect the standard USB connector to the USB port of the PC device. 2. Connect the micro USB connector to the micro USB port at the bottom. 2.5 LED status Green The battery is fully charged Lights Red The battery is charging. -
Page 11: To Check The Battery Level And To Access The Battery Usage Menu
2.6 To check the battery level and to access the battery usage menu 1. From your Home screen, tap 2. Find and tap Settings. 3. Find and tap Battery. -
Page 12: Basic Operation
3. Basic Operation 3.1 Accessing and using applications To open the Application screen From your Home screen, tap To browse the Application screen From the Application screen, flick right or left. To create a shortcut to an application on the Home screen 1. -
Page 13: Barcode Scanning (For Imager Version Only)
3.2 Barcode Scanning (For Imager Version only) 1. Tap the ScanService 2. Aim the Bar code Scan Engine to the barcode and press one of two trigger buttons. -
Page 15: Specification
4. Specification Features Android 4.3 Ultra-Rugged Construction: IP65 rated, 1.2M drop and MIL-STD-810G certified Lightweight and compact design: Only 735g with 1D engine and battery Large 7-inch color multi-touch sunlight-readable display Built in 1D / 2D scanner, keypad, and 5 Megapixel camera Latest Bluetooth v4.0, GPS, Wi-Fi and wireless LAN 802.11 a/b/g/n quad-mode radios Swappable Battery: 5200mAh Li-ion battery pack System Features... - Page 16 External storage Support MicroSD memory card up to 32GB USB 2.0 OTG WLAN IEEE 802.11 a/b/g/n Bluetooth Bluetooth 4.0 with Bluetooth SIG certification WWAN GSM/GPRS/EDGE 850/900/1800/1900 MHzUMTS 850/900/1700/1900/2100 MHz WCDMA modem, HSPA+, DL: 21Mbps/ UL: 5.76Mbps. GPS supports MS-assisted, MS-based and autonomous operation modes Other Sensors eCompass...
-
Page 17: Regulatory Compliance Statements
Regulatory Compliance Statements FCC Warning Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference with radio communications. -
Page 18: Canadian Compliance Statement
FCC Label Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. - Page 19 Laser Information The Unitech TB120 series is certified in the U.S. to conform to the requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of IEC 825-1. Class II and Class 2 products are not considered to be hazardous. The PA692 series contains internally a Visible Laser Diode (VLD) whose emissions do not exceed the maximum limits as set forth in the above regulations.
-
Page 20: Battery Information
Battery Information CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTION Hearing Damage Warning CAUTION...
